Front Knuckle Lock Nut, 7075 for Kraton Outcast V6 - Hot Racing

About this part

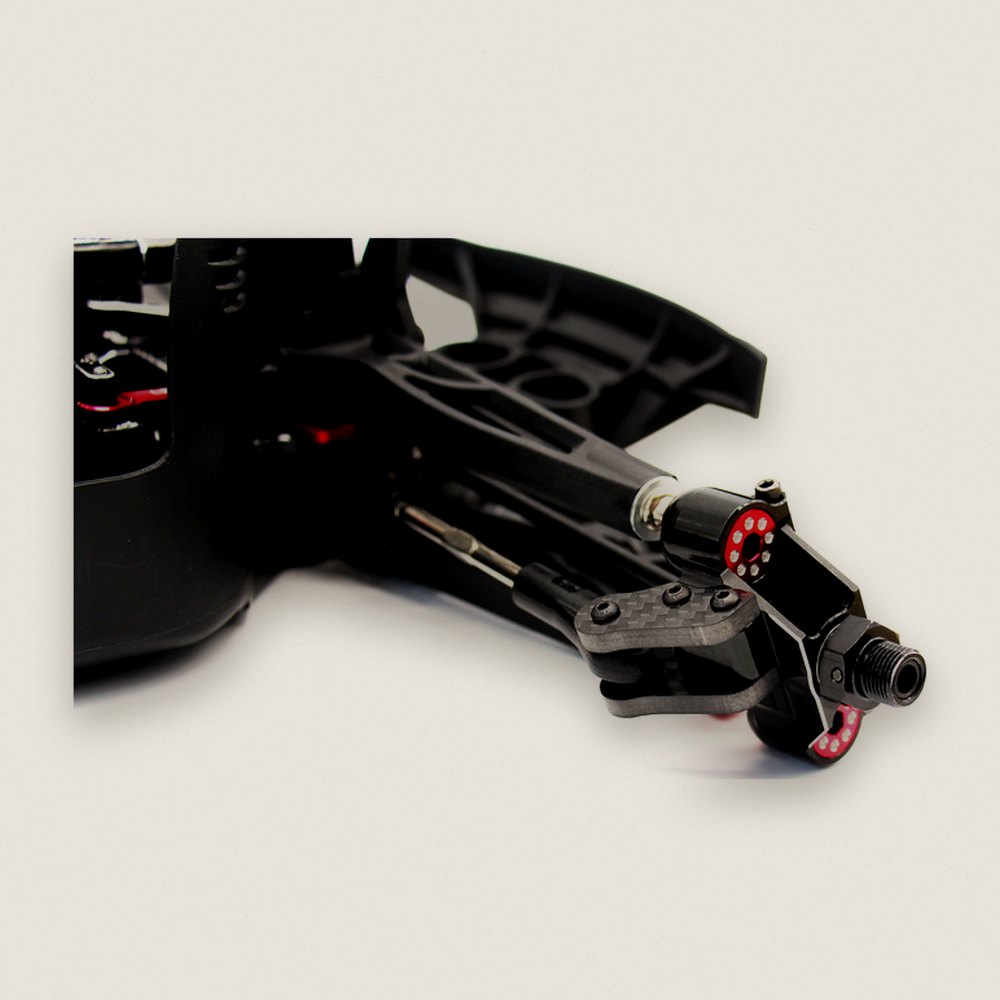

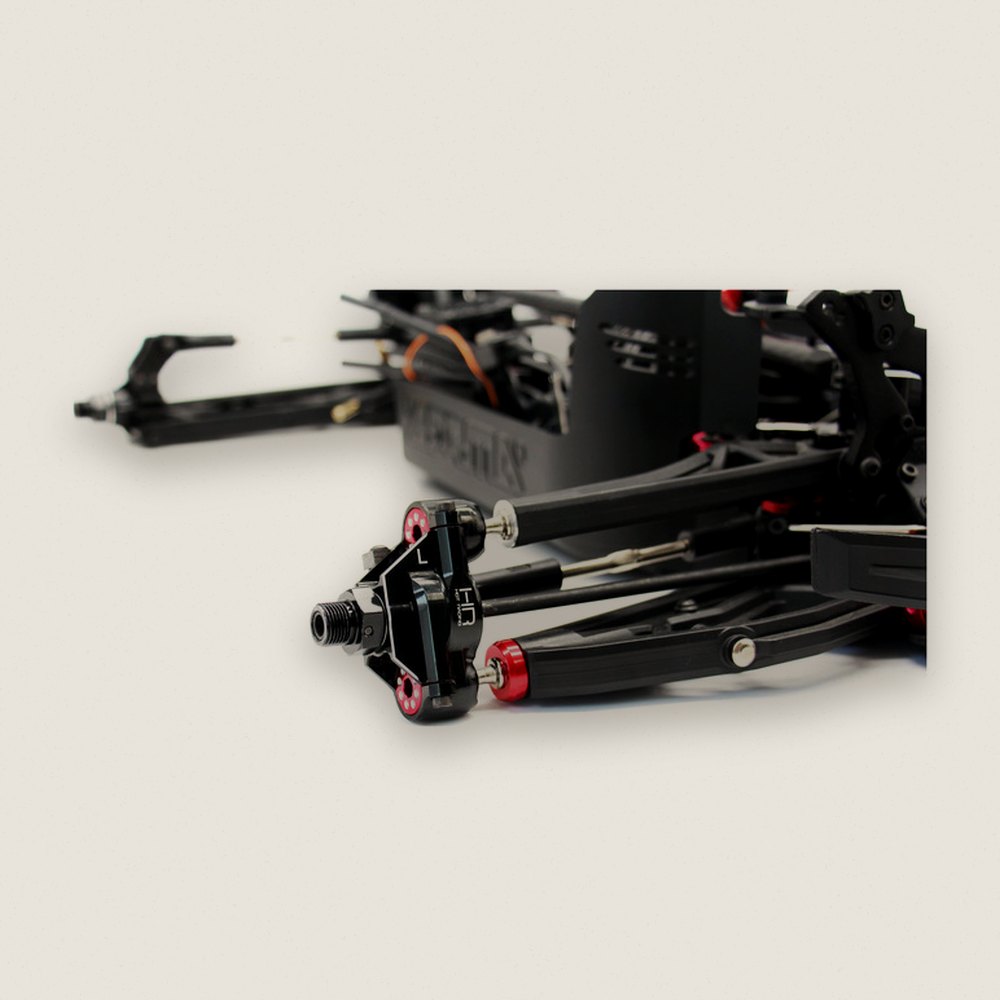

Hot Racing 7075 heavy duty aluminum steering blocks. These are the axle carriers, so they take the abuse when you send it.

Features

• CNC machined 7075 aluminum, anodized black.
• 4mm carbon steering arms.
• Clamping position locks the hub nuts.
• Heavy duty rubber sealed bearings.
• IN THE BOX:
• One (1) left aluminum axle carrier with carbon fiber steering arms
• One (1) right aluminum axle carrier with carbon fiber steering arms
• Four (4) aluminum hub nuts
• Two (2) 8x16x5mm rubber shielded outer bearings
• Two (2) 15x25x5mm rubber shielded inner bearings

Requirements

• 5mm hex wrench.
• Medium thread lock recommended on the screws.

Specifications

• Weight: 53g per steering block
• REPLACES:
• Arrma AR330403, ARA-1507, AR330505 and ARA1507 front steering blocks.
• DOES NOT FIT:
• Vehicles that use Arrma AR330187.
• REPLACEMENT PARTS INCLUDED:
• Hot Racing AON21G (CF arms) and AON21N02 (hub nuts).
• FITS:
• Arrma 1/8 4x4 Kraton BLX 6S
• Arrma 1/8 4x4 Kraton BLX 6S V5
• Arrma 1/8 4x4 Notorious 6S
• Arrma 1/8 4x4 Outcast 6S BLX V5
• Arrma 1/8 4x4 Outcast 8S BLX V5
• Arrma 1/8 4x4 Outcast BLX 6S

Fits

Replaces stock part
