Raw Steel 1.9 Beadlock Wheels, 6-Lug Wagon, 12mm Hex (4) - Hot Racing

About this part

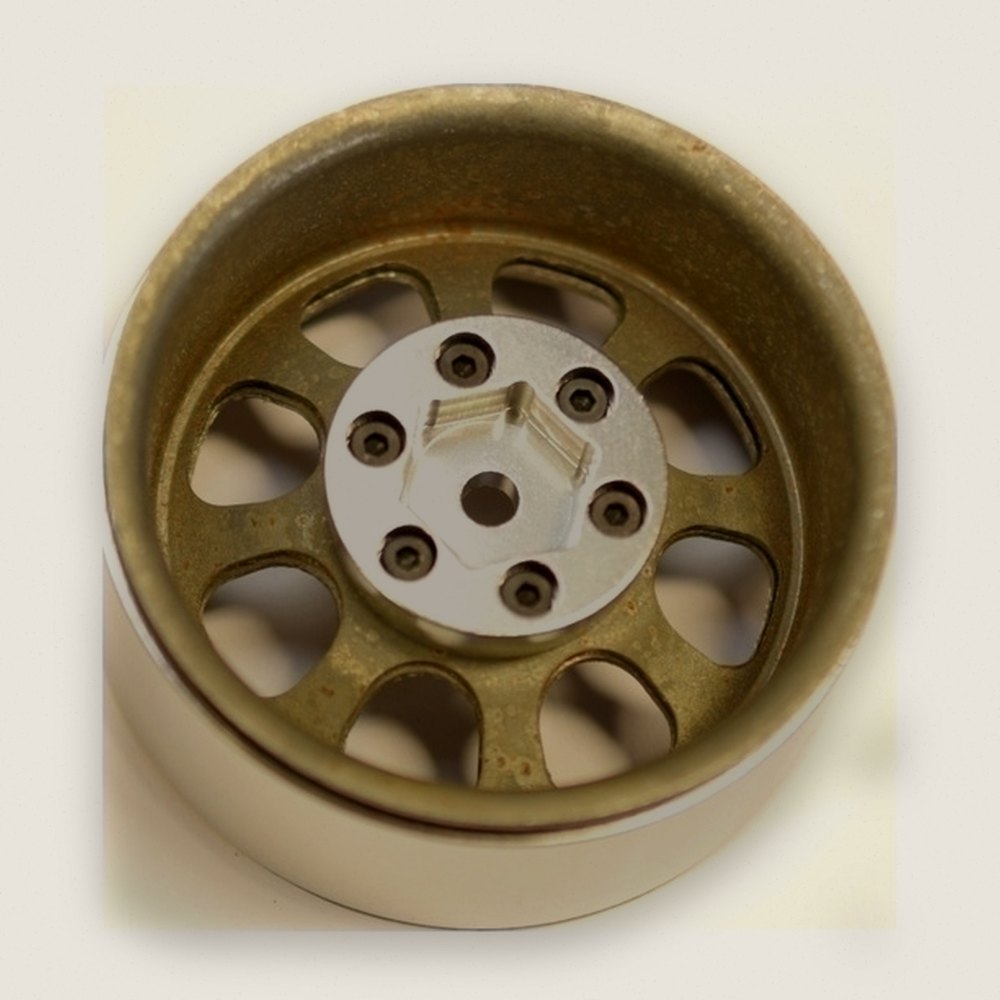

Hot Racing's raw steel 1.9 six-lug wagon wheels come uncoated, with 12mm hex hubs. The stamped steel design uses a three-piece beadlock, so no glue, and you can swap tires or foams without losing the glue or buying new rims. The 66g wheels add weight low for traction and stability. Scale-looking valve stem detail and an aluminum inner beadlock ring round it out. FITS: Tamiya Hummer Tamiya F-150/S-10 Tamiya Hi-Lift: F350 Tundra HiLux Axial AX-10 Scorpion Crawler Tamiya CR-01 Crawler FJ40 Losi 1:18 Mini-Rock Crawler RTR WHAT YOU GET: Four steel beadlock wheels

Requirements

• 1.9 tires and foams, installation, 1.5mm hex wrench, 4mm nut driver or socket, medium thread lock for hub bolts

Note

• Center hole is 4.3mm for an M4 threaded axle. If the axle protrudes larger, drill out the hub holes.

Specifications

• Hub: 12mm hex
• For 1.9in tires
• Outer rim lip diameter: 53.5mm
• Inside rim diameter: 47mm
• Weight: 66g each
• Width (outside bead to outside bead): 25mm
• Backspacing: 10.5mm
• Screws: M2x10mm
• REPLACEMENT:
• BLWS201 (black M2x10mm) or BLWS208 (chrome M2x10mm)
• OTHER STYLES:
• BLW19H38 (white 5-lug 8-hole pin hub)
• BLW19HS01 (black 6-lug 8-hole 12mm hex hub)
• BLW19SS01 (black 6-lug wagon)
