Raw Steel 2.2 Beadlock Wheels, 6-Lug 8-Hole, 12mm Hex (4) - Hot Racing

About this part

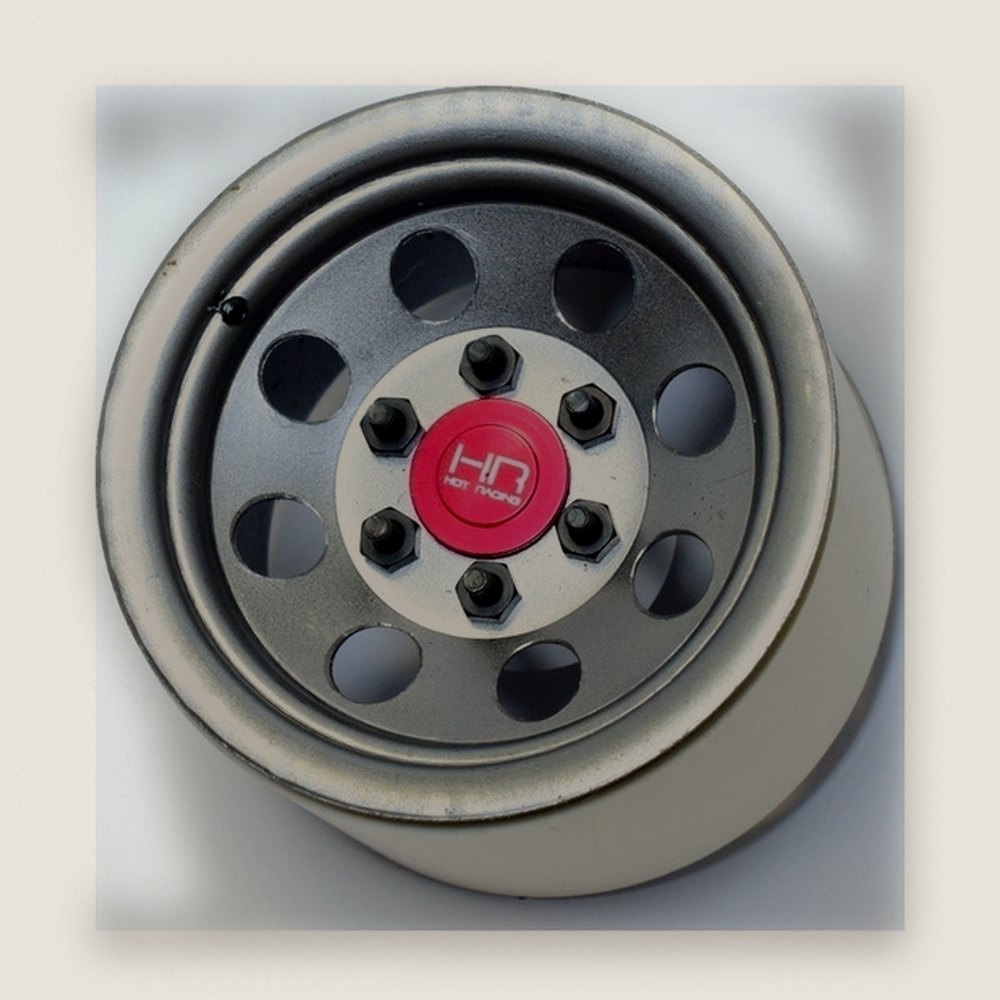

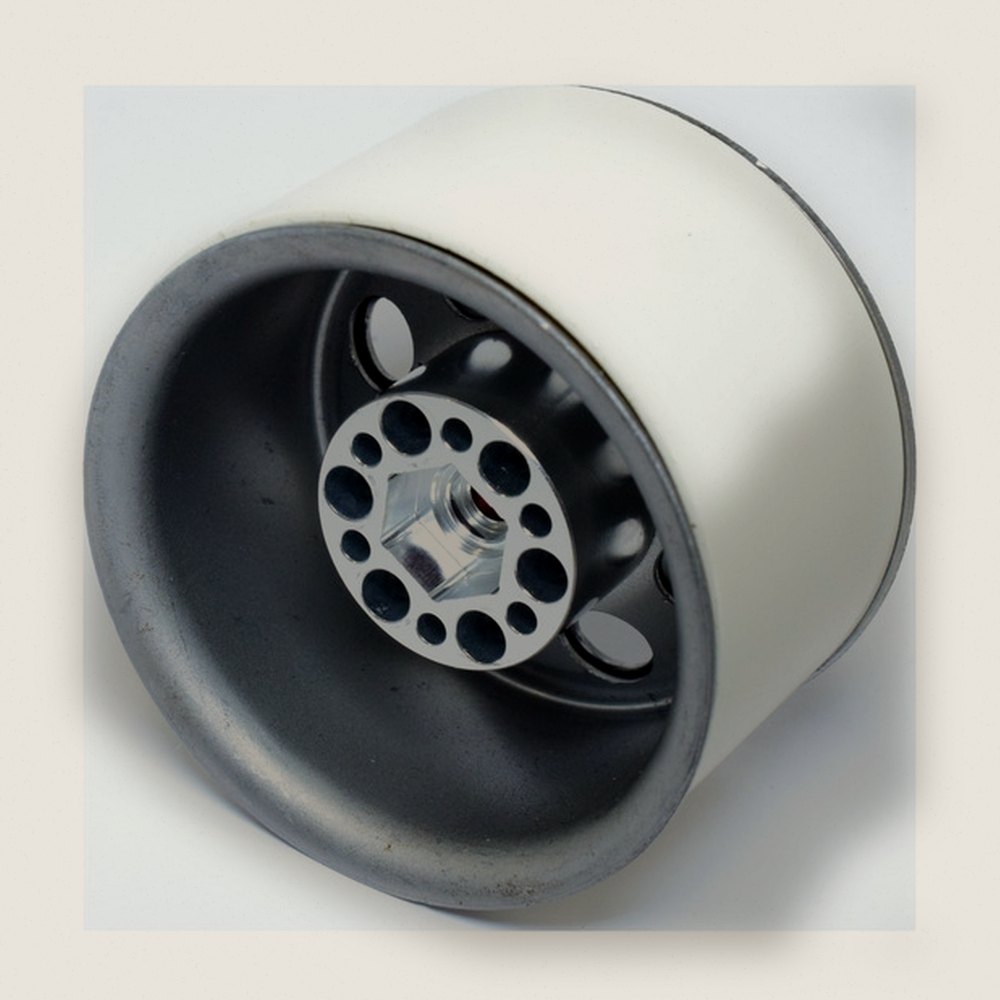

Hot Racing's raw steel 2.2 six-lug, eight-hole wagon wheels come uncoated, with 12mm hex hubs. The stamped steel design uses a three-piece beadlock, so no glue, and you can swap tires or foams without losing the glue or buying new rims. The wheels are heavy, which adds weight low for traction and stability. CNC 6061 aluminum hubs and a scale valve stem detail round it out. FITS: Axial AX-10 Ridgecrest Crawler Axial AX-10 Scorpion Crawler Axial SCX-10 II Axial SCX-10 II Deadbolt Axial SCX-10 II RTR Axial SCX-10 Scale Truck WHAT YOU GET: Four steel beadlock wheels

Requirements

• 2.2 tires and foams, installation, 2mm hex wrench, 5mm nut driver or socket, medium thread lock for hub bolts

Specifications

• Hub: 12mm hex
• For 2.2in tires
• Outer rim lip diameter: 63mm
• Inside rim diameter: 53mm
• Weight: 120g each
• Width (outside bead to outside bead): 40mm
• Backspacing: 15.6mm
• Screws: M2.5x12mm
• Axle thru hole: 5mm
• REPLACEMENT:
• BLW2510N01 (black M2.5x12mm) or BLW2510N08 (chrome M2.5x12mm)
• OTHER STYLES:
• BLW22H01 (black 6-lug 8-hole 12mm hex hub)
• BLW22H38 (white 6-lug 8-hole 12mm hex hub)

Fits
