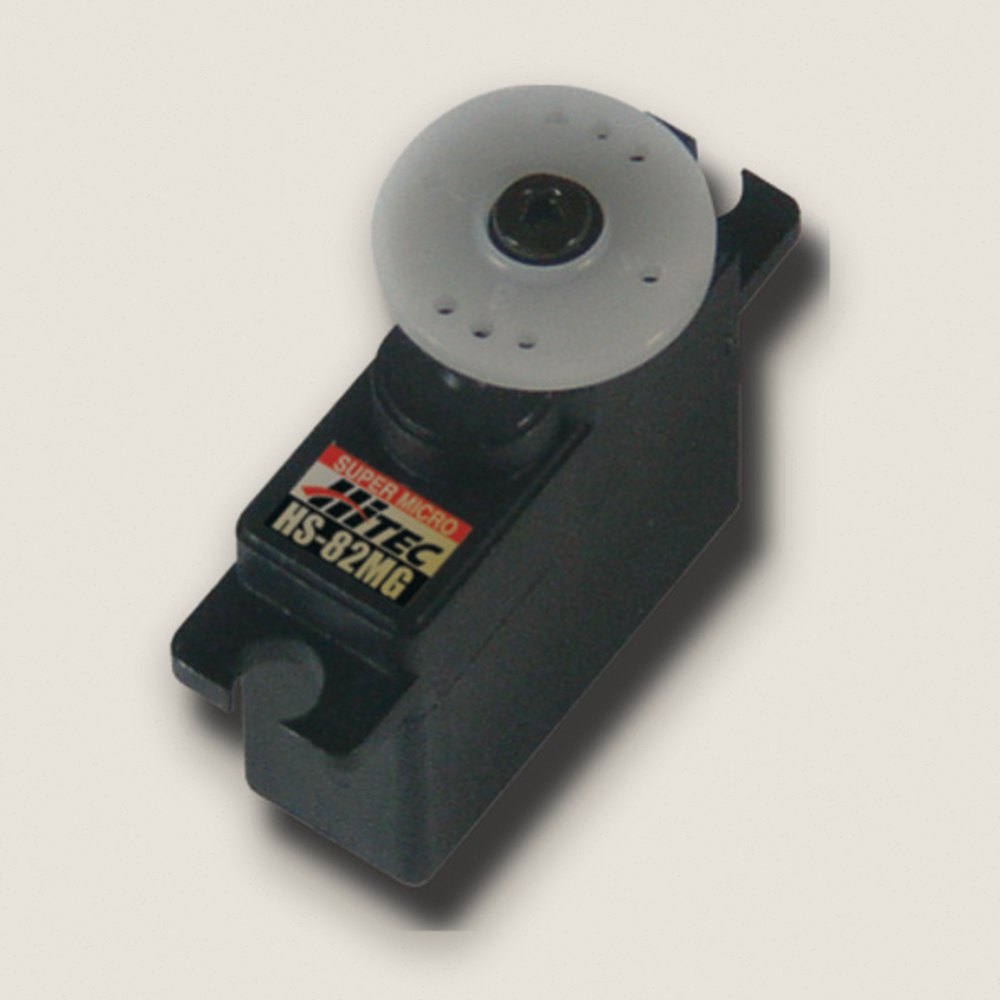

HS-82MG Micro Servo, Universal - Hitec/RCD

About this part

The HS-82MG is a micro servo for smaller aircraft and helicopters that need a durable gear train. Strong three-pole ferrite motor and rugged metal gears do the heavy lifting.

Features

• Strong three-pole ferrite motor
• Rugged metal gears
• SPECS:
• Operating voltage 4.8V to 6.0V DC
• Speed 0.12 to 0.10 sec @ 60
• Torque 39 to 47 oz-in (2.8 to 3.4 kg-cm)
• Current: 10 mA idle, 280 mA no load, 1,800 mA stall
• Dead band 5 s
• Circuit HT7003 analog SMT
• Motor 3-pole metal brush ferrite
• Gear material metal, no bearing
• Standard 24 spline output shaft
• Plastic case, dust/water resistance N/A
• Dimensions 1.17 x 0.47 x 1.16 in (29.8 x 12.0 x 29.6mm)
• Weight 0.66 oz (19.0g)
• Connector 28 AWG, 20 strands
• FITS:
• General hobby RC aircraft parts
• General hobby RC airplanes, brushless
