Two-Piece Clip-On Motor Heat Sink with Fan, Tamiya Blue - Hot Racing

About this part

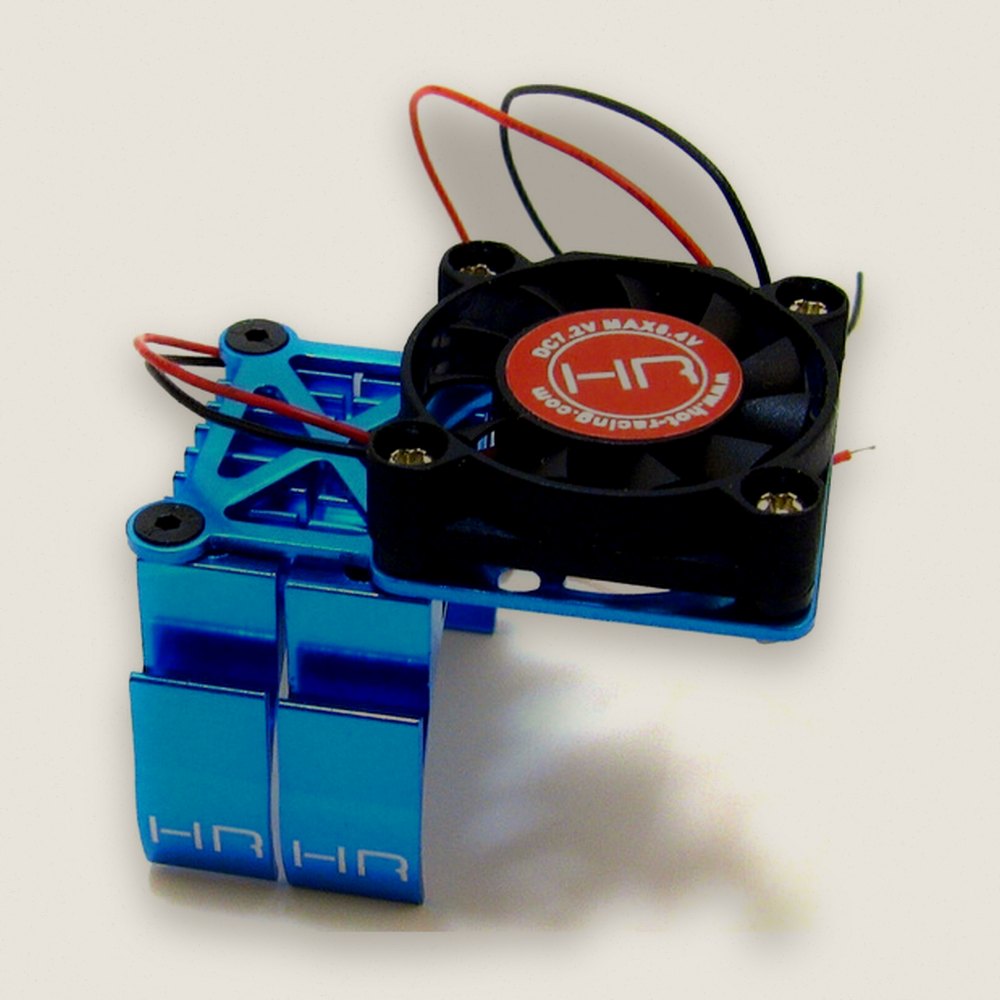

Tamiya blue clip-on two-piece motor heat sink with fan, for 540 and 550 motors. The two-piece clip gives you 8 width settings from 20 to 40mm.

Features

• Keeps the motor cooler
• Aluminum, clips onto 540 and 550 motors with a 36mm can
• 8 width adjustments (20-40mm), with M3 screws and nuts needed for some setups
• Tamiya blue anodized with laser-etched Hot Racing insignia
• IN THE BOX:
• One (1) heat sink with cooling fan

Requirements

• Some units need assembly with 1.5mm and 2mm hex wrenches
• DC 7.2-8.4V max power source; plug needs soldering or a receiver port

Specifications

• Overall height: 39mm (1.54 inch)
• Fan size: 30x30x7.5mm
• Fan mounting hole pattern: 24mm square
• Input voltage: DC 7.2-8.4V max

Note

• Some chassis lack room for the fan. Study the photos and judge fitment yourself.
• Color options: MH550TE01 (Black), MH550TE02 (Red), MH550TE06 (Blue), MH550TE07 (Purple), MH550TE16 (Tamiya Blue)
• FITS: Traxxas E-Maxx, E-Maxx 3905, 3906, E-Revo 5603/5605/5608, Rustler 2WD, Slash 2WD (all versions)
