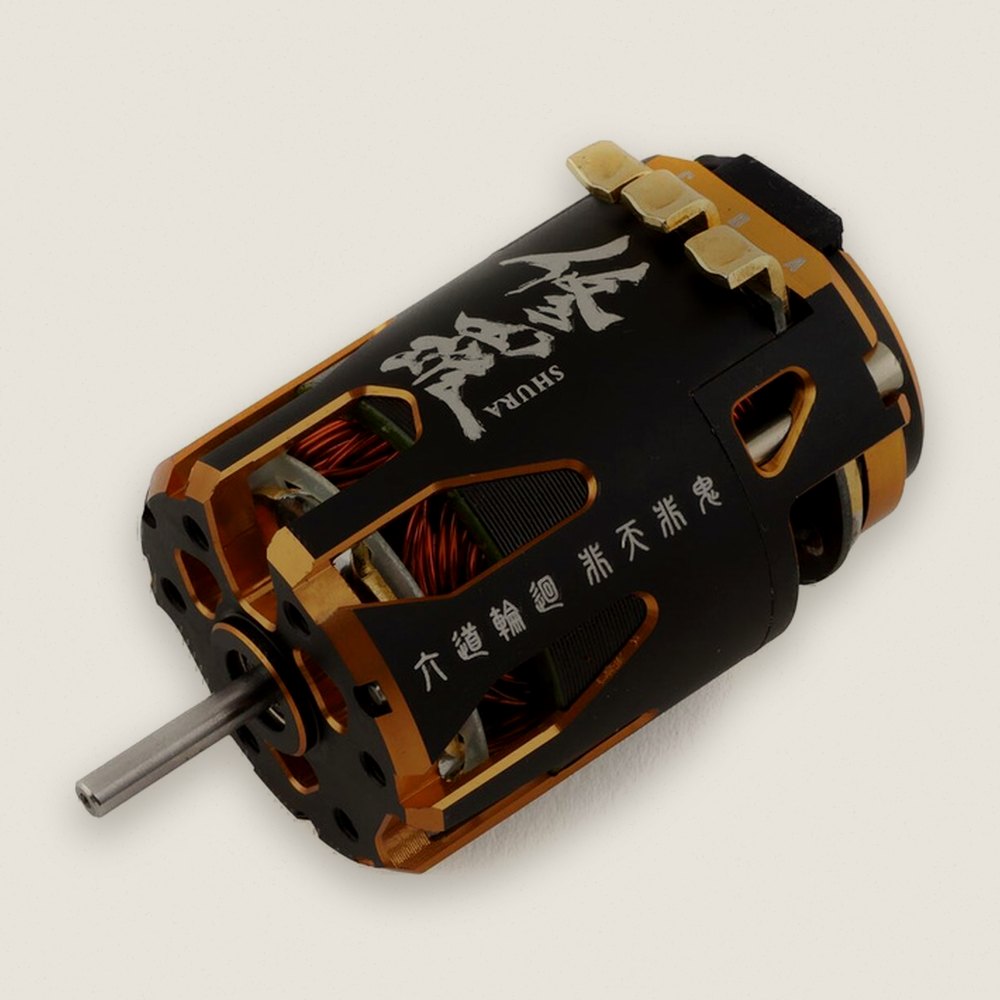

Brushless Sensored Motor, Shura 540 Dual Sensor Port (13.5t) (285) - Onisiki

ONI6412

Brushless Sensored Motor, Shura 540 Dual Sensor Port (13.5t) (285) - Onisiki

Onisiki Brushless Motors

$97.99

In stock

Added ✓

30-day returns · Secure checkout by Stripe · We accept Visa, Mastercard, American Express, Discover, Apple Pay, Google Pay and Link

Whippy

Whippy checked a few minutes ago:
it's in stock.
- Lock it in

About this part

Onisiki Shura dual sensor port 540 sensored brushless motor. 13.5 turns and 2850kv, with gold accents to match the style of the build. The updated 12mm rotor gives smooth throttle control into the higher RPM range. The extra sensor port on the sensor board means fewer sensor cable headaches when mounting.

Specifications

Turns: 13.5T
Size: 540
LiPo: 2-3S
Max amps: 49A
Rotor poles: 2
IO (7.4V): 1.6A
Resistance (u): 0.0298
Watts: 190
Rotor: 12.0 x 5.0mm
KV: 2850
Shaft diameter: 3.175 inch
Weight: 160g
YOU GET:
One Onisiki Shura dual sensor port 540 sensored brushless motor
One sensor cable
Fits: HPI Nitro Nitro RS4 (belt) (really old), HPI Electric RS4, HPI Electric Pro 2, HPI Nitro N. Racer 2 RS4 (belt), HPI Nitro N. Racer RS4 (belt), HPI Nitro RS4 Nitro 2

Fits

HPI Nitro Nitro RS4 (belt) (really old)HPI Electric RS4 HPI Electric Pro 2 HPI Nitro N. Racer 2 RS4 (belt)HPI Nitro N. Racer RS4 (belt)HPI Nitro RS4 Nitro 2 HPI Electric Pro 4 HPI Electric Sport HPI Electric Sport 2 HPI Electric Rally Kyosho Spider GP10 OFNA OB-4 Sedan Kawada SV-10 OFNA Z-10 (Nitro) Sedan Mugen Prime 12 1:10 Nitro Touring

⚠ WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov

More parts for the HPI Nitro Nitro RS4 (belt) (really old)

Shims, 2.6x5.9x0.5mm (4) - Redcat

$15.28Only 2 left

Ball Bearing, 5x12x4 (4) - SWORKz

$19.99Only 1 left

Pin, M2.0x9.8mm, 10pc - SWORKz

$14.39Only 1 left

Differential Oil, Pure Silicone 100 000 100K cst 70ml 2.36oz - Racers Edge

Body, 200mm, for 1966 Ford Mustang GT - HPI

$45.79Only 3 left

Epoxy, 5 Min Z-Poxy 4 oz - Pacer Technology Zap

$20.99Only 1 left

Green Slime Shock Lube, Factory Team - Associated

Hex Driver, 1.5mm 100mm S2 German Steel Tip - Hot Racing

$14.76Only 3 left

Glo-Ignitor without Charger, Kwik Start - DU-BRO

$21.99Only 1 left

Fuel Can Fitting, Kwik-Fill - DU-BRO

$20.53Only 3 left

Shock Oil, Silicone 47.5wt 2oz (59ml) Container - Associated

Starter Shaft with O-Ring, 220mm for HPI Rotostart - Racers Edge

All 488 parts for the HPI Nitro Nitro RS4 (belt) (really old) →

More Onisiki Brushless Motors

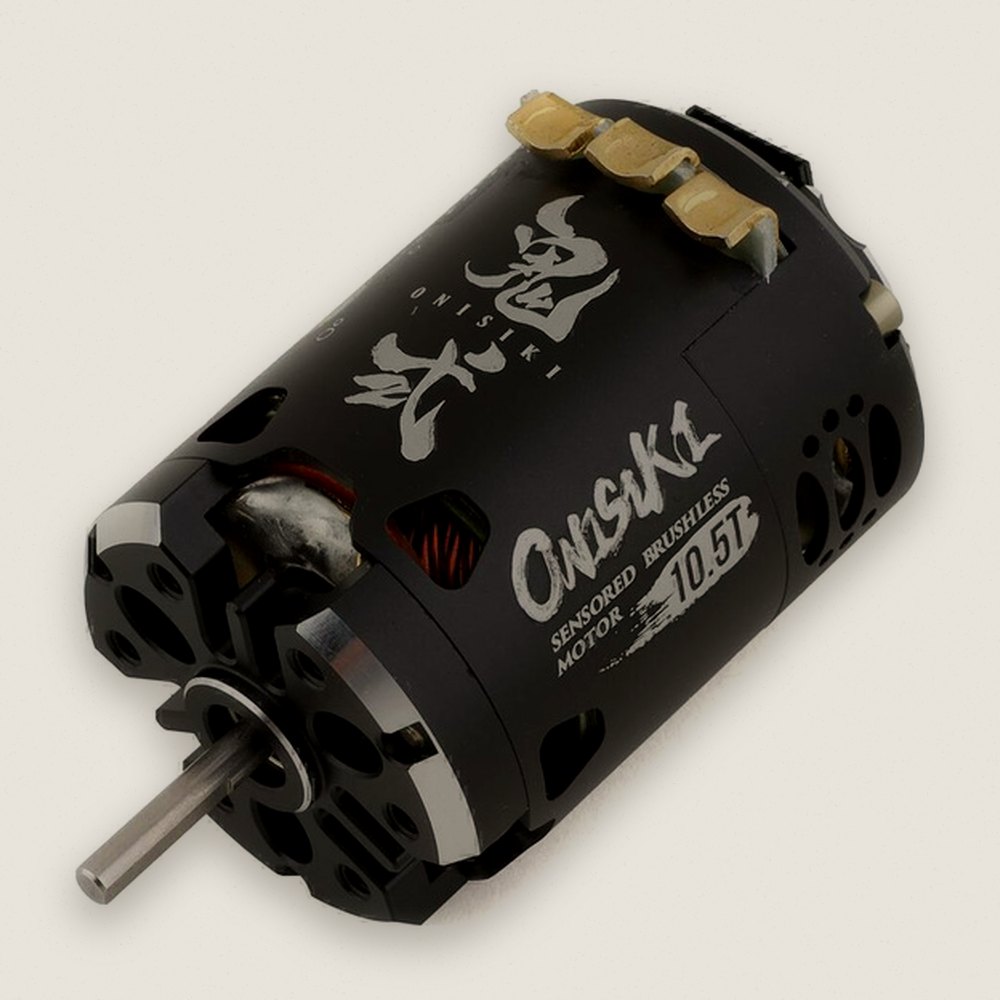

Brushless Sensored Motor, 540 Dual Sensor Port (10.5t/3800kv) - Onisiki
