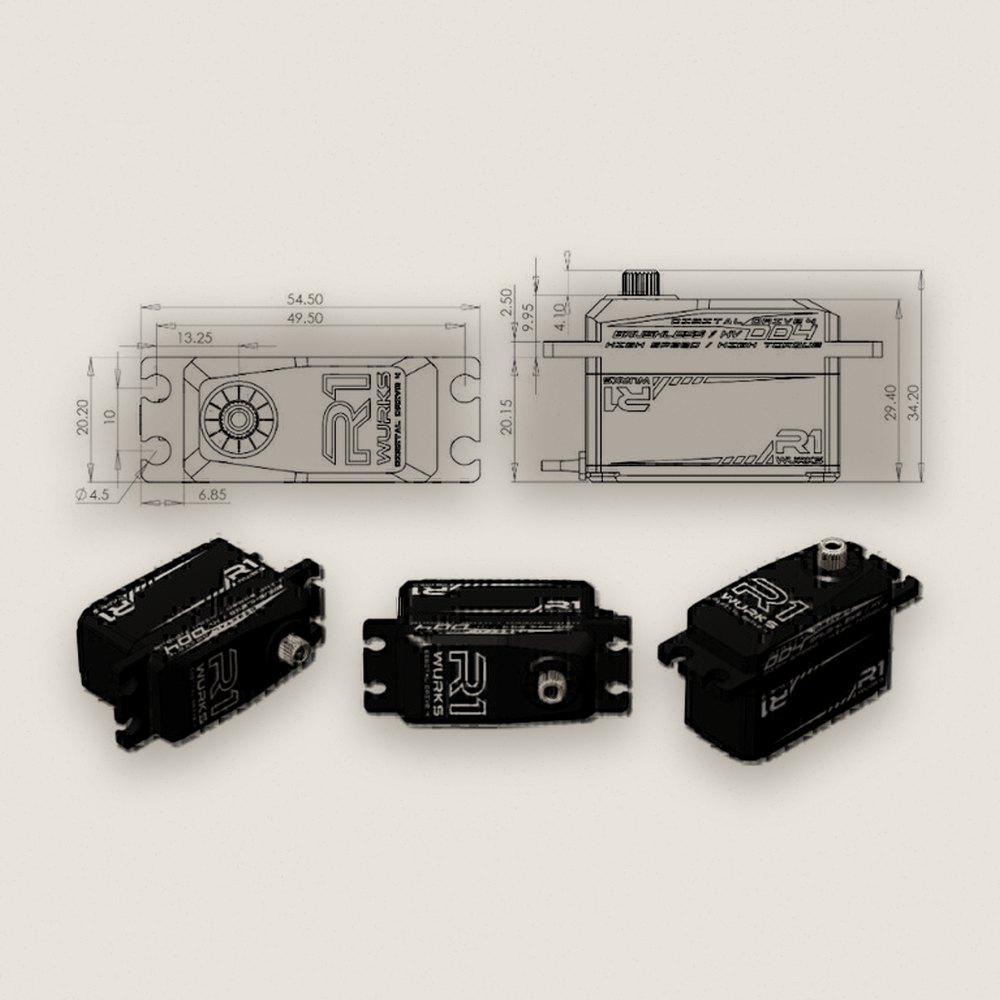

Low-Profile High Torque/Speed Servo, DD4 - R1Wurks

About this part

A high-voltage servo for racers who want sharper steering. It puts out massive torque and speed, so your inputs feel direct and stay consistent under load, whether you're holding a tight line through a sweeper or snapping through a high-speed chicane. Machined aluminum billet case for strength and fast heat dissipation. Full stainless steel gear train. Hi-voltage capable, ultra high torque, high speed. Wire colors: negative black, positive black, signal grey.

Specifications

• 80mm wire length, 25T spline
• Brushless motor, FET motor drive
• Weight: 2.35 oz
• 333Hz refresh rate
• Dual ball bearings, PWM control, magnetic sensor
• Voltage: 4.8V to 8.4V
• Torque (kg-cm / oz-in): 20 / 278 at 4.8V, 25 / 347 at 6.0V, 30 / 417 at 7.4V, 33 / 458 at 8.4V
• Speed (sec/60): 0.110 at 4.8V, 0.090 at 6.0V, 0.080 at 7.4V, 0.068 at 8.4V
• FITS: Align T-Rex 250, 450, 500, 550, 600, 700. Fits most applications.
