Gear Set, Steel Ultra Low Range 20.5:1 for Ascent 18 - Hot Racing
RACM38U

Gear Set, Steel Ultra Low Range 20.5:1 for Ascent 18 - Hot Racing

Hot Racing Drive-train: gearbox and gears
$33.88
In stock
Added ✓

30-day returns · Secure checkout by Stripe · We accept Visa, Mastercard, American Express, Discover, Apple Pay, Google Pay and Link

Whippy
Whippy checked a few minutes ago:
it's in stock.
- Lock it in

About this part

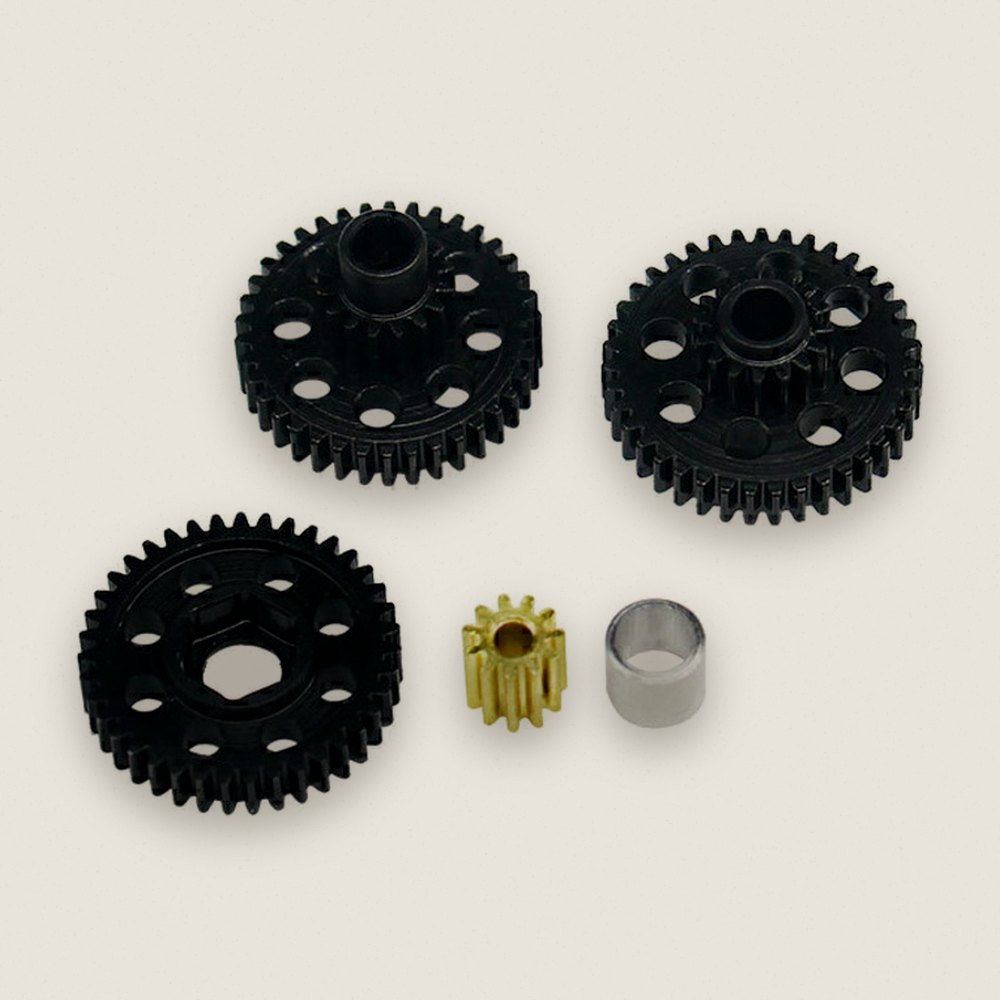

Ultra low range 20.5:1 steel gear set for the Ascent 18. Super duty crawl gears. They replace the stock plastic gears and give you way more crawl. Precision CNC machined from #45 steel, with a brass pinion. Hardened gears resist wear and hold up to fatigue better. Replaces the stock plastic gear set. IN THE BOX: One (1) steel drive gear (38T / 16T) One (1) steel idler gear (39T / 16T) One (1) steel output drive gear (39T) One (1) brass pinion gear (11T)

Requirements

  • Replaces the stock transmission and hardware.
  • Use a light coat of grease on the gears during install.
  • Use a gear remover to install the pinion (SDR1380).

Notes

  • Replaces RER29168 and RER29171. Also works with TRXM180N9.
  • Stock gear ratio: 13:1

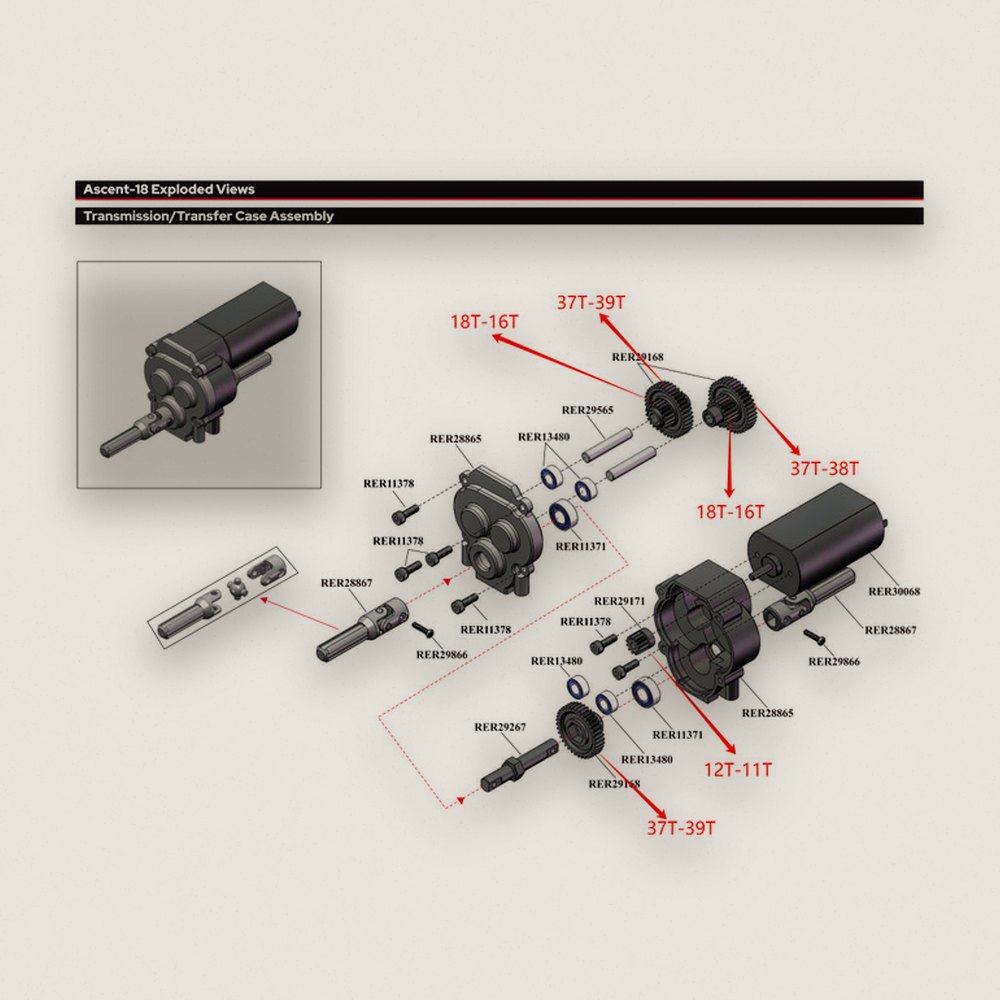

  • STOCK GEARS REPLACED:
  • RER29168 plastic drive gear (37T / 18T)
  • RER29168 plastic idler gear (37T / 18T)
  • RER29171 plastic output drive gear (37T)
  • Plastic pinion gear (12T)

Fits

Redcat 1:18 Ascent Rock Crawler
