Pre-Assembled Crawler Chassis Kit, 1:10 Scale Vertex-10 Slider - Redcat

About this part

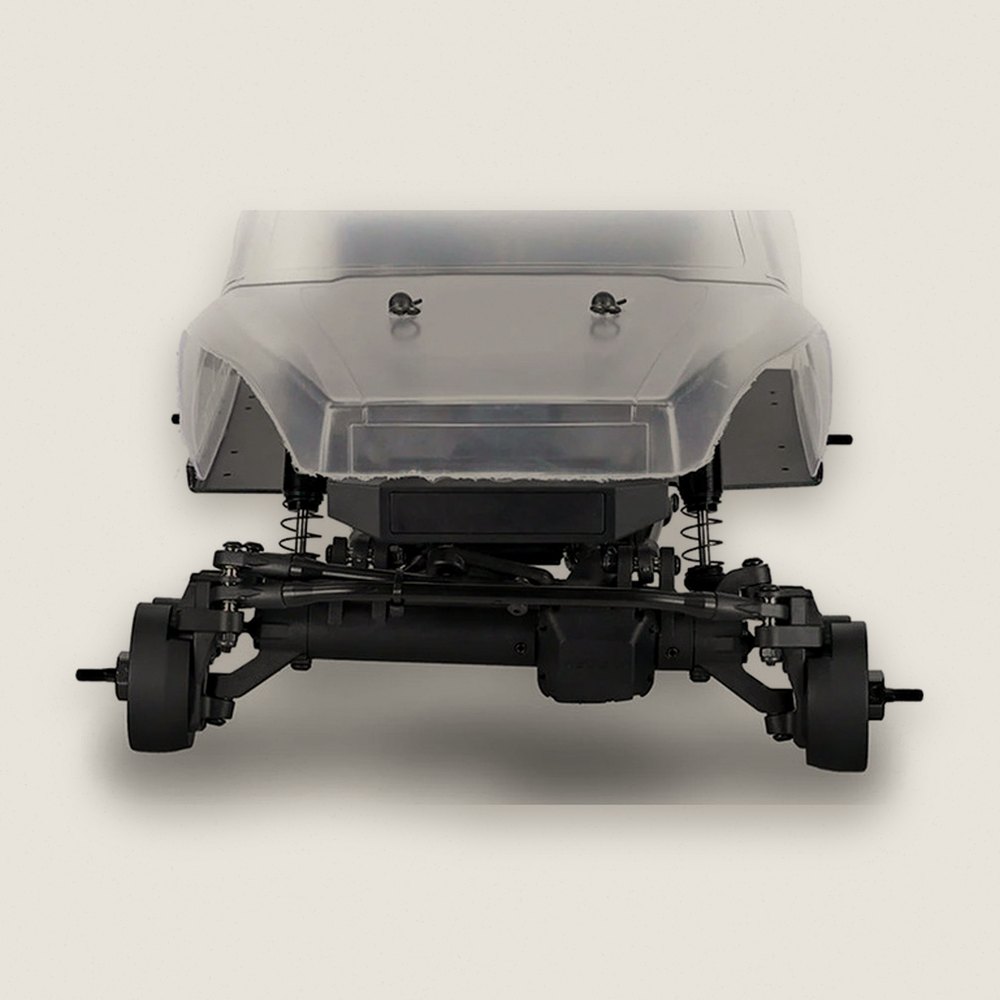

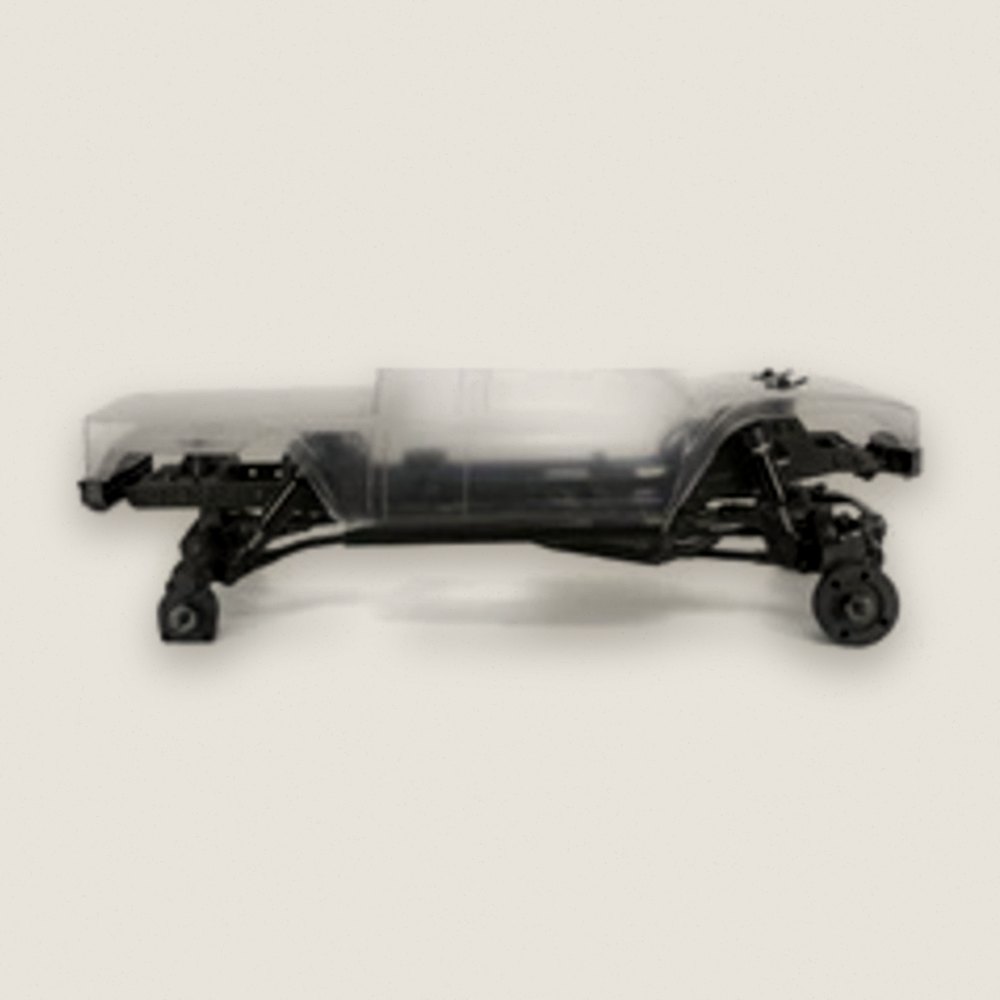

The Vertex-10 Slider is a fully assembled 1:10 rolling chassis for crawler builders who want to run their own electronics and drivetrain. It rides on a 3mm carbon fiber ladder frame with a motor-forward layout, a 10-degree skid angle, and several battery mounting positions for dialing in balance. The low-profile body sits 15mm lower than the Vertex-10 RTR, dropping the center of gravity for confident handling on steep ground.

You will receive

• 3mm carbon fiber chassis rails, rear shock towers, transmission end plates, and behind-the-axle servo mounts
• Heavy-duty portal axles with a 3:1 portal ratio, high-position hypoid-cut ring and pinion, weighted metal front portal boxes, and 20% total overdrive
• Steel front and aluminum rear axle tube inserts for weight bias
• Double-CV joints and high-steer axles with a 58 steering angle
• Aluminum-body oil-filled air-emulsion shocks
• Splined metal driveshafts with angled ends
• Tapered links and high-clearance rear links
• Low-profile unpainted body with decals
• Fairlead and LED-ready bumper inserts

Requirements

• Outrunner-style motor (36mm diameter, 31mm max length)
• ESC
• Transmitter and receiver
• Steering servo, 25T (2024mm servo horn included)
