True-Track Rear A-Arm Conversion, Blue for Revo (Not for 2.0) - RPM R/C Products

About this part

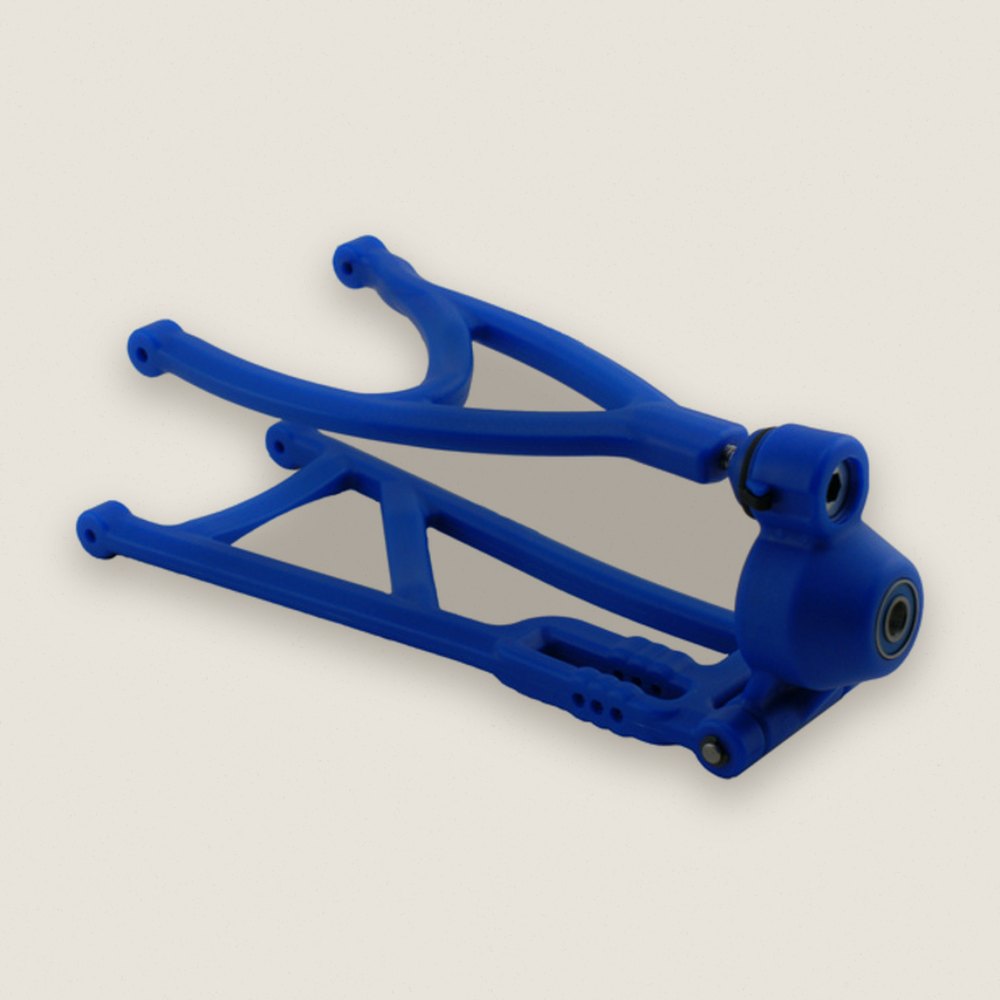

Blue True-Track rear A-arm conversion. Fits the Revo and e-Revo, but not the Revo 2.0. Ditch the stock toe links, lock the rear toe, and kill the bump steer.

Features

• Locks rear toe at 1.5 per side for 3 total rear toe-in
• Eliminates rear bump steer
• Replaces the lower pivot ball with a 4mm hinge pin for constant rear toe
• Keeps the stock upper pivot ball so you can still adjust camber
• Weighs 1-1/8oz (32g) less than stock

You will receive

• Two each upper and lower rear A-arms
• Two axle carriers
• Two 4mm hinge pins
• Four E-clips
• Two 3x16mm shock mount screws
• Two aluminum pivot ball set screws
• Two Delrin pivot ball bushing cups
• Two 6x15mm sealed outer bearings
• Two 12x21mm sealed inner bearings
• Instruction sheet

Requirements

• Removal of stock rear components

Comments

• Compatible with RPMC8237, RPMC8238, RPMC8222, and RPMC8585. Not compatible with TRA #5356 Long Travel Rocker Set.
• FITS:
• Traxxas E-Revo 5603 5605 5608, Traxxas Revo 2.5, Traxxas Revo 3.3 5308 (2008 models), Traxxas Revo 3.3 5309, Traxxas Summit
