Axle Carriers, Aluminum with Bearings and Carbon Arms (Blue) for Tra - Hot Racing

About this part

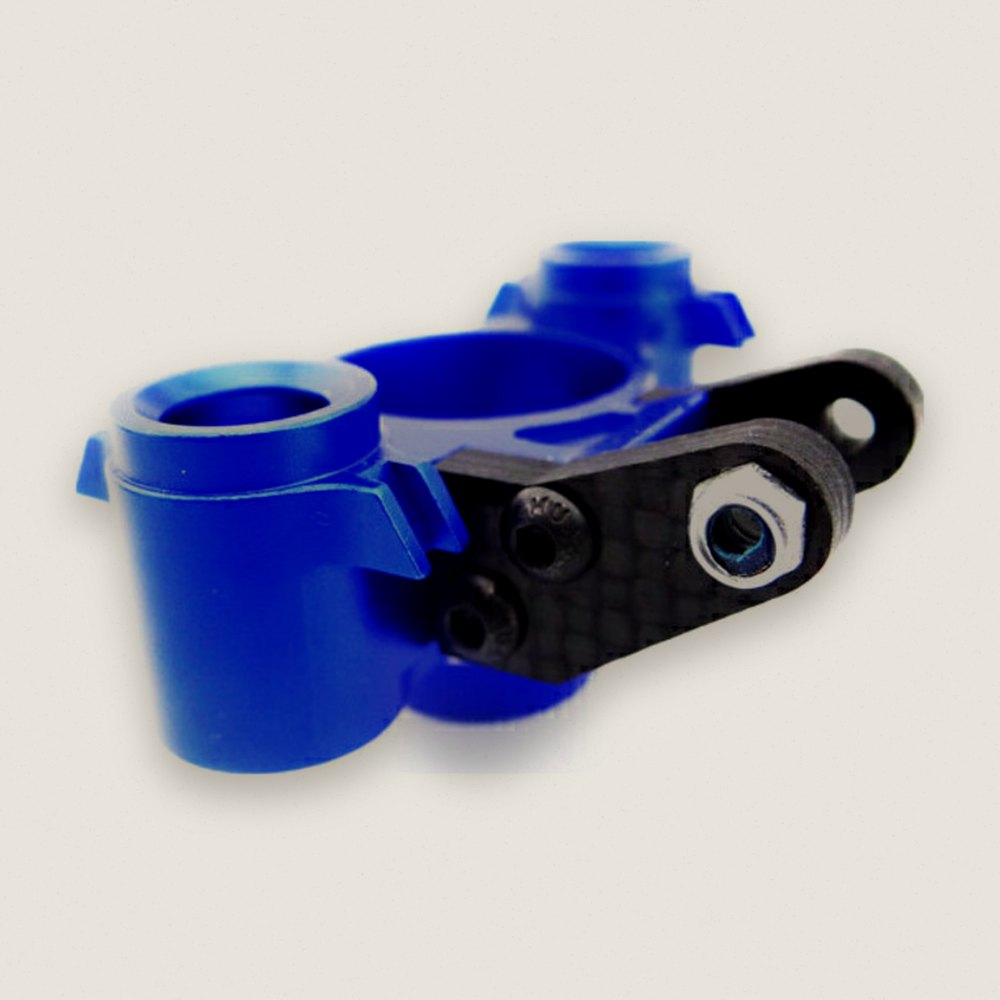

Heavy duty aluminum axle carriers (steering knuckles) with carbon fiber steering arms from Hot Racing, anodized blue. CNC machined with rubber sealed bearings and o-ring position locks on the pivot ball screws. Made for the 1/10 TRA E-Maxx (new), E-Revo, Revo 3.3, Slayer Pro 4X4, Summit and T-Maxx 3.3.

Features

• CNC machined aluminum construction, anodized blue
• Replaceable 4mm carbon fiber steering arms with integrated nut for easy tie-rod install
• Aluminum pivot ball screws with Delrin cups and o-ring position locks
• Heavy duty rubber sealed bearings
• CNC machined aluminum o-ring set screw with Delrin cup

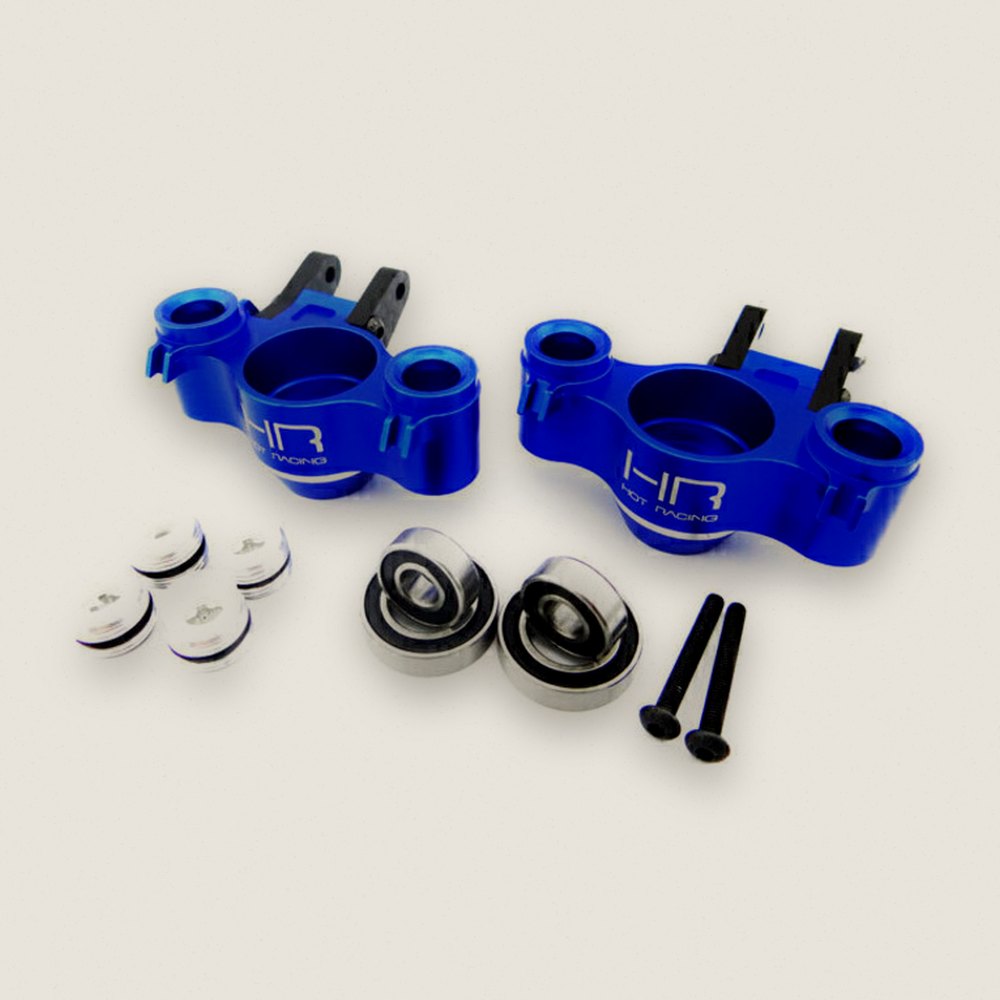

You will receive

• One (1) left aluminum axle carrier with carbon fiber steering arms
• One (1) right aluminum axle carrier with carbon fiber steering arms
• Four (4) aluminum pivot ball screws with Delrin cups and o-ring position locks
• Two (2) 12x21x5mm rubber shielded bearings
• Two (2) 6x15x5mm rubber shielded bearings

Requirements

• Installation

Specifications

• Weight: 53g per carrier
• FITS:
• Traxxas E-Maxx 3908 Brushless
• Traxxas E-Revo 5603, 5605, 5608
• Traxxas Revo 3.3 5308 (2008 models)
• Traxxas Revo 3.3 5309
• Traxxas Slayer 5908
• Traxxas Summit

Comments

• Replacement carbon fiber arm

Fits

Replaces stock part
