Transmission Gearbox, Complete Steel Gear for AX10 SCX10 - Hot Racing

About this part

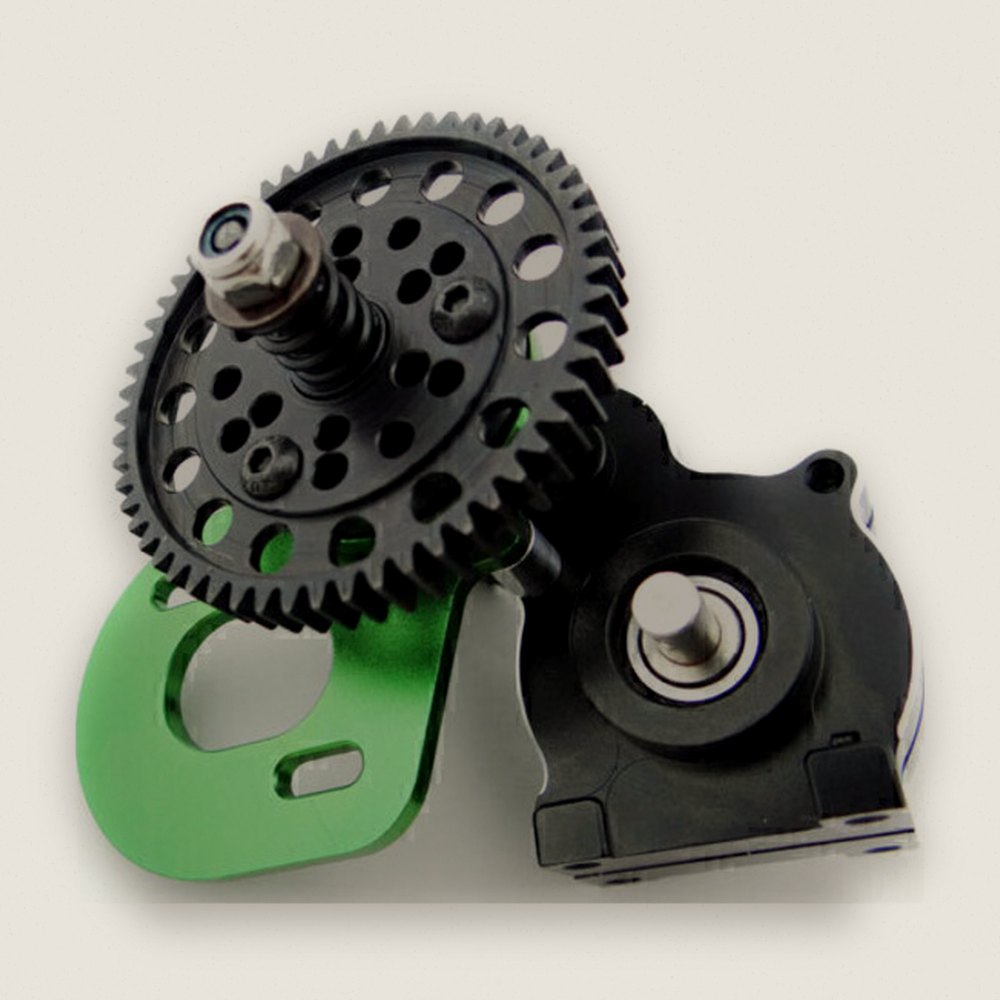

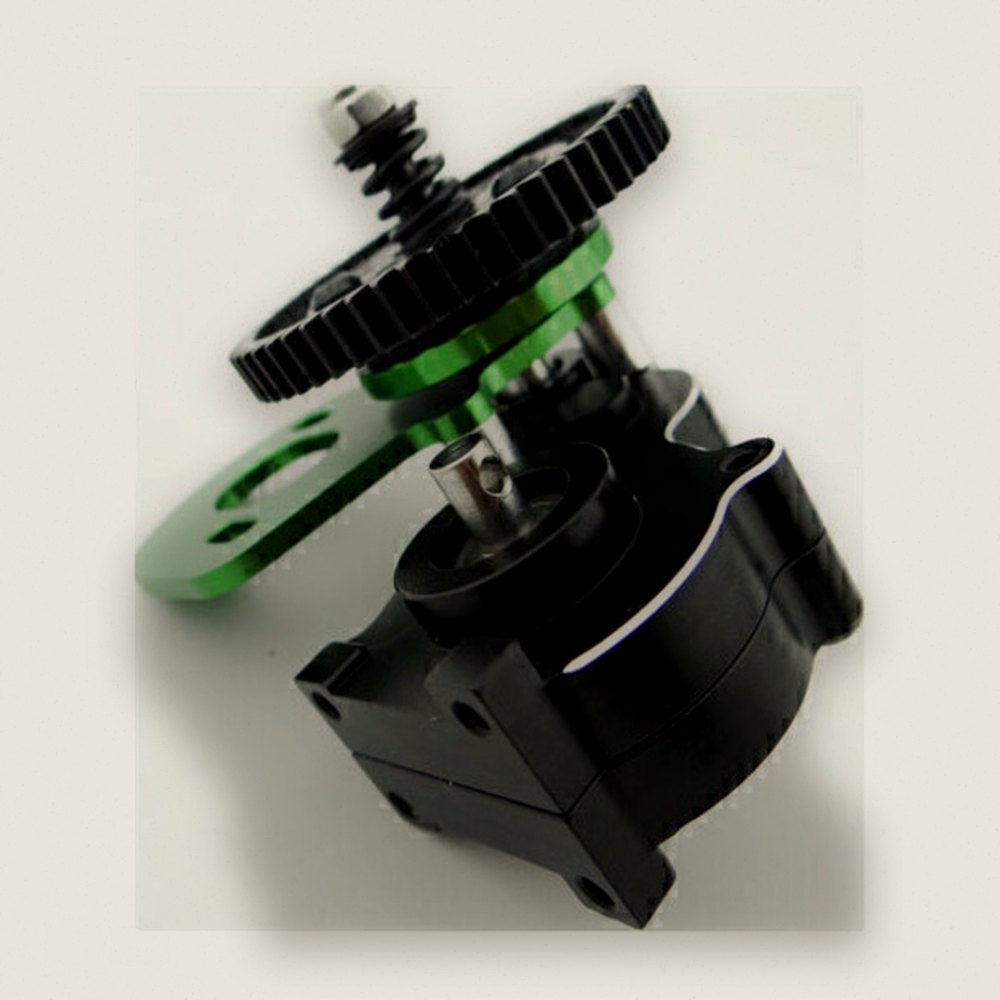

Full metal gearbox for the AX10, SCX10, Honcho, J33P, Dingo and similar. Hot Racing built this one heavy duty and it comes assembled, ready to bolt in. Steel spur gear, sealed ball bearings and a metallic-pad slipper. Anodized black case with green motor mount and gear hub.

Features

• Hardened steel spur gear and internal gears
• Fully sealed ball bearings
• Locked output gear
• Billet machined aluminum case and motor mount
• Case anodized black, motor mount plate and gear hub anodized green
• Super duty adjustable metallic-pad slipper
• Heavy duty 32 pitch, 57 tooth steel main spur gear
• Assembled and ready to install
• Uses stock bearing sizes for easy replacement

You will receive

• One complete transmission gearbox with spur gear

Requirements

• Must run with a 0.8 module (32 pitch) pinion
• Simple hand tools
• Inspect all hardware before use, use removable locking adhesive on screws threading into metal
• Compatible with Axial AX80078 stock gear cover and Hot Racing SCP32X01 aluminum cover. For either cover, Axial backplate AX80078 is required.
