Transmission, LCG Crawler for Axial SCX10 SCX2 Wraith 1.9 - Hot Racing

About this part

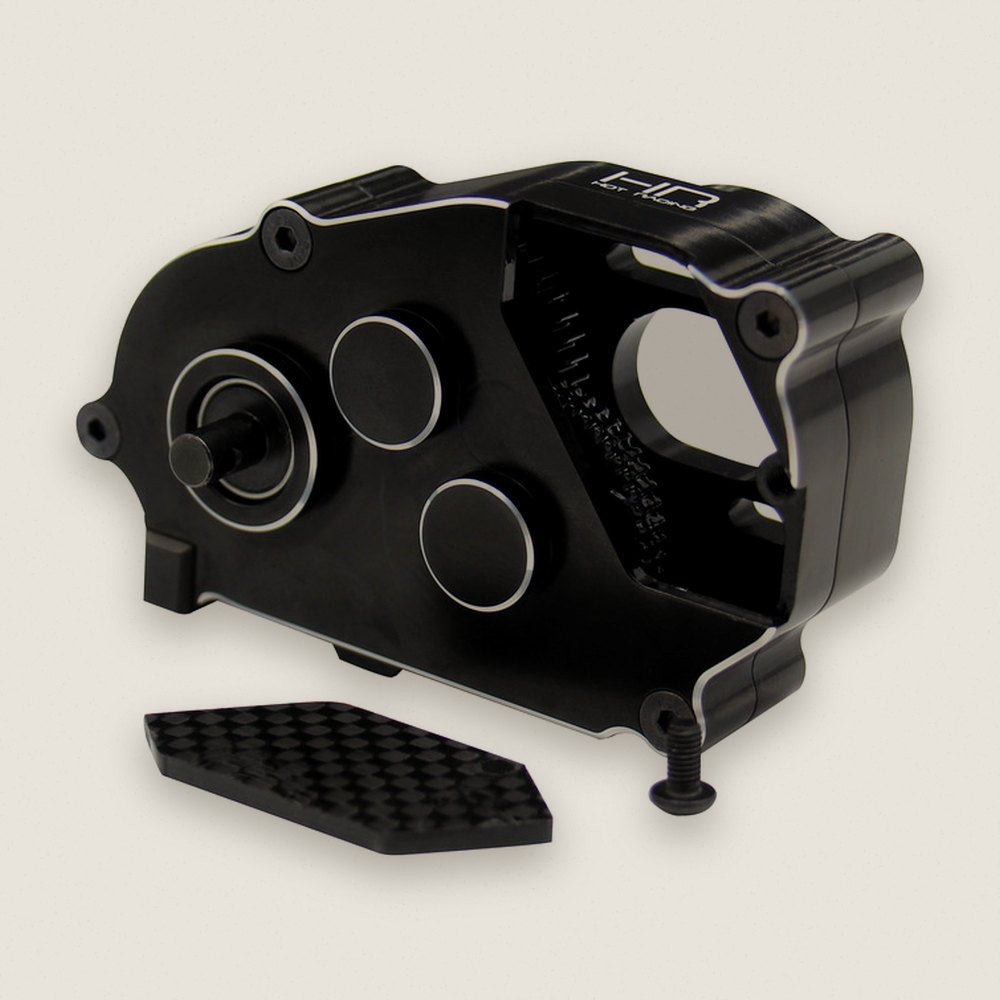

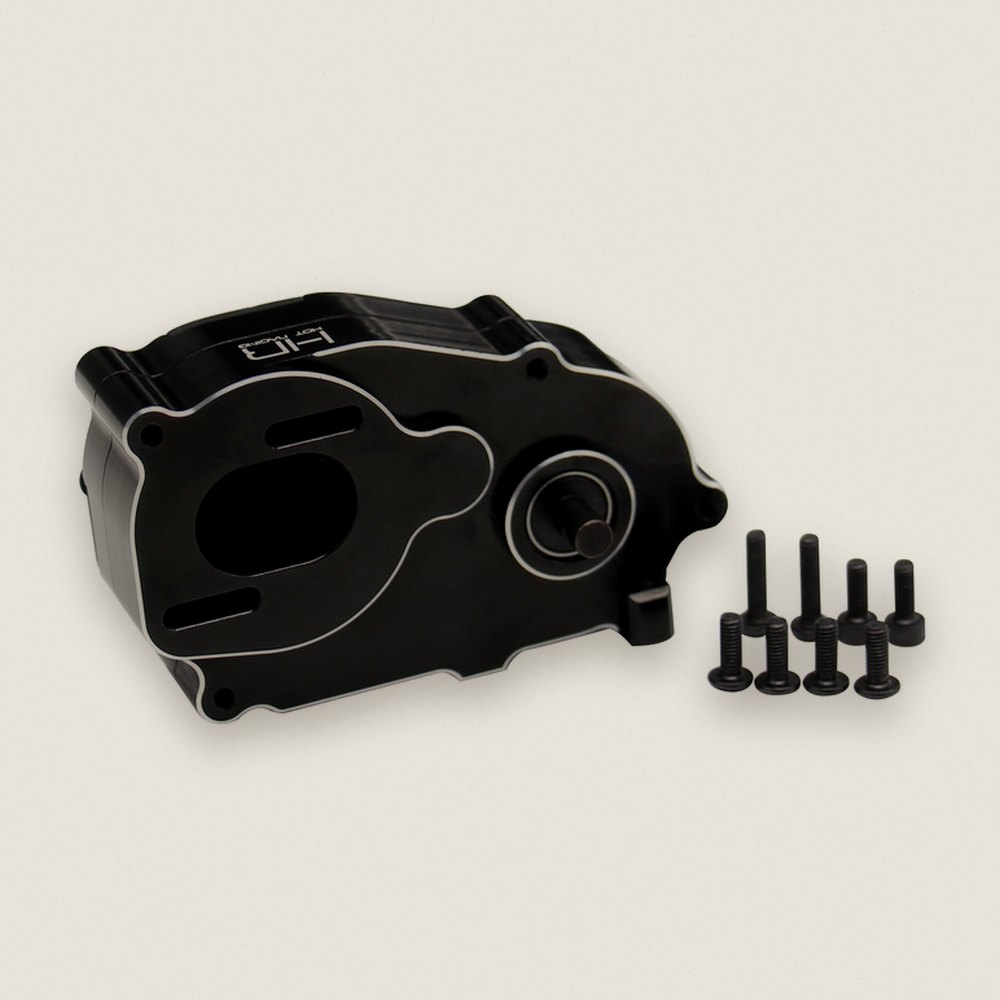

Low center of gravity crawler transmission for AX10, SCX10, SCX2 and Wraith 1.9 builds. CNC machined 6061 case, hardened steel gears, full ball bearings, and a big 11.4:1 internal reduction on top of the pinion and 52T spur. Takes 9T to 30T 48 pitch pinions.

Features

• CNC machined 6061 aluminum case
• Hardened steel gears
• Full ball bearings
• High gear reduction
• 11.4:1 internal gear reduction (plus the pinion and 52T spur reduction)
• Supports 9T to 30T 48 pitch pinions

You will receive

• One low CG transmission
• Four M3x8mm flat head cap screws
• Two M3x8mm button head cap screws

Requirements

• Axle trimming may be needed depending on the vehicle variant
• Black grease gear lubricant on the gear train

Specifications

• Length: about 78.8mm, width: about 18.8mm, height: about 47.8mm

Notes

• A 12T 48P pinion gives a 49.5:1 final drive ratio. Replacement parts: RSCP12SG (internal gear set, output shaft and gear are separate) and RSCP12CC (clear gear cover). Bearings: 2x 10x15x4mm, 1x 4x10x4mm, 3x 5x10x4mm.

Fits
