SH24TH01Offset Servo Arm, Aluminum 5 mm 24 Spline - Hot Racing
Hot Racing Radio Accessories
$16.27
In stock
30-day returns · Secure checkout by Stripe · We accept Visa, Mastercard, American Express, Discover, Apple Pay, Google Pay and Link
Whippy checked a few minutes ago:
it's in stock.
- Lock it in
About this part

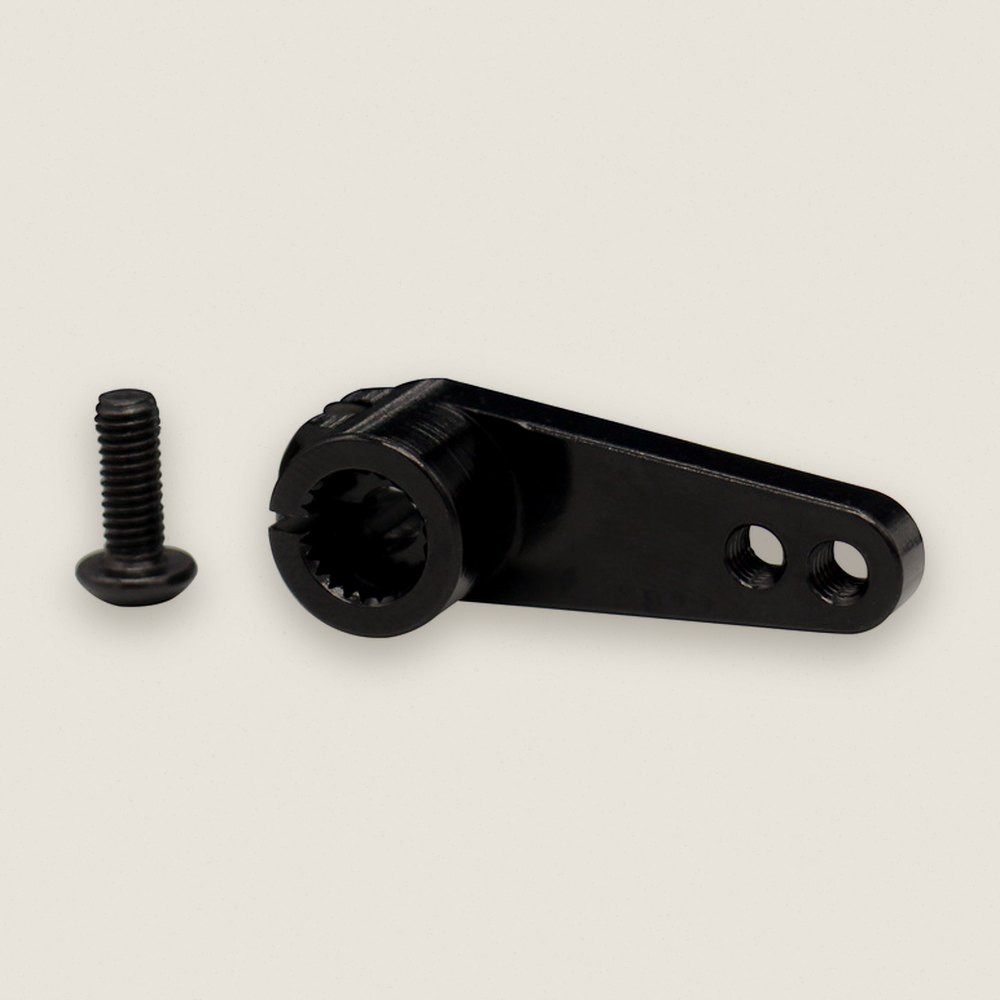

Hot Racing 5mm offset aluminum servo horn for 24 spline Hitec servos. Black, lock clamp, tight fit. Lock clamp for a precise, secure fit. CNC machined 6061 aluminum, anodized black, with two M3 holes. Install needs a servo screw and thread lock. The arm is 5mm offset, 10mm thick, with a 16mm and 20mm hole spacing.
Features
- Lock clamp for a precise, secure fit
- CNC machined 6061 aluminum, anodized black
- Two M3 holes

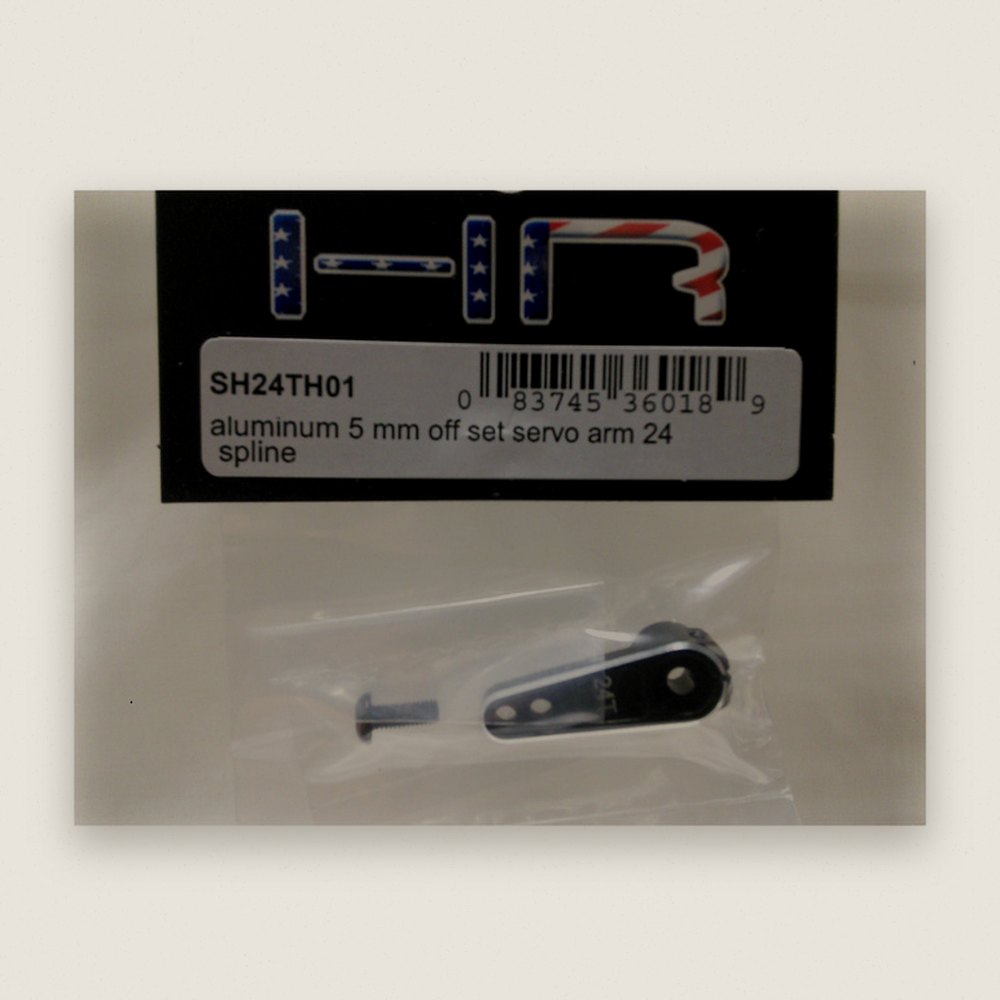

You will receive
- One 24T servo horn
- One M2.5x4mm socket head cap screw for clamp
Requirements
- 24 spline servos
- Servo screw
- Thread lock adhesive
Specifications
- Hole A distance: 16mm
- Hole B distance: 20mm
- Thickness: 10mm
- Offset: 5mm
- Material: 6061-T6 aluminum
- Spline: 24T
- Arm thickness: ~3.5mm, length ~28.5mm
- FITS:
- HPI Nitro Nitro RS4 (belt), really old
- HPI Nitro RS4 Super Nitro
- HPI Nitro N. Racer 2 RS4 (belt)
- HPI Nitro N. Racer RS4 (belt)
- HPI Nitro RS4 RTR Nitro (belt)
- HPI Nitro RS4 Nitro 2
