Water Cooling Jacket, Aluminum 36mm for Spartan SR - Hot Racing

About this part

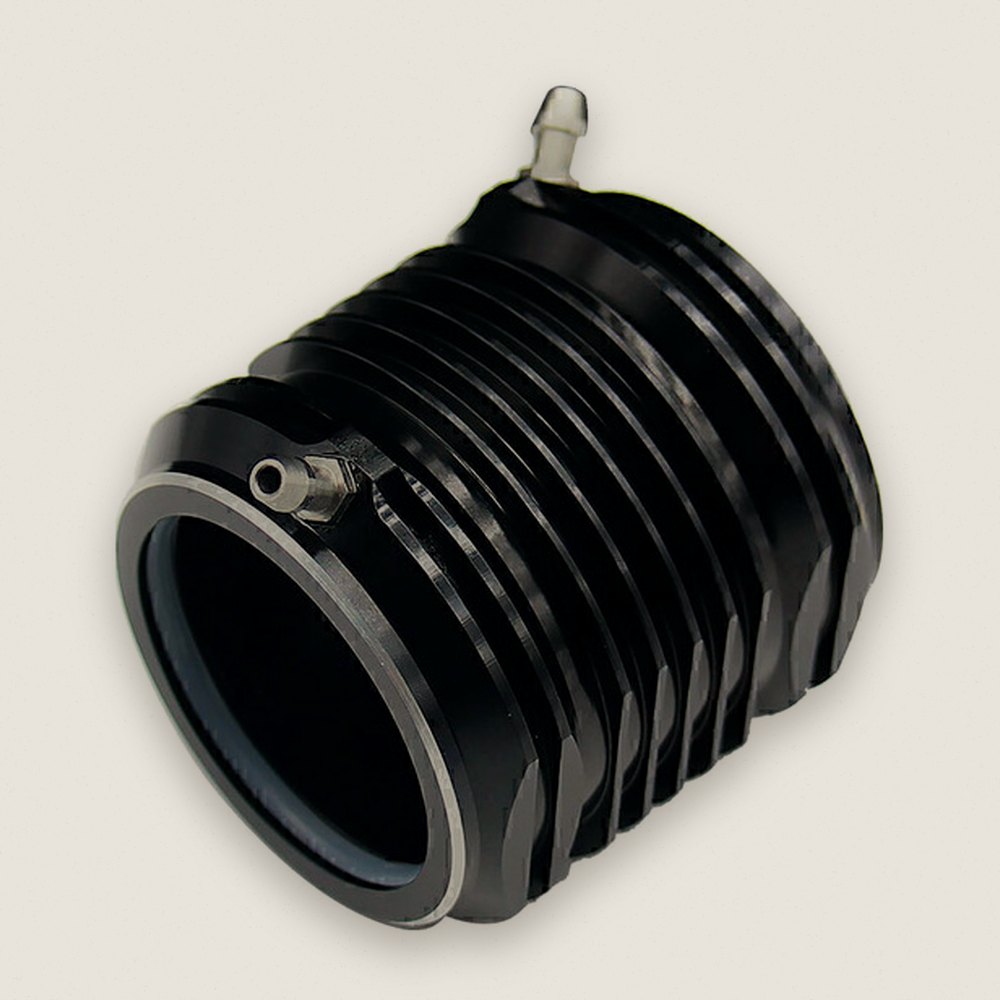

Full coverage water cooling jacket for the TRA Spartan SR's 36mm marine motor. This Hot Racing billet aluminum jacket has machined cooling fins, O-ring seals and a dual water pickup. It's black anodized and machined to show the aluminum underneath for a cleaner finish.

Features

• CNC machined billet aluminum
• Full coverage with machined cooling fins for better heat transfer
• O-ring seals to help prevent leaks
• Dual water pickup for extra cooling
• Black anodized for durability, corrosion resistance and looks
• Secondary machining exposes the aluminum for a better finish

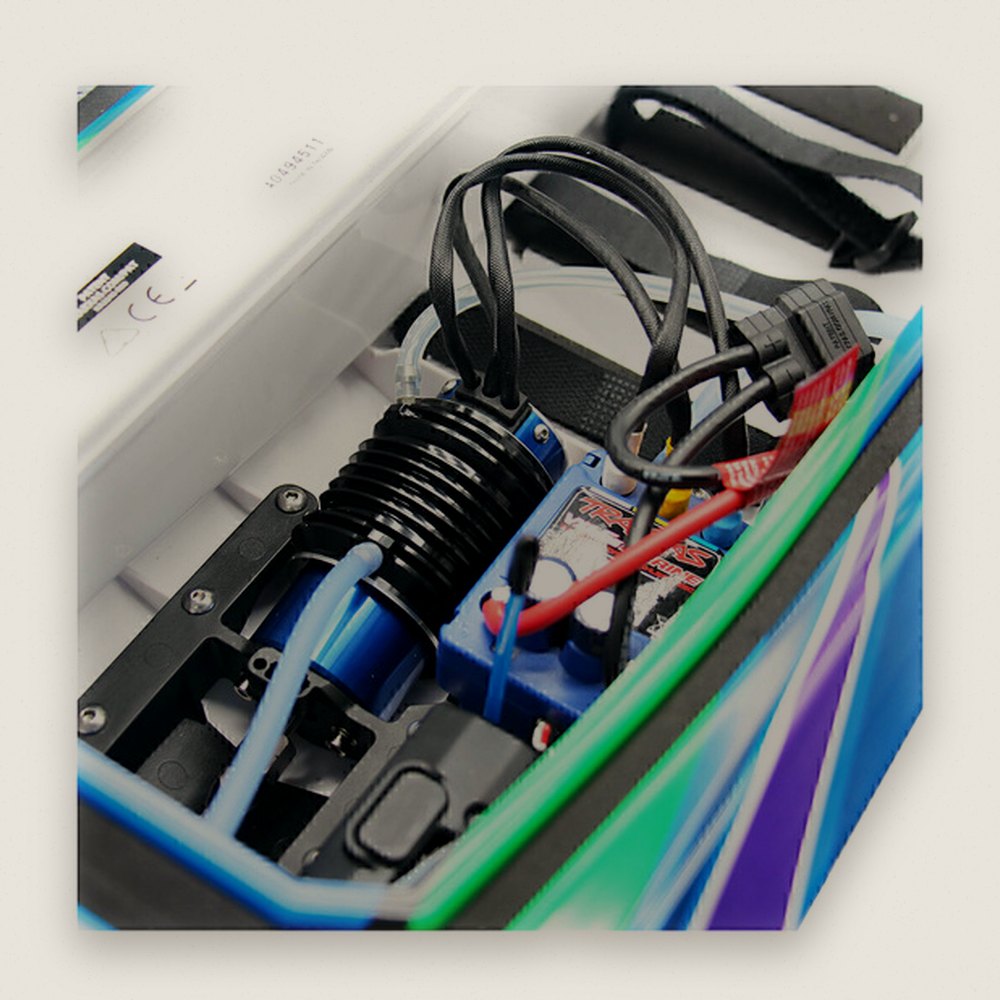

• Installs on the TRA 36mm marine motor
• IN THE BOX:
• One (1) aluminum cooling jacket
• SPECS:
• Length: 63mm (2.5 inch)
• Inner diameter: 36mm (1.4 inch)
• Outer diameter: 54mm (2.1 inch)
• Weight: 3.2 oz
• BEFORE YOU BOLT IT:
• Add a second water line and a water outlet
• Install and attach the linkage, water line and dual water outlet

Notes

• Replaces the TRA factory rubber water cooling jacket (TRA5760). Does not work with the DCB M41
• For max cooling, pair it with the Hot Racing dual pickup rudder blade and the SPN28WE06 dual port cooling outlet
• FITS:
• Traxxas Boat: Spartan SR

Fits

Replaces stock part
