About this part

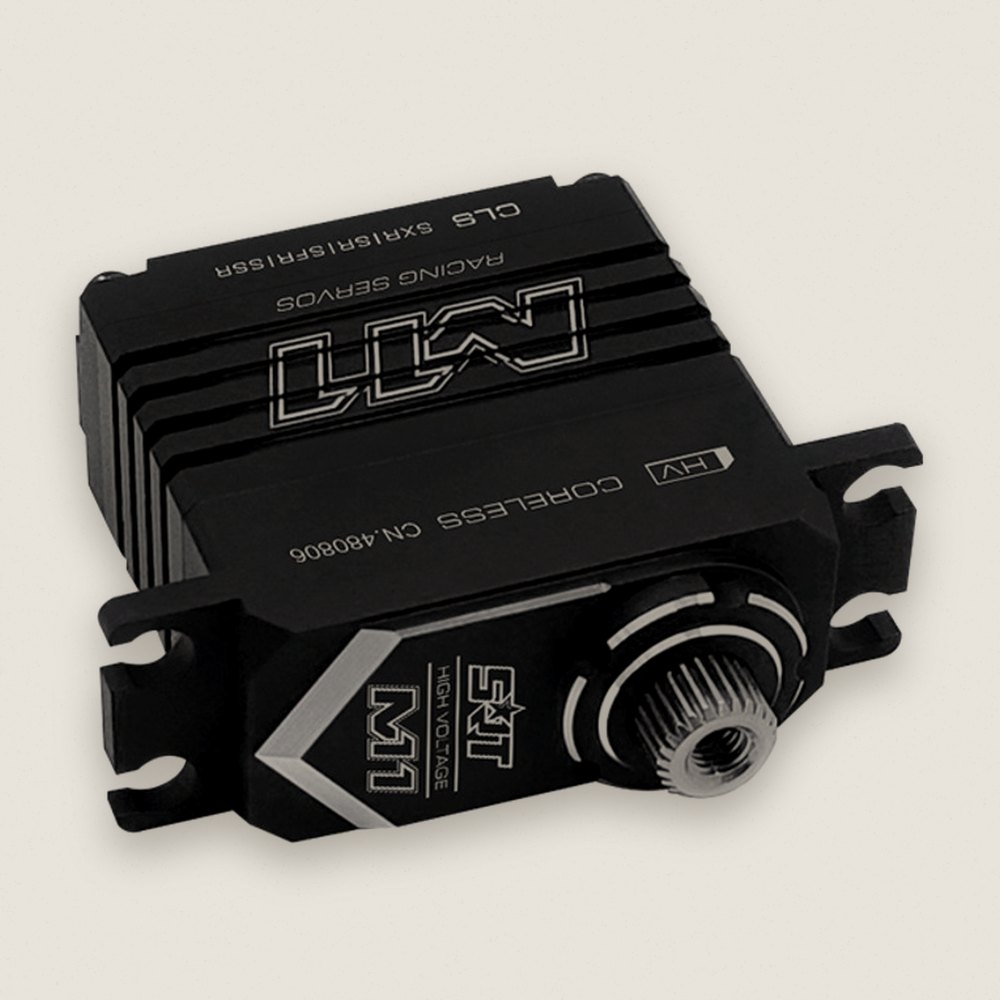

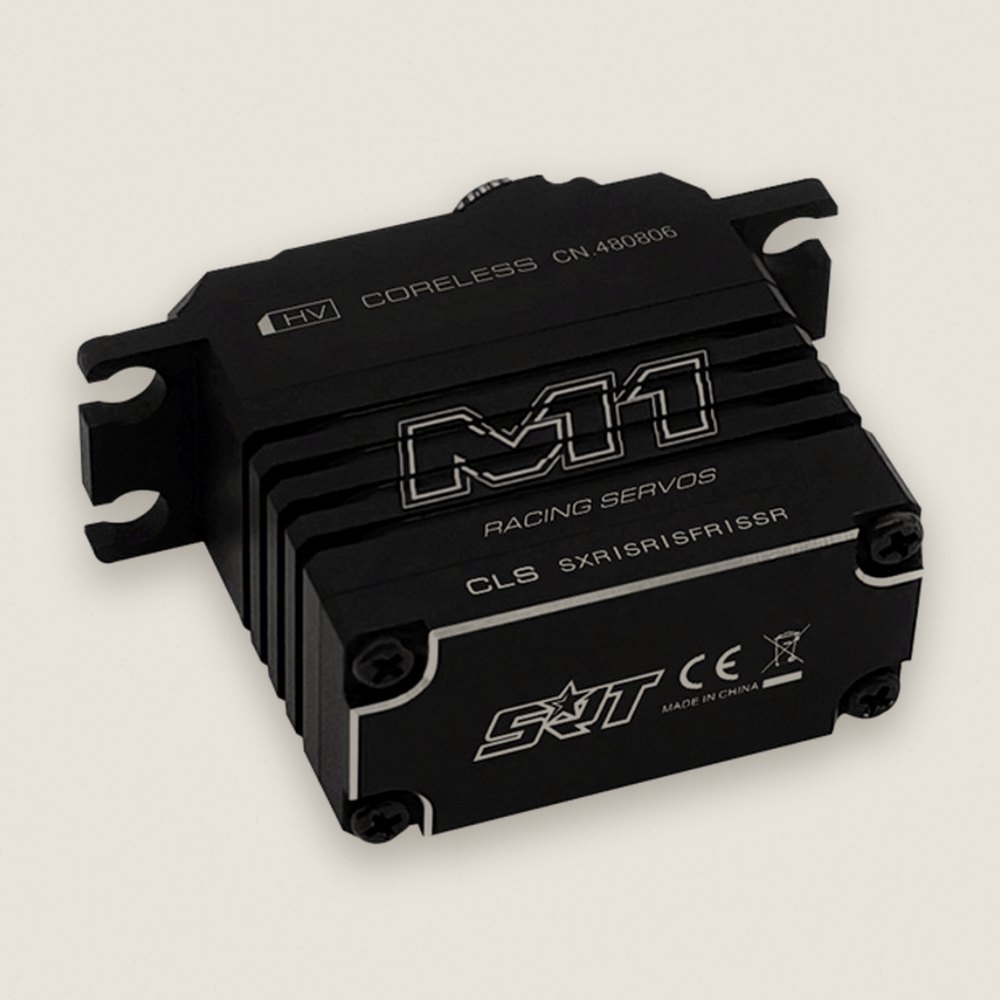

A 1/12 pancar servo that runs multiple ultra high speed modes: SXR, SFR, SR and SSR. Incredible efficiency, low power draw, and a 2 sec dead band. Backed by a 1-year limited warranty. Application: 1/12 Pancar Fits: Associated RC-12L, RC-12L3, RC-12L4, RC-12LW, RC-12R5, RC-12R5.2
Specifications
- Type: Digital
- Bearing: Dual
- Motor: Coreless
- Gears: Metal, titanium and steel
- Control: Pulse width
- Frequency: 1520s / 333hz
- Voltage: DC 6.0-8.4V
- Temperature: -10 to +60 degrees
- Speed: 0.07 sec (6.0V), 0.065 sec (7.4V), 0.055 sec (8.4V), 60 degrees no load
- Stall torque: 7.0 kg.cm / 97.2 oz/in (6.0V), 8.0 kg.cm / 111.1 oz/in (7.4V), 9.0 kg.cm / 125.0 oz/in (8.4V)
- Drive: Direct drive potentiometer
Dimensions
- 28.5 x 13.4 x 29.0 mm / 1.12 x 0.53 x 1.14 in
- Weight: 28.0g (1.0 oz)
- Connector wire length: JR 170 mm
