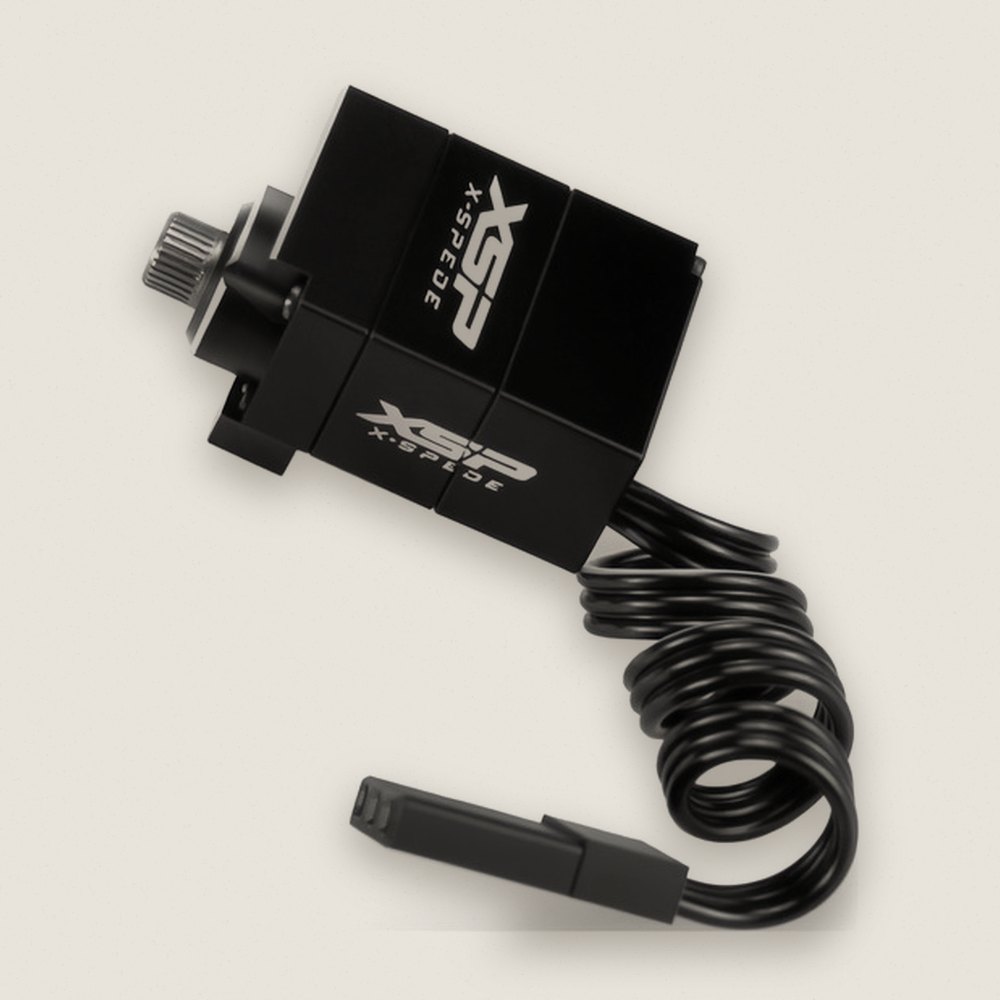

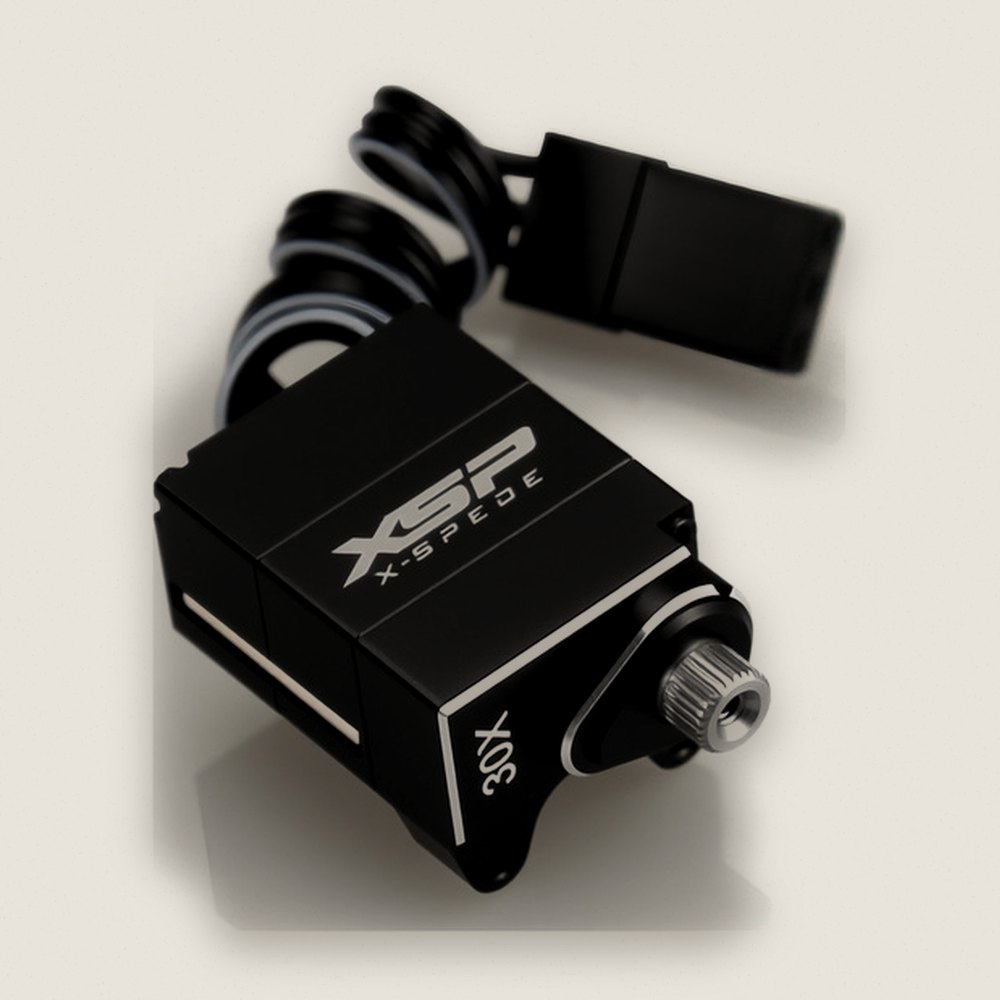

Torque Tune Micro Servo, Aluminum for SCX30 - X-Spede

About this part

Aluminum torque-tune micro servo from X-Spede for the Axial SCX30. CNC machined aluminum case, a metal gear set and more torque for sharper steering.

Features

• CNC machined aluminum servo case
• Metal gear set built to handle higher steering loads
• Higher torque output for better steering
• Stock servo saver absorbs impacts and protects the servo gears

Specifications

• Motor type: brushed coreless
• Gear type: metal
• Case material: aluminum
• Feedback type: potentiometer
• Operating voltage: 5 to 6.0V
• Control signal: PWM
• No-load speed (6V): 0.050 sec/60
• No-load current (6V): 110mA
• Stall torque (6V): 1.3kgfcm
• Stall current (6V): 660mA
• Operating angle: 180 (500-2500 usec)

Dimensions

• 15.2 x 12.85 x 21.45mm
• Wire length: JR 115mm / 28AWG
• Weight: 7.3g
• Waterproof: No

Fits
