105mm Aluminum Heavy-Duty Big Bore Shocks (2) - Hot Racing

TD105X06

105mm Aluminum Heavy-Duty Big Bore Shocks (2) - Hot Racing

Hot Racing Shock absorber

$30.17

Out of stock

Added ✓

30-day returns · Secure checkout by Stripe · We accept Visa, Mastercard, American Express, Discover, Apple Pay, Google Pay and Link

Whippy

Whippy checked: this one just sold out — check back soon.

About this part

Hot Racing 105mm big bore threaded aluminum shocks for many TRA and other 1/10 scale off-road vehicles that run 105mm shocks.

Features

CNC machined 6061-T6 billet aluminum bodies, collars, caps and spring retainers with threaded big bore bodies
CNC machined 11mm Delrin pistons
3.5mm stainless steel shafts
Gunmetal and blue anodized aluminum parts
Vented caps with bladder seals for consistent rebound damping
Threaded collars with o-rings to stop unwanted movement
Composite plastic lower ends with aluminum balls
Arrives fully assembled. Add oil and bleed.

You will receive

Two (2) assembled shocks
Two (2) M3x20mm flat head cap screws
Two (2) M3x18mm button head cap screws
Two (2) 3mm countersunk washers
Two (2) 5.9 hollow balls
Four (4) 1.5mm thick spacers
Four (4) 3mm thick spacers

Requirements

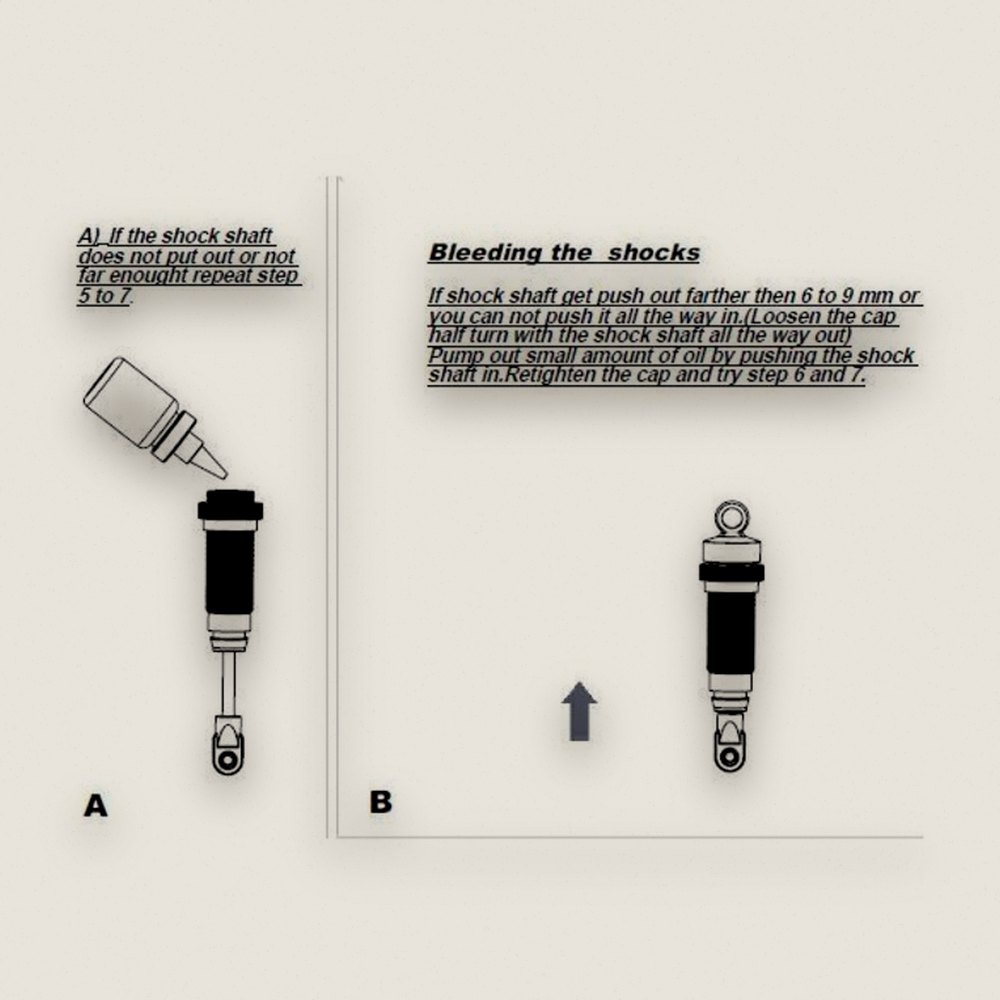

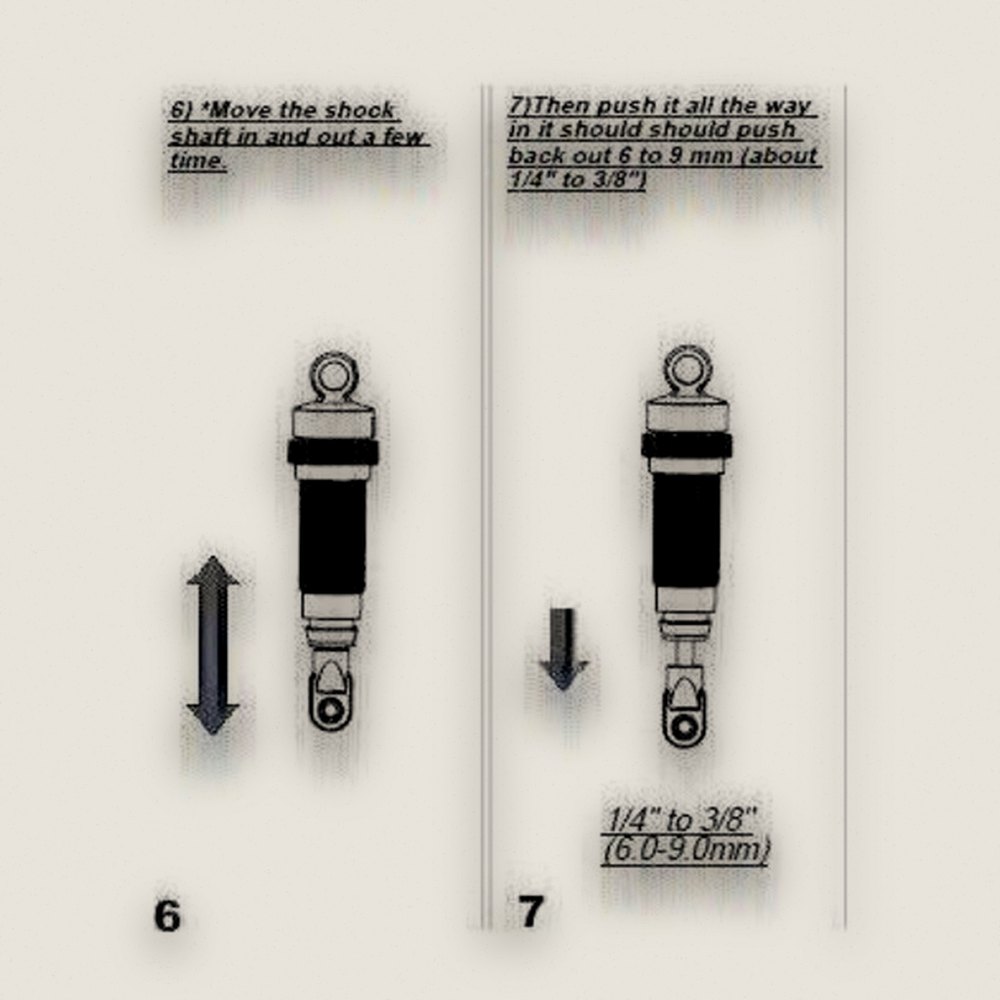

Silicone shock oil of modeler's choice, bled per the standard bladder shock procedure
Team Associated Green Slime grease or shock o-ring grease recommended when rebuilding the lower seal
Snap ring pliers needed for lower seal rebuilds

Specifications

Extended length: 105mm
Compressed length: 75mm
Overall length: 115mm
FITS:
Associated RC-10 T2 Truck
Associated RC-10 T3 Truck
Associated RC-1

Fits

Associated RC-10 T2 Truck Associated RC-10 T3 Truck Associated RC-10 T4.x Associated RC-10GT Factory Team, RTR Plus Associated RC-10GT RTR Blue Chassis Associated RC-10GT2 HPI Electric MT (electric)HPI Nitro Firestorm HPI Nitro RS4 Nitro MT HPI Nitro Rush EVO Losi 1:10 XXT TruckLosi 1:10 XXX-NT truckLosi 1:10 XXX-T CR Truck Traxxas E-Maxx Traxxas Rustler 2WD
