Clip-On Motor Heat Sink Fan, Blue, with Aluminum Base, for TRX272R - Hot Racing

About this part

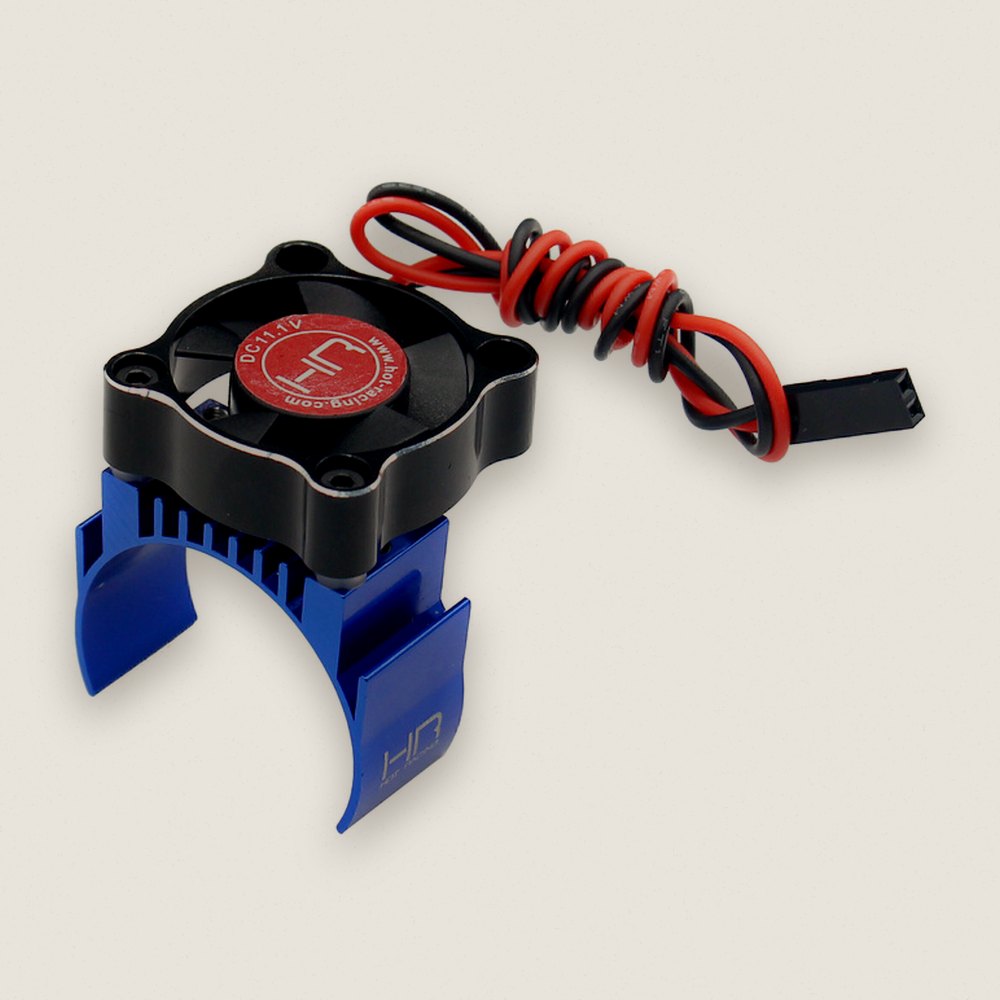

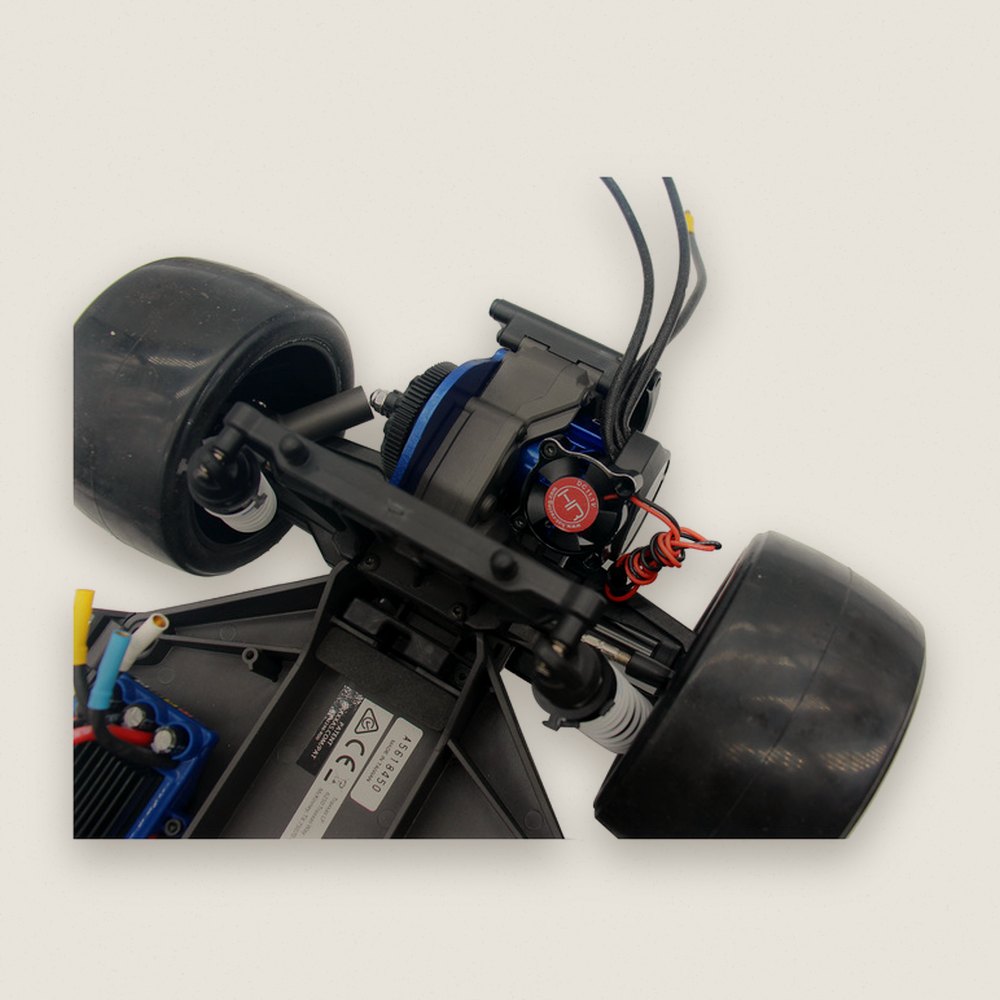

Hot Racing clip-on motor heat sink with an aluminum base fan, in blue, built for the TRA Pro Series Magnum 272R 2WD transmission. It clips onto 540 and 550 motors with a 36mm can and keeps the motor from cooking. The one-piece clip fits LCG setups.

Features

• Keeps the motor running cooler
• Aluminum construction, including the fan base
• Clip-on heat sink fits 540 and 550 motors with a 36mm can diameter
• One-piece clip for a secure, LCG-friendly fit
• Blue and black anodized
• Laser etched Hot Racing insignia

You will receive

• One (1) heat sink with aluminum cooling fan

Requirements

• Installation
• Some units need assembly with a 1.5mm and 2mm hex wrench
• Electrical hookup to a 7.2-11.1V MAX DC power source
• Plug requires soldering or connection to a receiver port plug

Specifications

• Overall height: 39mm (1.54 inch)
• Fan size: 30x30x7.5mm
• Fan mounting hole pattern: 24mm square
• Input voltage: DC 7.2-11.1V MAX

Comments

• Replacement 30x30x7.5mm cooling fan is Hot Racing

Fits
