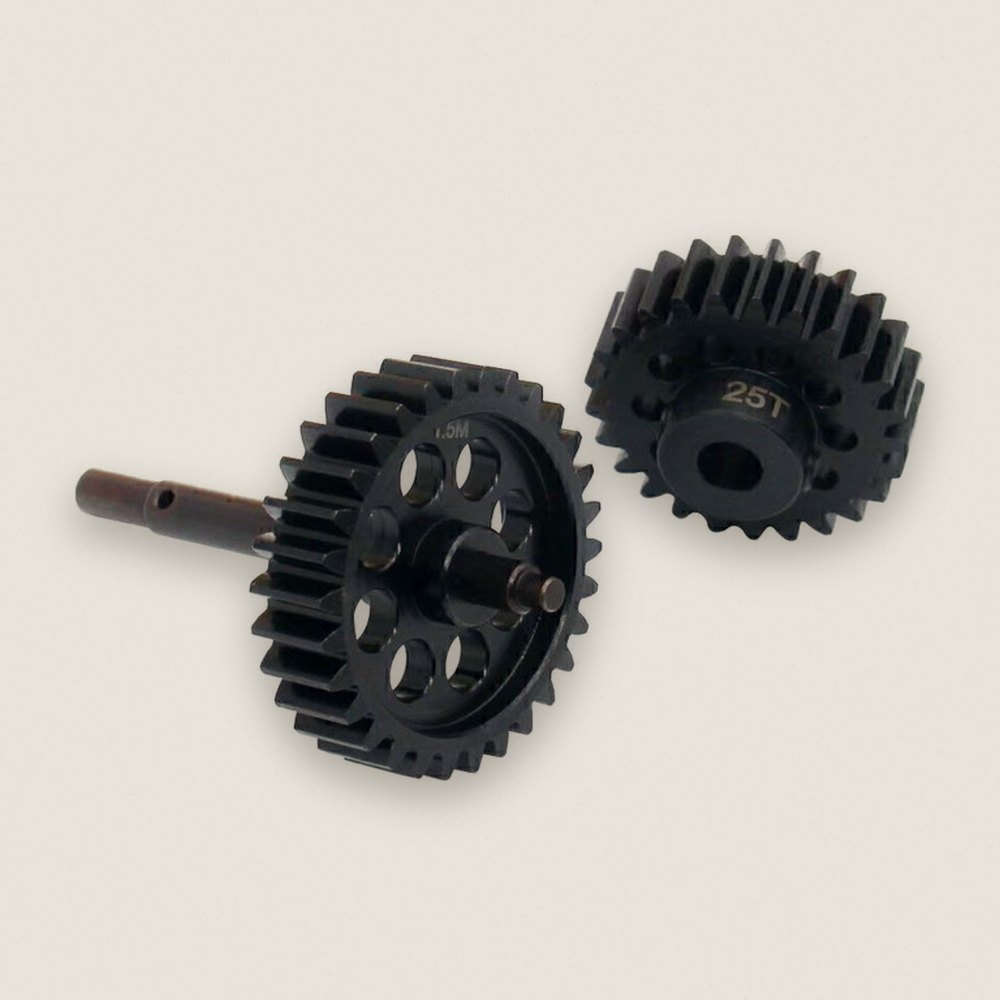

Direct Drive Conversion, 30 to 25T, M1.5, Triple Support, for X Maxx - Hot Racing

About this part

Triple support direct drive conversion for X Maxx. Swaps out the center cush drive damper and the stock gear system for a 30 to 25T M1.5 setup built for acceleration.

Features

• Triple support gear axle
• Blue anodized aluminum bearing support
• CNC machined solid 6061-T6 aluminum
• Designed to cut rotating mass and boost acceleration
• Allows for ultimate speed run acceleration
• Triple support input shaft

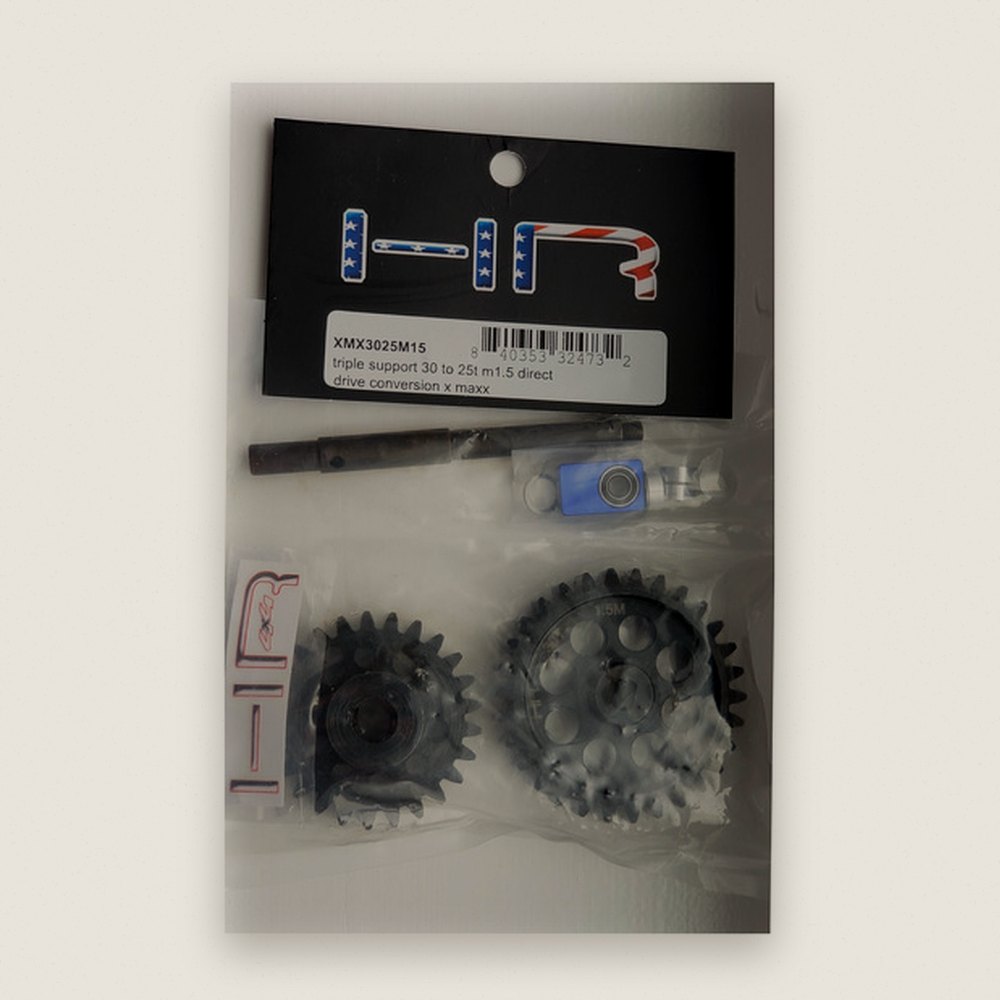

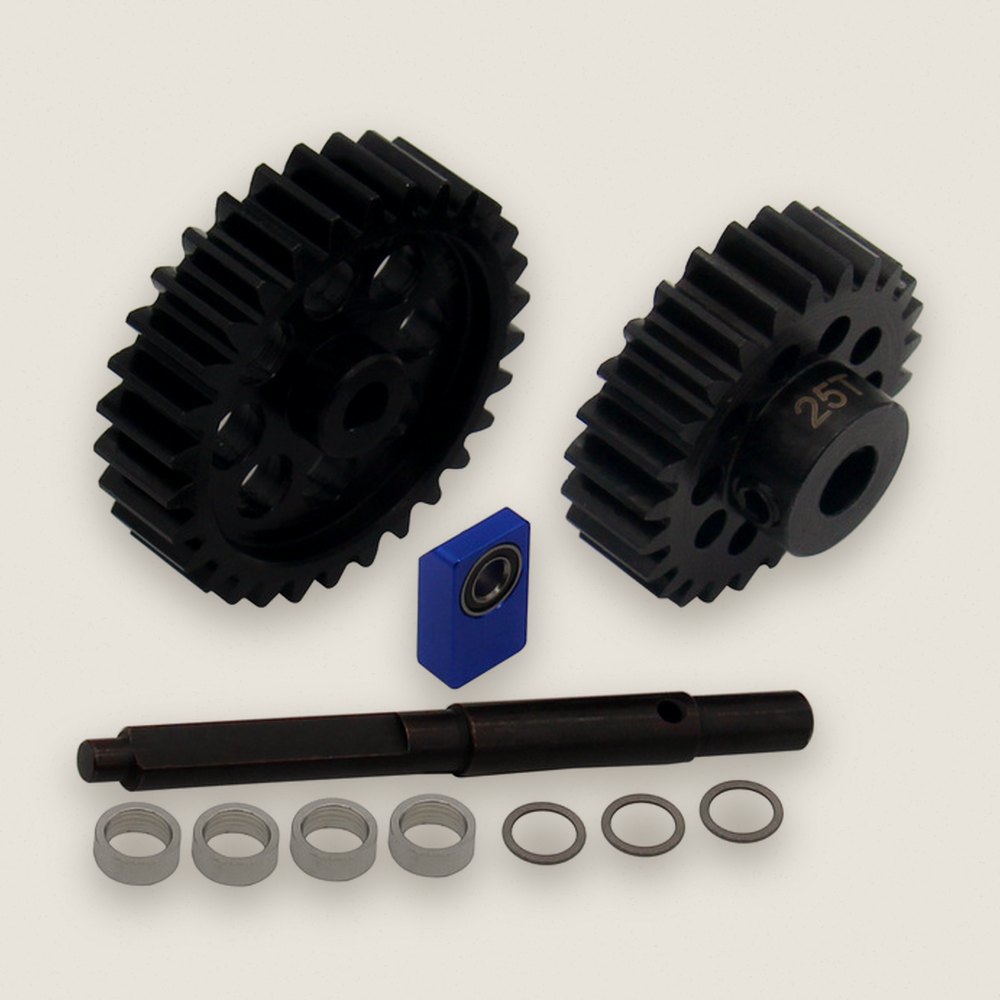

You will receive

• One (1) third bearing support with bearing
• One (1) steel triple support input shaft
• One (1) steel M1.5 30T spur gear
• One (1) steel M1.5 25T 8mm pinion gear
• Four (4) aluminum 3x6x8mm collars
• Two (2) steel 0.5mm 6x8mm shims

Requirements

• Medium blue threadlock on screws
• Requires an adjustable motor mount, such as XMX38AX01

Specifications

• Overall diameter: 30T spur gear 48.2mm, 25T 8mm pinion gear 40.7mm
• Gear face width: 12mm

Notes

• Not recommended for high traction surfaces.
• If you want to run the stock 5mm motor, you need NSG85R08.

Fits
