EC2 Device and Battery Connector - X-Spede

About this part

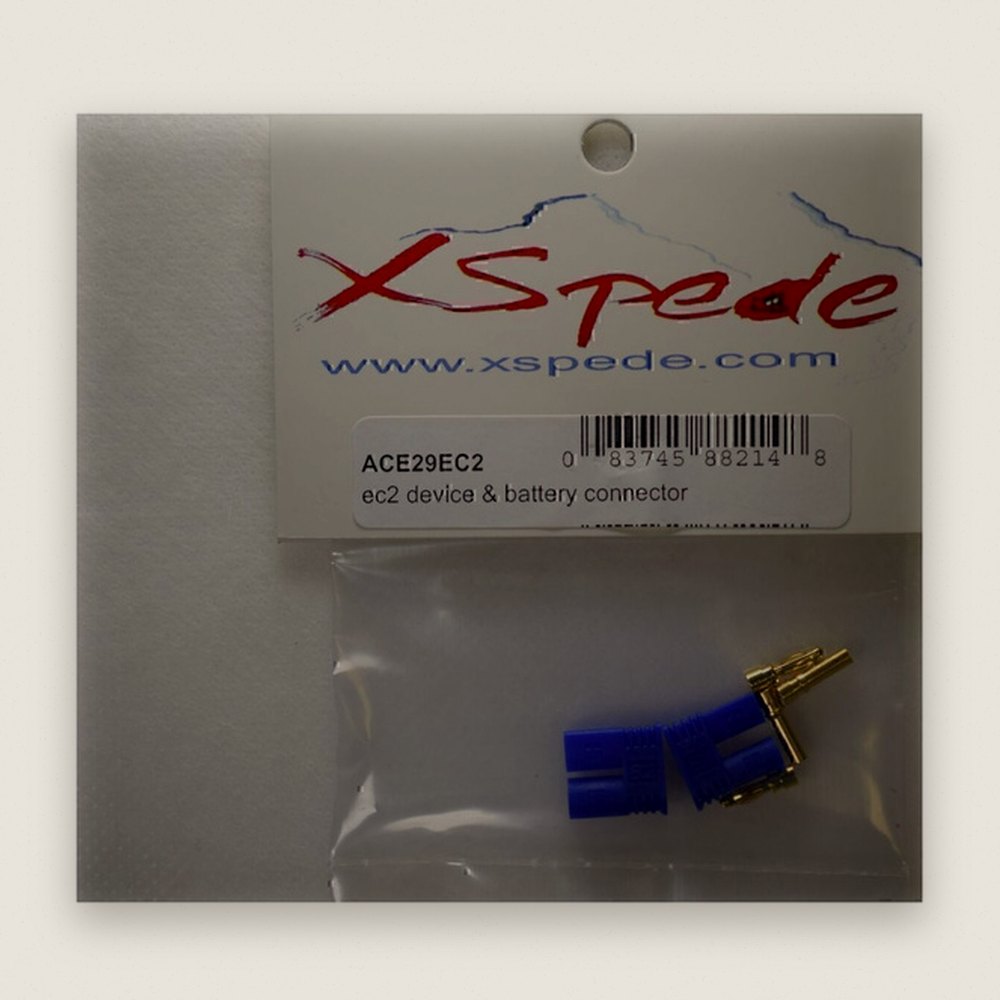

Battery-to-ESC connectors with real grip. This is the Team Integy EC2 skidproof 2mm connector set from X-Spede. The blue housing keeps the connection from walking loose under hard throttle.

Features

• Blue plastic housing with two 2mm diameter male and two 2mm diameter female connectors. Built for battery-to-ESC connections.

You will receive

• Two EC2 skidproof 2mm connectors.

Requirements

• You will need to solder your leads onto the connectors.

Note

• These contacts go in wire-side first. That is backwards from most other EC connector brands, so do not learn that the hard way.
• ASSEMBLY ORDER:
• 1. Thread the wire through the plastic housing.
• 2. Strip and tin the wire.
• 3. Pre-tin the contact, keeping the solder inside the cup.
• 4. Solder the wire into the contact.
• 5. Seat the contact into the housing.
