EC3 Device and Battery Connector - X-Spede

About this part

Skidproof EC3 connectors for when your battery has to stay put. This X-Spede EC3 skidproof 3.5 connector set uses a blue plastic housing with 3.5mm male and female contacts, built for battery-to-ESC hookups.

Features

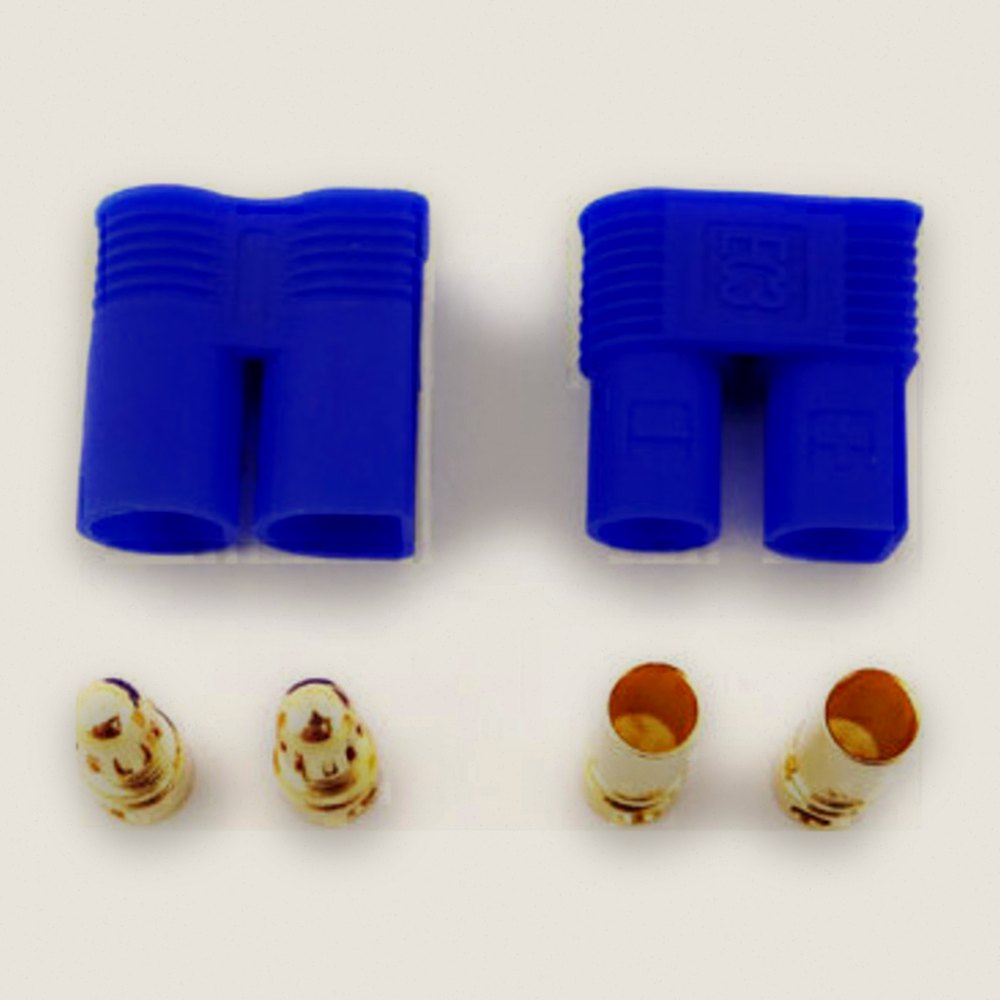

• Blue plastic housing with two 3.5mm diameter male and two 3.5mm diameter female connectors. Made for battery-to-ESC connections.

You will receive

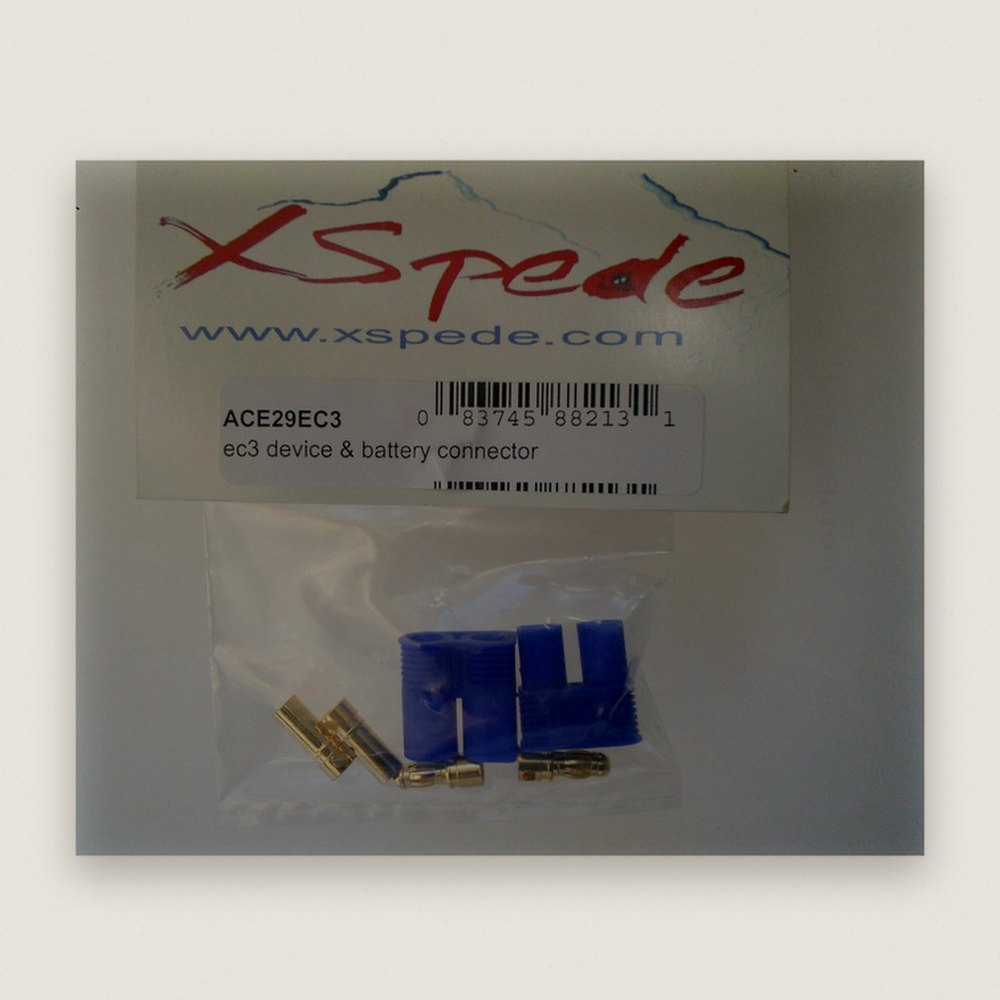

• Two EC3 skidproof 3.5 connectors.

Requirements

• You will need to solder your leads onto the connectors.

Note

• These contacts go in wire-side first. That is backwards from most other EC connector brands, so pay attention.
• ASSEMBLY ORDER:
• 1. Thread the wire through the plastic housing.
• 2. Strip and tin the wire.
• 3. Pre-tin the contact, keeping the solder inside the cup.
• 4. Solder the wire into the contact.
• 5. Seat the contact into the housing.
• FITS:
• Axial RR-10 Bomber
• Axial SCX-10 II
• Axial SCX-10 II Deadbolt
• Axial SCX-10 II RTR
• Axial SCX-10 Scale Truck
• Axial SMT10 Grave Digger
