Modular Differential Case, 31mm for Arrma - Hot Racing
AON11E02

Modular Differential Case, 31mm for Arrma - Hot Racing

Hot Racing Drive-train: gearbox and gears
$20.79
In stock
Added ✓

30-day returns · Secure checkout by Stripe · We accept Visa, Mastercard, American Express, Discover, Apple Pay, Google Pay and Link

Whippy
Whippy checked a few minutes ago:
it's in stock.
- Lock it in

About this part

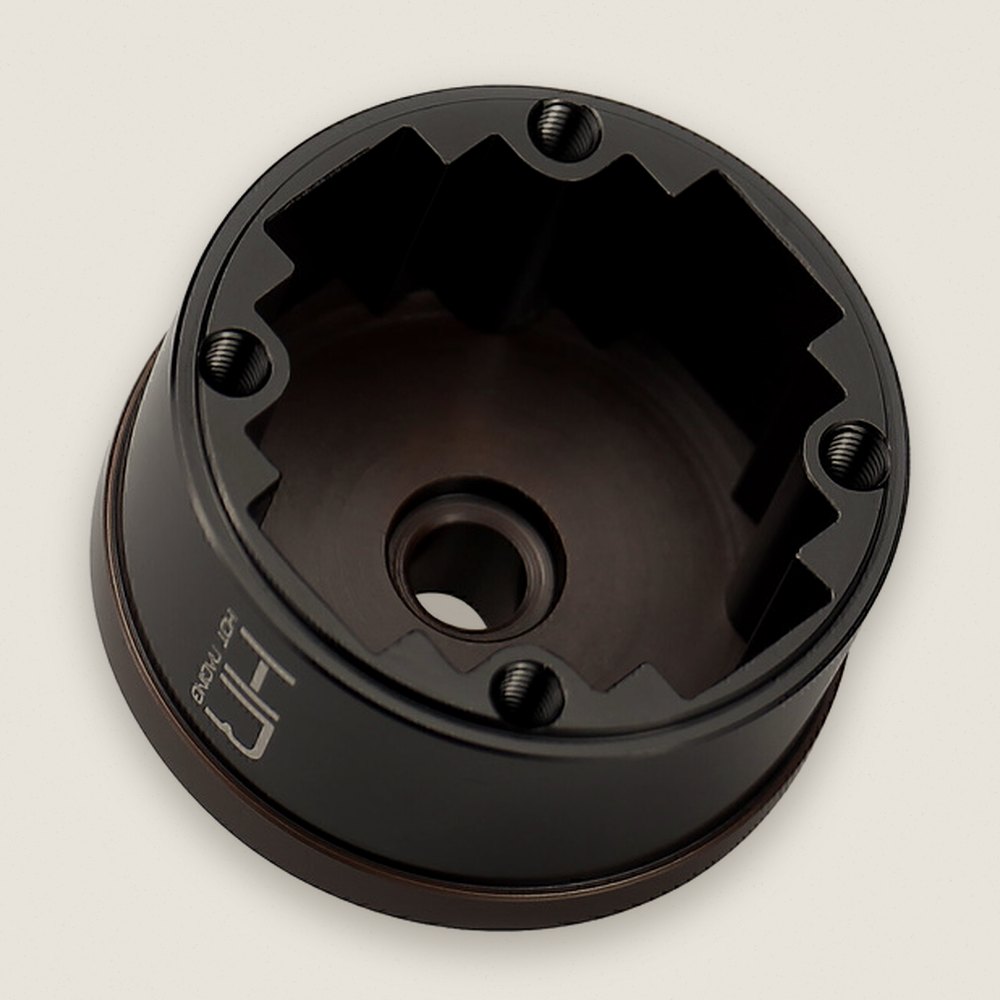

Hot Racing aluminum modular differential carrier for the 1/8 Arrma Kraton, Notorious, Outcast, Senton, Talion and Typhon BLX, plus the 1/7 LimitLess and InFraction. It fits the front, center or rear differential.

Features

  • CNC machined 6061 aluminum, anodized black
  • Steel pinion side plate for longevity
  • O-ring for a better seal and reusability
  • Fits the front, center or rear

You will receive

  • One differential carrier
  • Four ring gear screws
  • Two o-ring gaskets (one already installed)

Requirements

  • Replacement for Arrma AR310433
  • Reuse the spider and output gears (from AR310433), gaskets and o-rings, and ring/pinion
  • Medium thread lock on the screws
  • Do not overtighten
  • Use only silicone diff lube

Comments

  • Replacement o-ring. Replaces Arrma AR310433 or ARA220050 differential carrier.
  • KNOWN ARRMA PART NUMBERS:
  • Infraction: ARA109001
  • Kraton: AR106005, AR106015, AR106018, AR106029/31 (red/green), ARA106040T1/2 (red/blue)
  • Parts marked optional may fit but could need modification.

Fits

Arrma 1:10 4x4 Senton 6S BLXArrma 1:7 4x4 Mojave 6S BLX V5Arrma 1:7 FelonyArrma 1:7 Fireteam 6S BLX AssaultArrma 1:7 InfractionArrma 1:7 LimitlessArrma 1:7 MojaveArrma 1:8 4x4 Kraton BLX 6SArrma 1:8 4x4 Kraton BLX 6S V5Arrma 1:8 4x4 Notorious 6SArrma 1:8 4x4 Outcast 6S BLX V5Arrma 1:8 4x4 Outcast 8S BLX V5Arrma 1:8 4x4 Outcast BLX 6SArrma 1:8 4x4 Talion BLX 6SArrma 1:8 4x4 Talion BLX 6S V5

Replaces stock part

Arrma #220050Arrma #310433
