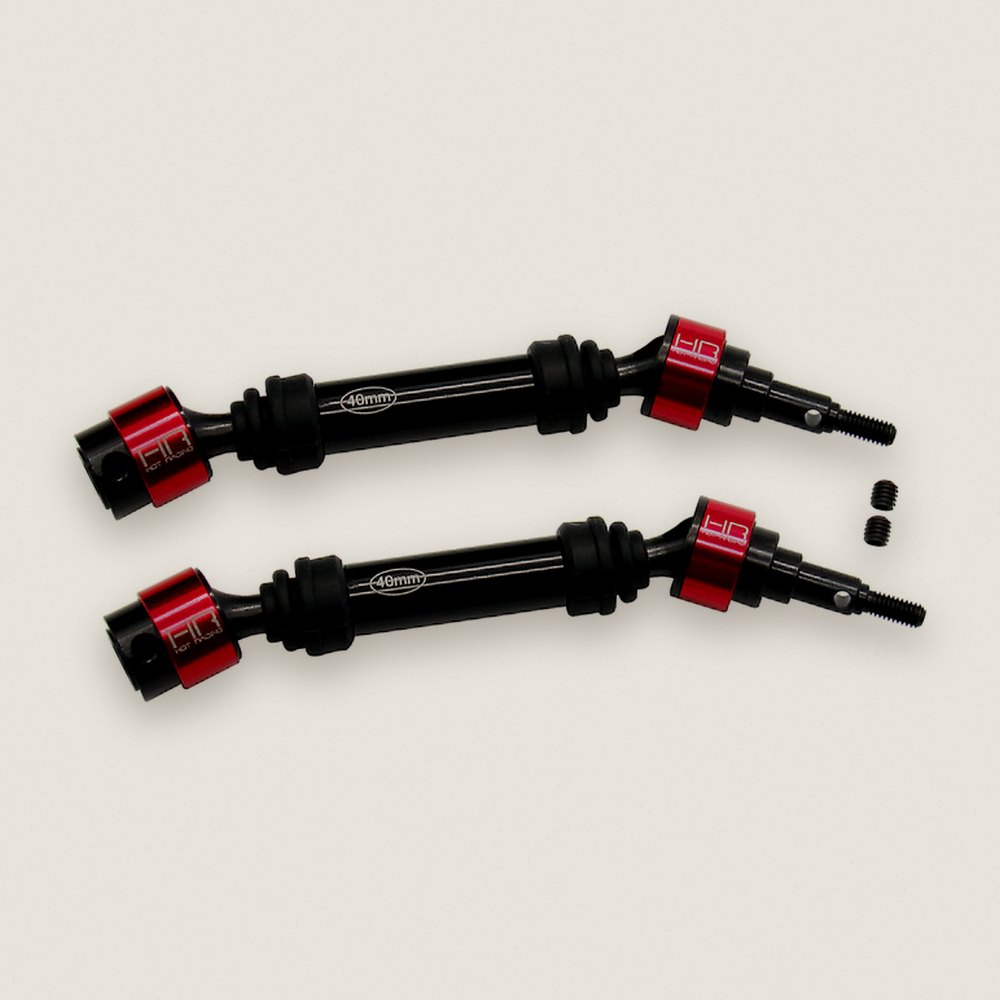

Splined CV Driveshafts, 40mm for 1/10 Arrma - Hot Racing

About this part

Hot Racing optional upgrade splined star drive axles, 40mm, for most 1/10 Arrma trucks. Check the fit notes below before you bolt them in.

Features

• Replaces the stock diff outdrives and factory plastic axles
• CNC machined, hardened S2 spring steel wheel axle stubs
• Hard anodized black aluminum 45mm slider
• Red anodized aluminum pin capture rings with rubber o-rings so nothing walks
• Rubber dust boot keeps the lube in and the grit out
• Fits front or rear
• IN THE BOX:
• Two (2) CVD 40mm shaft assemblies
• Two (2) M4x4mm set screw shafts
• YOU NEED:
• Hot Racing CV shafts go on the Arrma out drive. Blue threadlocker on any screw that threads into metal. Light grease on the CV joints and slider splines keeps them alive.
• SPECS:
• Approximate overall collapsed length: mm

Notes

• Replaces stock front shafts AR310780 + AR3010784, and rear shaft AR310864 + AR3010784. Only works with the diff outdrive AR310775.
• FITS: Arrma 1:10 2WD Gorgon, 4x4 Bigrock 3S BLX, Granite 3S BLX, Granite Mega, Senton 3S BLX, Senton Mega SC

Fits

Replaces stock part
