Front CV Splined Axles, Steel Drive Shaft for TRA UDR - Hot Racing

About this part

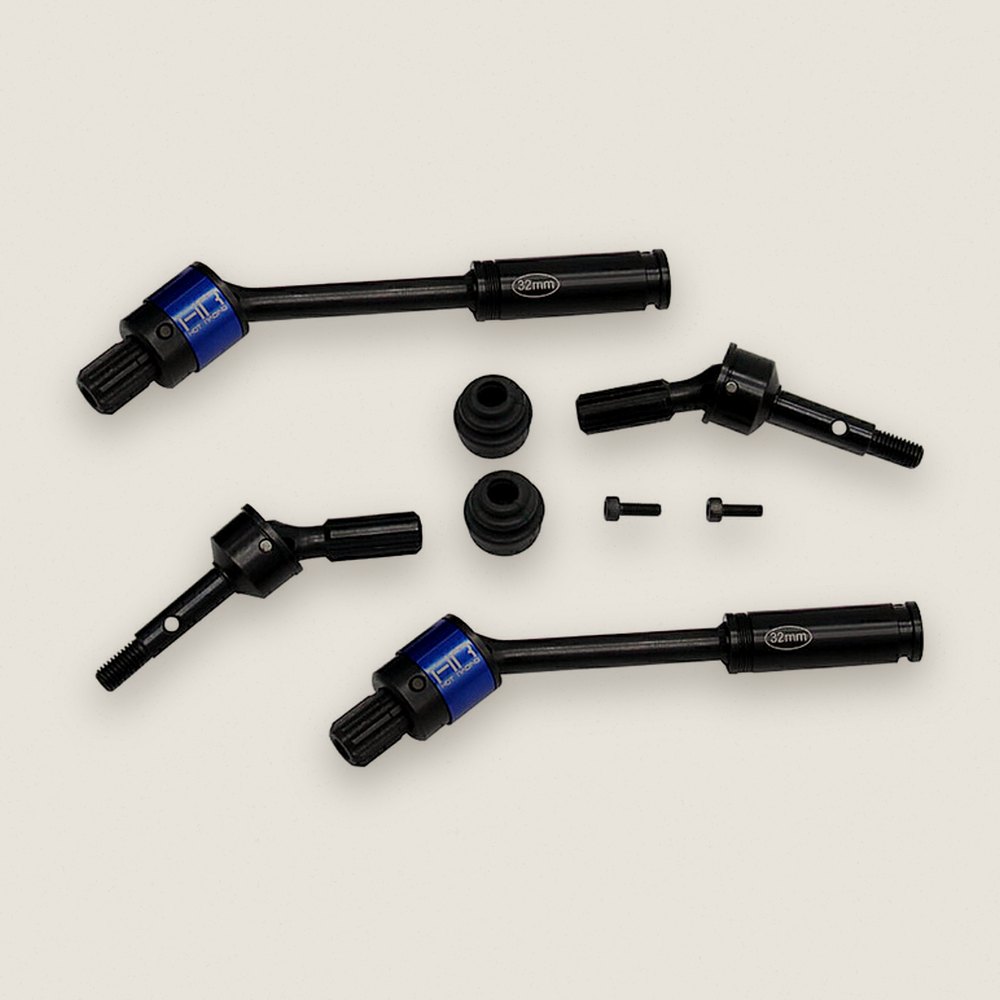

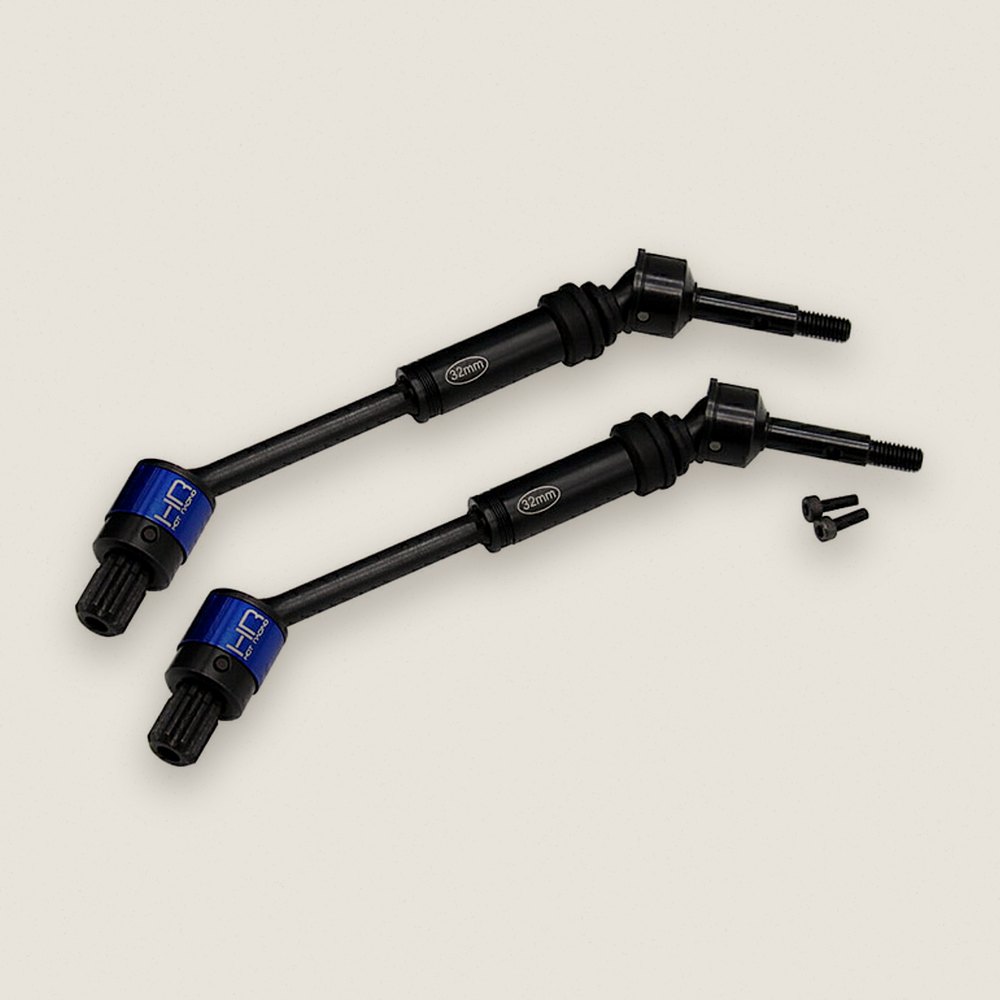

Hot Racing optional upgrade heavy duty front splined star drive CVD axle kit for the TRA Unlimited Desert Racer. Replaces the factory dogbone axles from the differential all the way out to the wheel hex. Fits: Traxxas Unlimited Desert Racer UDR CNC machined #45 hardened carbon steel CVs, drive hub, male slider spline, and stub axle. CNC machined aluminum slider tube. Blue anodized aluminum pin capture rings with rubber o-rings to stop movement. IN THE BOX: Two front splined CVD shaft assemblies Two M2.5 x 7mm screw cap heads NEEDS: Installation to the drive assembly Reuses the drive pins Grease the CV joint and shaft spline Medium threadlock on screws going into metal

Specifications

• Collapsed length, overall: 154mm
• Extended length, overall (zero shaft engagement): 164mm
• Collapsed length, wheel pin to outdrive pin: 138mm
• Extended length, wheel pin to outdrive pin (zero shaft engagement): 148mm
• Weight per pair: 132g
• Replaces TRA axle parts 8551 (drive cup and screw), 8550 (dogbone), 8553 (stub axle), and 8554 (CV joint).
• Hot Racing replacement drive hub screw shafts are M4x2.5x15mm.
