Helical Diff Ring and Pinion, Light-Weight Steel for BLX 3S 4S - Hot Racing

About this part

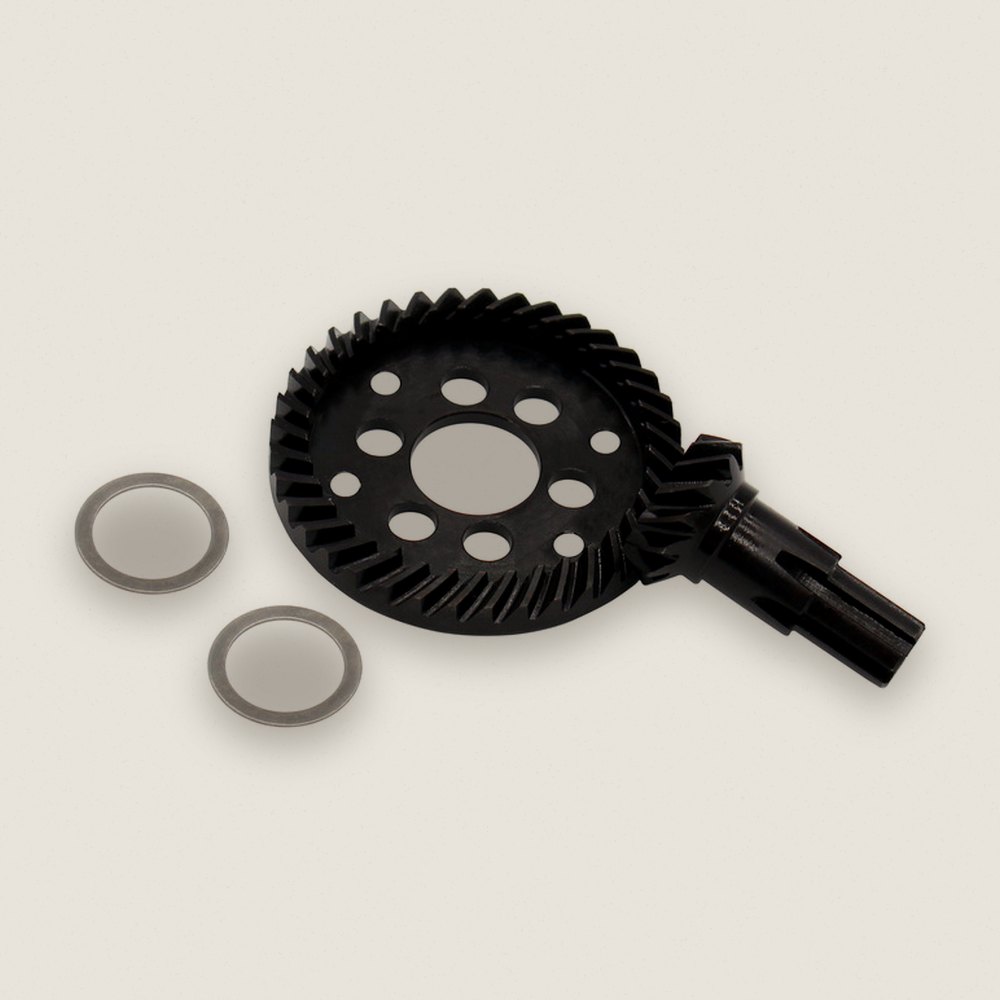

Lightweight steel helical 37T/13T ring and pinion set for Arrma 1/10 4WD. Same stock ratio, same helical bite, and it weighs in lighter than the standard set.

Features

• Precision machined helical spiral cut gears, stronger and smoother than factory bevels
• High carbon steel build
• Stronger than stock plastic bevel gears
• Keeps the stock 37T/13T ratio
• IN THE BOX:
• One (1) 37 tooth diff spiral cut ring gear
• One (1) 13 tooth spiral cut pinion gear
• YOU NEED:

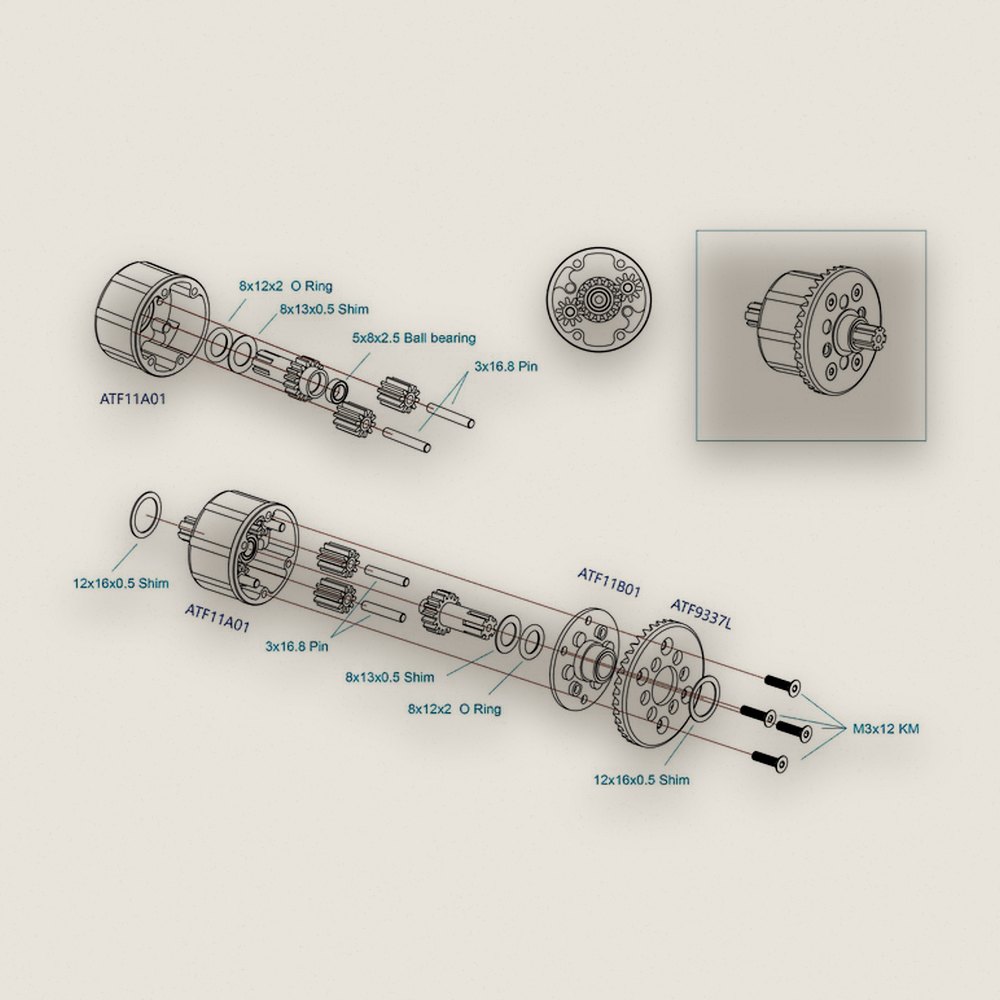

• ARAC4023 composite diff case or ATF11A01 + ATF11B01. Follow the kit manual. Medium blue threadlocker if screws thread into metal. Hot Racing SPL10G05 high temp grease for the diff gear. Silicone diff fluid inside the gear diffs.
• SPECS:
• Weight: 1.44oz (41g)

Notes

• Does not work with vehicles using ARA311165 or ARA-1147.
• Replaces plastic bevel gears.
• FITS: Arrma 1:10 4x4 Bigrock 3S BLX, Bigrock 3S V3, Bigrock V3 3S BLX, Granite 3S BLX, Granite Mega, Kraton 4S BLX
