Spur Gear, 46t Mod 1 Steel for E Revo 2 XO-1 - Hot Racing

About this part

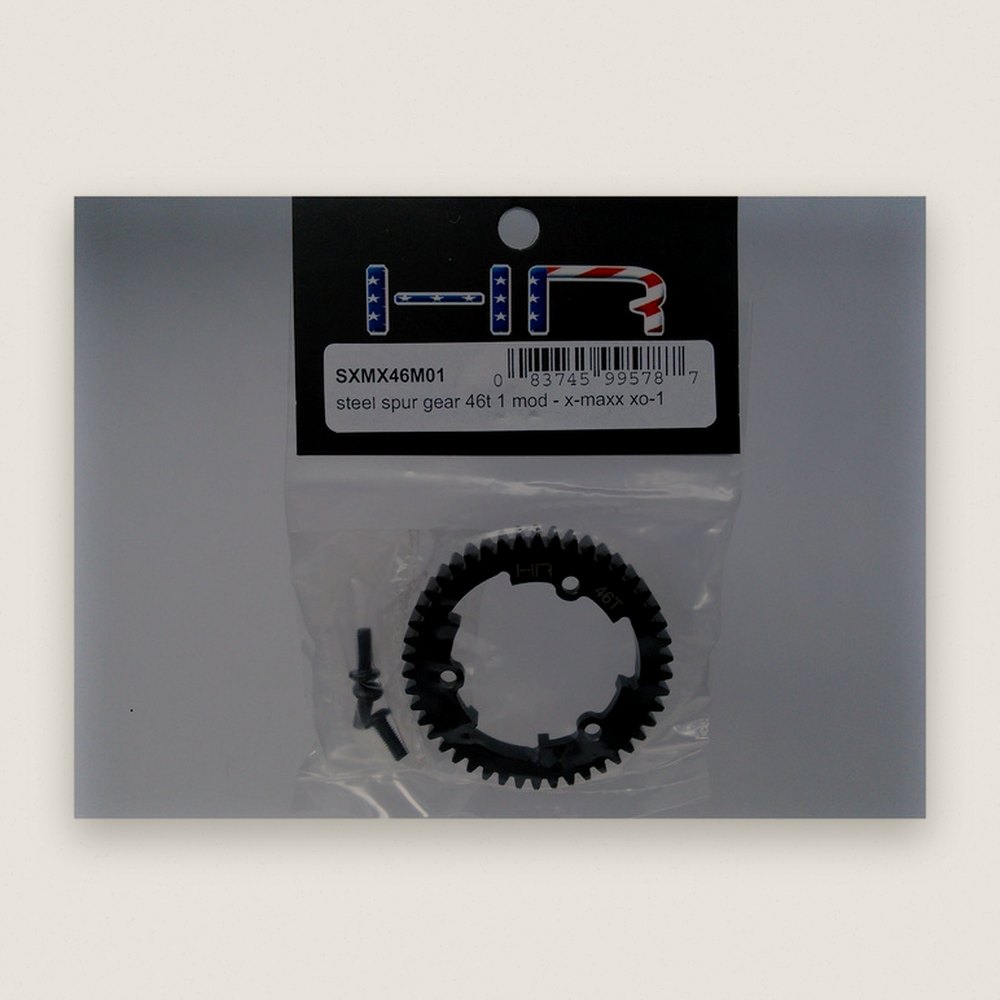

Hot Racing 46 tooth hardened steel mod 1 (1.0 metric pitch) spur gear for the TRA E-Revo2 (6S and 8S), Maxx 4S, XO-1, XRT and Sand Car. Black oxide finish, laser etched tooth count, and it's a direct swap for the plastic 6447 or 6447X 54T spur.

Features

• CNC machined hardened steel construction
• Black oxide finish
• Laser etched tooth count marking
• YOU GET:
• One 46 tooth, 1.0 modulus steel spur gear

Requirements

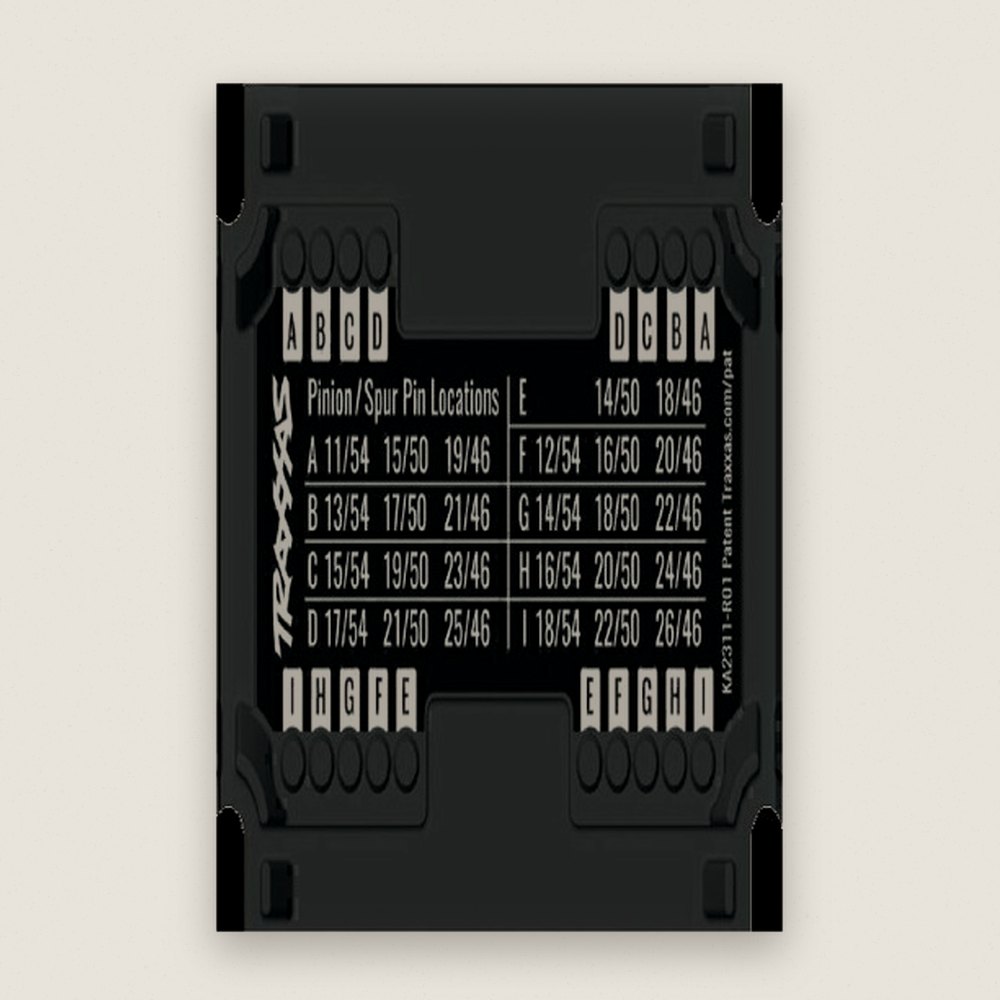

• Do NOT use the pin system to set gear mesh. Set it by hand without the pins, per the TRA manual (ref. pg. 22, Adjusting Gear Mesh).
• With the pins removed, loosen the four 4x16mm button-head cap screws on the bottom. Run a narrow strip of notebook paper into the mesh, slide the motor and pinion into the spur gear, then tighten the four cap screws and pull the paper. A fresh strip should run through without binding.

Specifications

• Overall diameter: 48.7mm
• Gear face width: 8mm

Comments

• Replaces TRA plastic 6447 or 6447X 54T spur gear
• FITS:
• Traxxas E-Revo 2.0, Traxxas Maxx, Traxxas Maxx Slash, Traxxas Pro Scale 2WD Sand Car, Traxxas X-Maxx, Traxxas X-Maxx 8S
