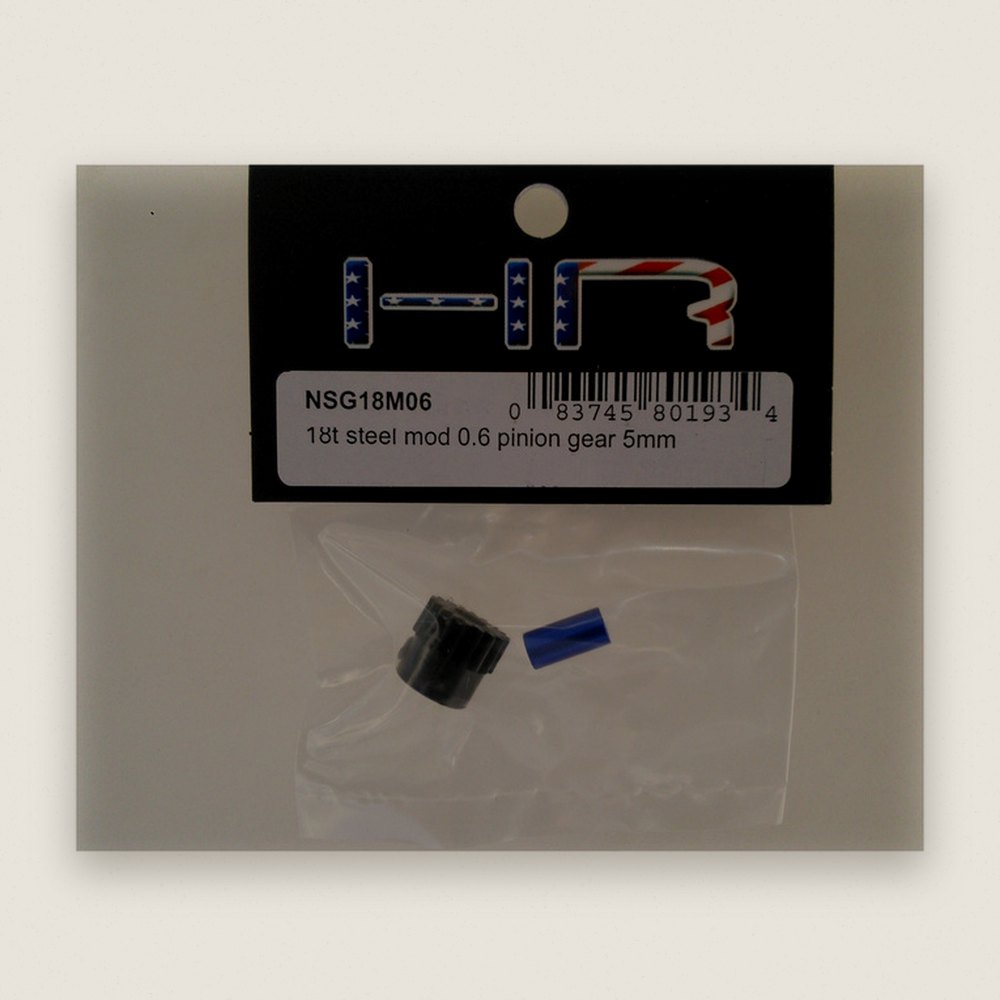

Pinion Gear, 18-Tooth Steel Mod 0.6 5mm - Hot Racing

About this part

Eighteen teeth, 0.6 module, CNC steel with a black nitride finish. Runs on 5mm or 1/8in motor shafts thanks to the included adapter sleeve. Heavy duty 4mm set screw, long hub for real shaft contact, and the tooth count is laser marked so you know what you've got.

Features

• CNC machined steel with black nitride finish
• Heavy duty 4mm set screw
• Long hub for maximum motor shaft contact
• Laser-marked tooth count
• Includes a 5mm-to-1/8in shaft adapter for both shaft sizes
• IN THE BOX:
• One (1) 18T, 0.6 mod pinion gear
• One (1) M4x4mm set screw
• One (1) 5mm-to-1/8in conversion sleeve

Requirements

• 2mm hex wrench for the set screw
• Removable blue threadlock recommended on the set screw

Specifications

• Teeth: 18
• Pitch: 0.6 module (~42P)
• Length: 10.5mm
• Outside diameter: 12mm
• Tooth face width: 5mm
• FITS:
• HPI Electric E10
• Tamiya Bruiser
• Tamiya CR-01 Crawler FJ40
• Tamiya F-150/S-10
• Tamiya FF-03
• Tamiya Hi-Lift: F350 Tundra HiLux
