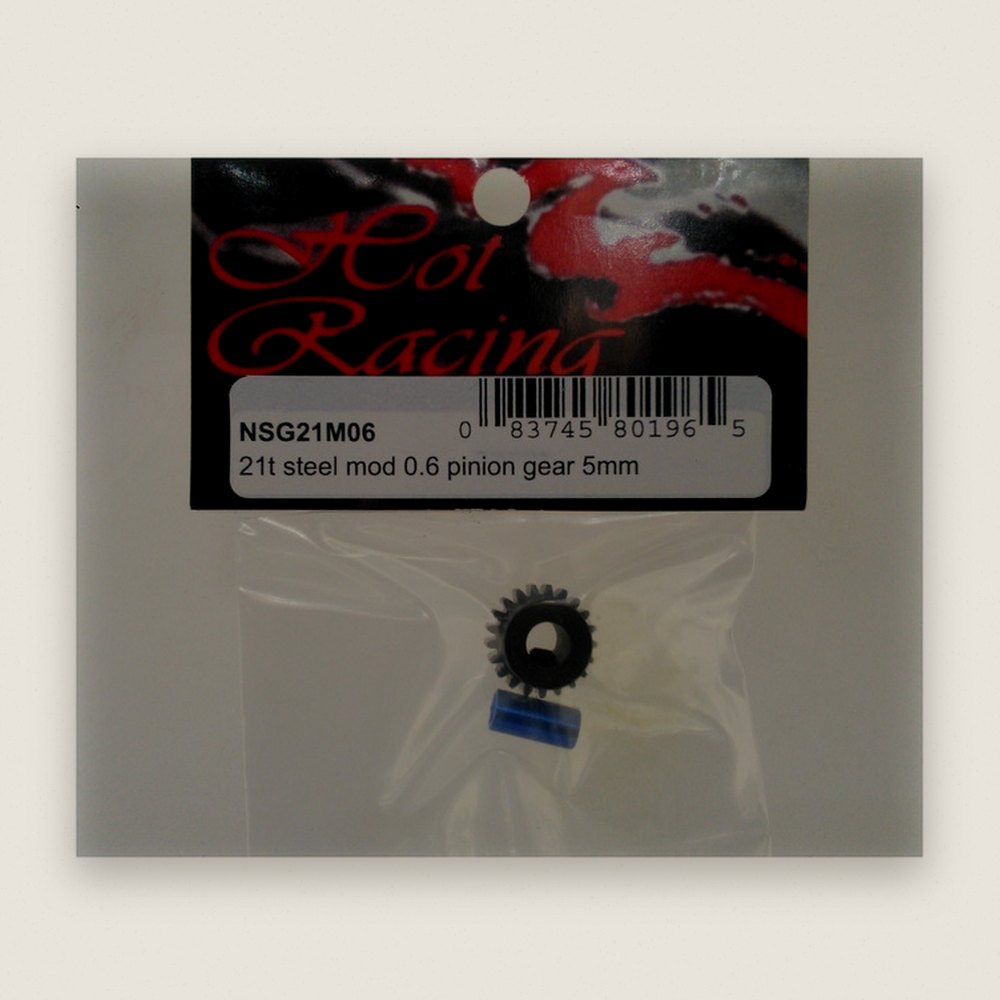

Pinion Gear, 21-Tooth Steel Mod 0.6 5mm - Hot Racing

About this part

Twenty-one teeth, 0.6 module, black nitride steel. Runs on 5mm or 1/8in motor shafts with the sleeve included. Hot Racing added the heavy duty set screw, long hub for shaft grip, and a laser-marked tooth count so you know exactly what's in your hand.

Features

• CNC machined steel with black nitride finish
• Heavy duty 4mm set screw
• Long hub for maximum motor shaft contact
• Laser-marked tooth count
• Includes a 5mm-to-1/8in shaft adapter for both shaft sizes
• IN THE BOX:
• One (1) 21T, 0.6 mod pinion gear
• One (1) M4x4mm set screw
• One (1) 5mm-to-1/8in conversion sleeve

Requirements

• 2mm hex wrench for the set screw
• Removable blue threadlock recommended on the set screw

Specifications

• Teeth: 21
• Pitch: 0.6 module (~42P)
• Length: 10.5mm
• Outside diameter: 13.8mm
• Tooth face width: 5mm
• FITS:
• Tamiya TA01, TA02, TL-01, TA02W, TA03, F-150/S-10
