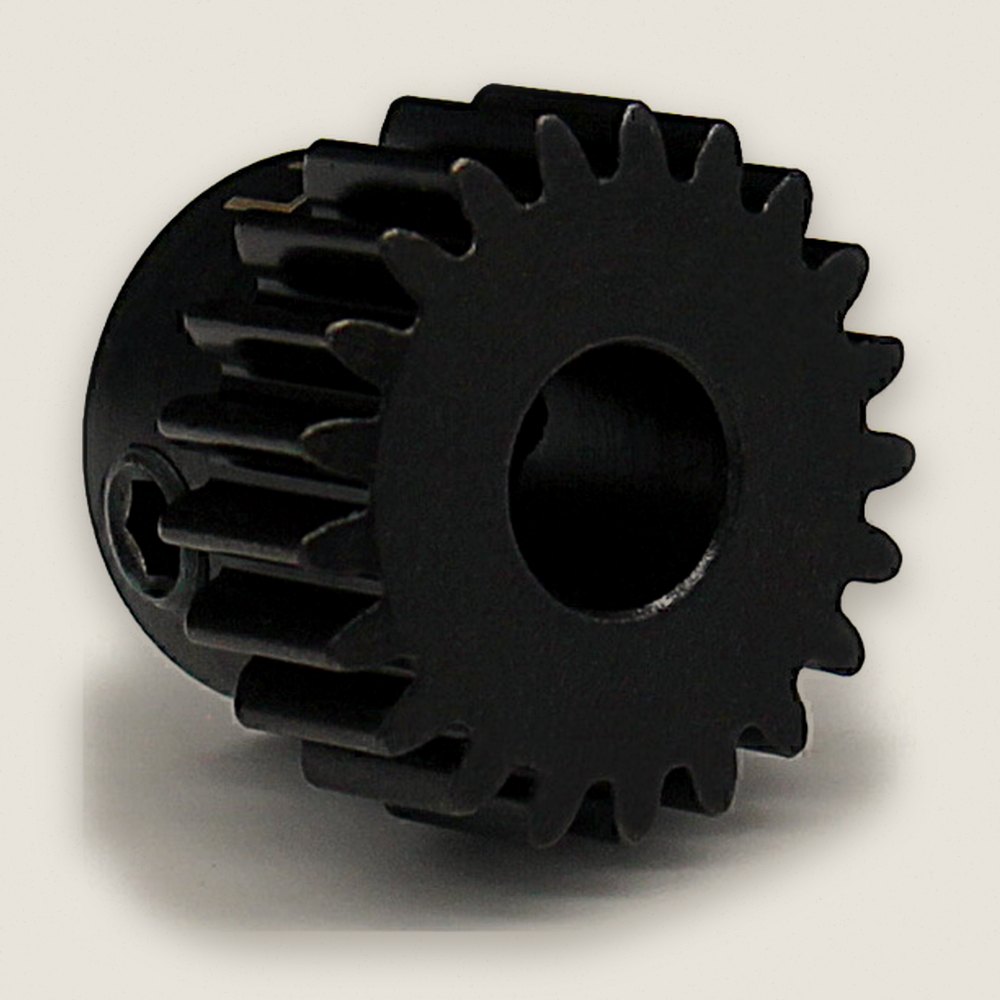

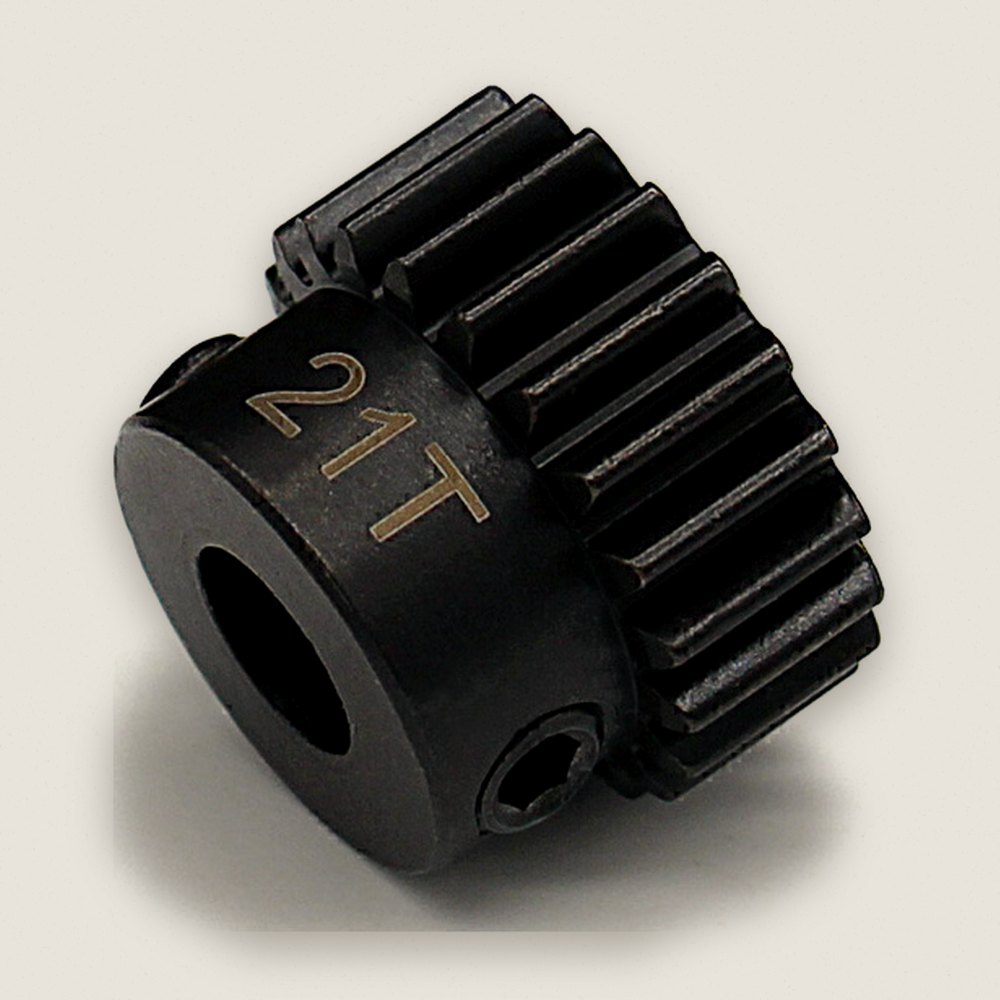

Pinion Gear, 21-Tooth Steel Mod 1 8mm Bore - Hot Racing

About this part

Twenty-one teeth, Mod 1.0, precision CNC cut from hardened steel. The 8mm bore is for large scale rigs and other heavy builds. Black oxide coating fights corrosion. Only one of the two set screws is needed to install it.

Features

• Precision CNC machined
• Black oxide coating for corrosion resistance
• IN THE BOX:
• One (1) 21T Mod 1.0 pinion gear
• Two (2) M6x6mm set screws

Requirements

• Medium-strength blue threadlock for the set screw
• 3mm hex wrench
• Only one set screw is needed for installation

Specifications

• Teeth: 21
• Pitch: 1.0 module
• Length: 17
• Gear face width: 9mm
• Bore diameter: 8mm
• FITS:
• Arrma 1:7 Big Rock 6S
• Arrma 1:7 Felony
• Arrma 1:7 Infraction
• Arrma 1:7 Limitless
• Arrma 1:7 Mojave
• Arrma 1:8 4x4 Kraton BLX 6S V5
