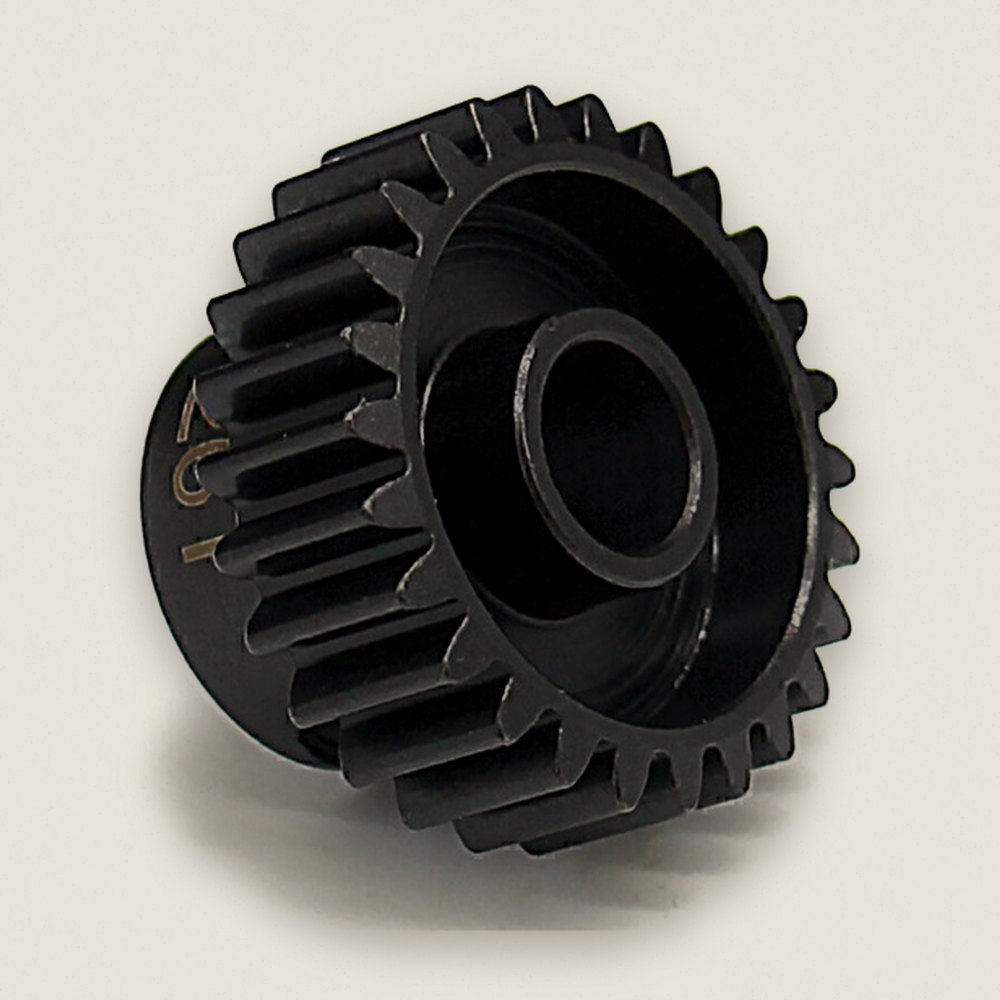

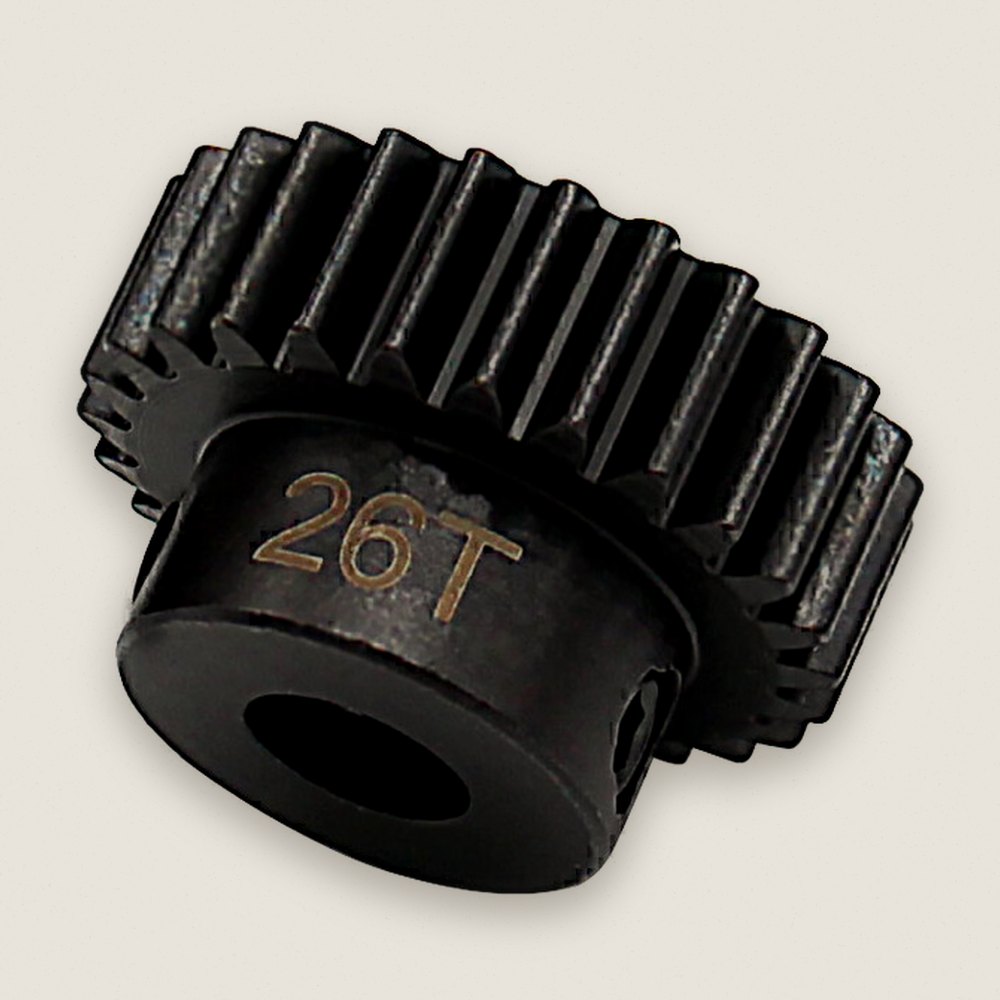

Pinion Gear, 26-Tooth Steel Mod 1 8mm Bore - Hot Racing

About this part

Twenty-six teeth, Mod 1.0, hardened steel, precision CNC cut. The 8mm bore suits large scale vehicles and other applications. Black oxide coating for corrosion resistance. One of the two set screws is all you need.

Features

• Precision CNC machined
• Black oxide coating for corrosion resistance
• IN THE BOX:
• One (1) 26T Mod 1.0 pinion gear
• Two (2) M6x6mm set screws

Requirements

• Medium-strength blue threadlock for the set screw
• 3mm hex wrench
• Only one set screw is needed for installation

Specifications

• Teeth: 26
• Pitch: 1.0 module
• Length: 17
• Gear face width: 9mm
• Bore diameter: 8mm
• FITS:
• Arrma 1:7 Big Rock 6S
• Arrma 1:7 Felony
• Arrma 1:7 Infraction
• Arrma 1:7 Limitless
• Arrma 1:7 Mojave
• Arrma 1:8 4x4 Kraton BLX 6S V5

Fits
