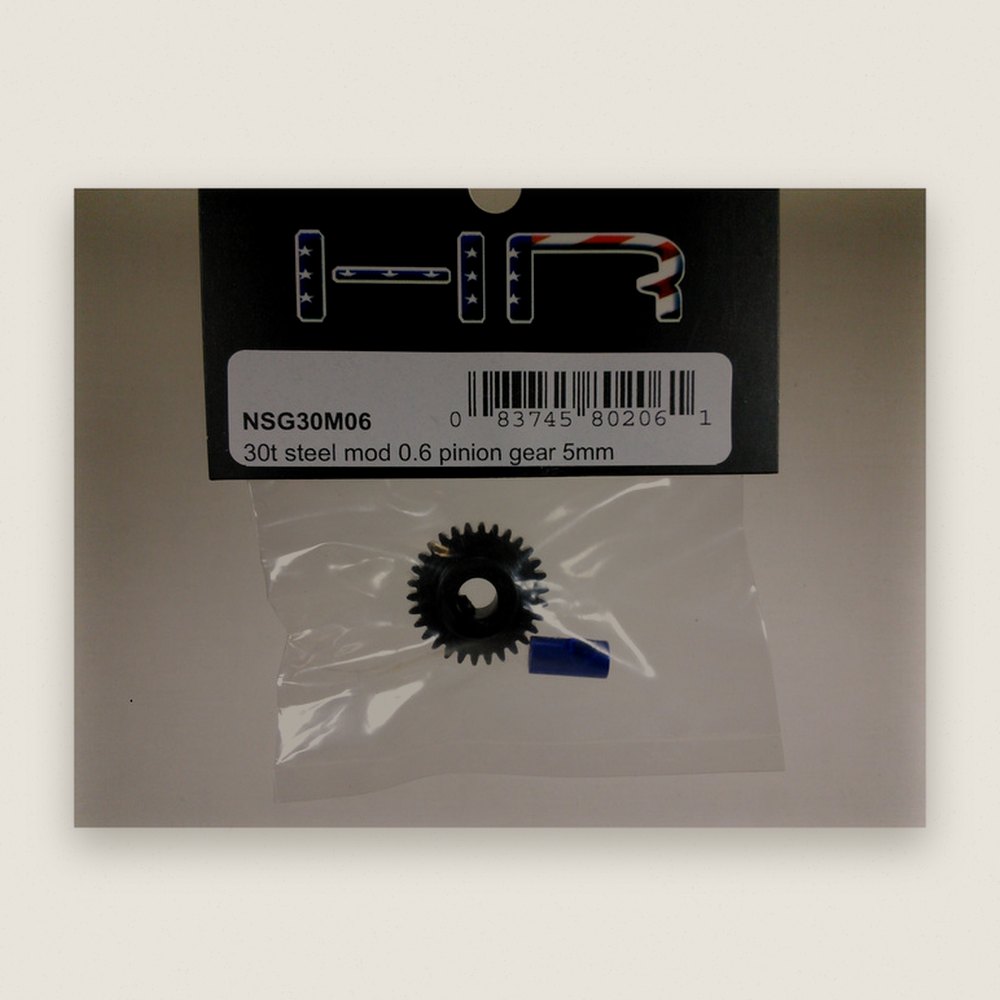

NSG30M06Pinion Gear, 30-Tooth Steel Mod 0.6 5mm - Hot Racing
Hot Racing Gears - Pinions
$14.76
In stock
30-day returns · Secure checkout by Stripe · We accept Visa, Mastercard, American Express, Discover, Apple Pay, Google Pay and Link
Whippy checked a few minutes ago:
it's in stock.
- Lock it in
About this part
Hot Racing 30T, 0.6 module (~42P) steel pinion for 5mm or 1/8in motor shafts. Long hub, black nitride finish, and a shaft adapter included.
Features
- CNC machined steel with a black nitride finish
- Heavy duty 4mm set screw
- Long hub for maximum motor shaft contact
- Laser-marked tooth count
- Includes a 5mm-to-1/8in shaft adapter
- IN THE BOX:
- One 30T, 0.6 mod pinion gear
- One M4x4mm set screw
- One 5mm-to-1/8in conversion sleeve
Requirements
- 2mm hex wrench for the set screw
- Removable thread locker (blue threadlocking compound) on the set screw is recommended
Specifications
- Teeth: 30
- Pitch: 0.6 module (~42P), length 10.4mm
- Outside diameter: 19.2mm
- Tooth face width: 5mm
- FITS:
- OFNA Hyper 9 Buggy
