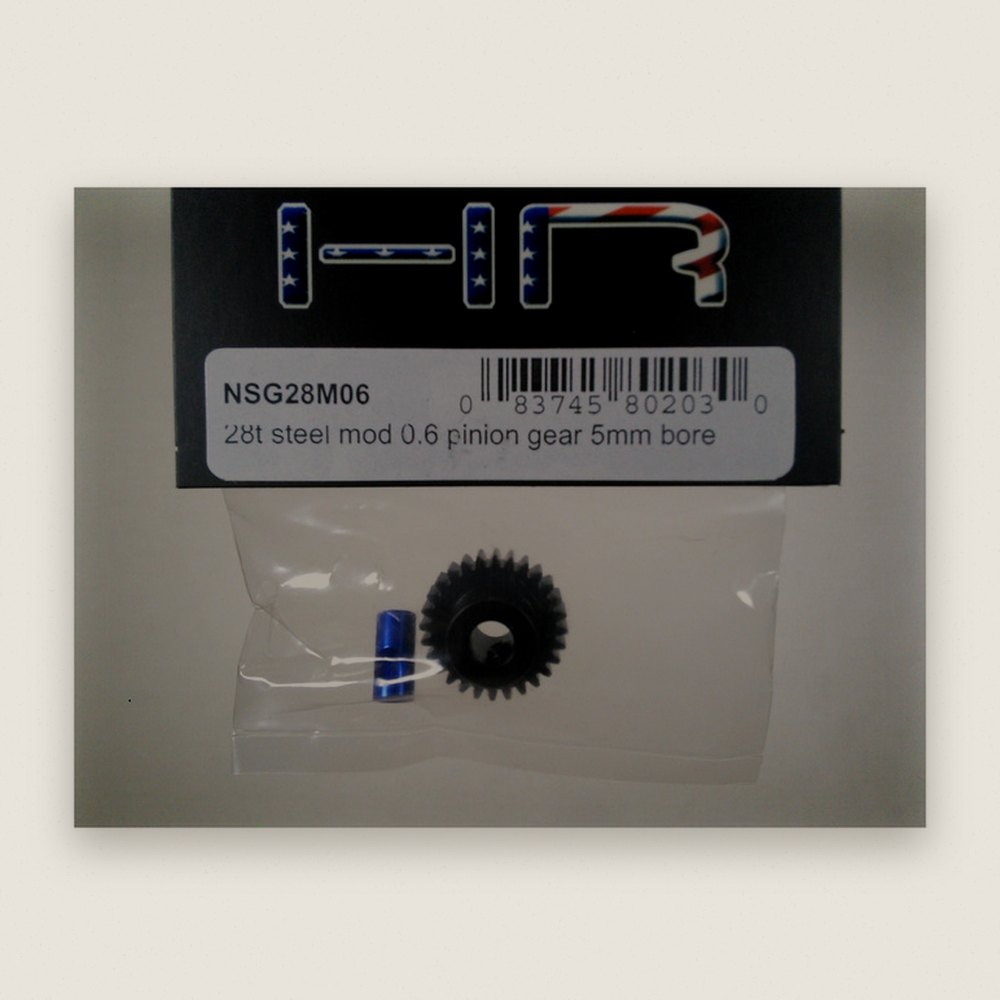

Pinion Gear, 28-Tooth Steel Mod 0.6 5mm Bore - Hot Racing

About this part

Hot Racing 28T, 0.6 module (~42P) steel pinion for 5mm or 1/8in motor shafts. Long hub, black nitride finish, and a shaft adapter in the box so it runs on either shaft size.

Features

• CNC machined steel with a black nitride finish
• Heavy duty 4mm set screw
• Long hub for maximum motor shaft contact
• Laser-marked tooth count
• Includes a 5mm-to-1/8in shaft adapter
• IN THE BOX:
• One 28T, 0.6 mod pinion gear
• One M4x4mm set screw
• One 5mm-to-1/8in conversion sleeve

Requirements

• 2mm hex wrench for the set screw
• Removable thread locker (blue threadlocking compound) on the set screw is recommended

Specifications

• Teeth: 28
• Pitch: 0.6 module (~42P), length 10.5mm
• Outside diameter: 17.9mm
• Tooth face width: 5mm
• FITS:
• Tamiya TA01
• Tamiya TA02
• Tamiya TL-01
• Tamiya TA02W
• Tamiya TA03
• Tamiya F-150/S-10
