Pinion Gear, 26T Steel 32P 5mm Bore - Hot Racing

About this part

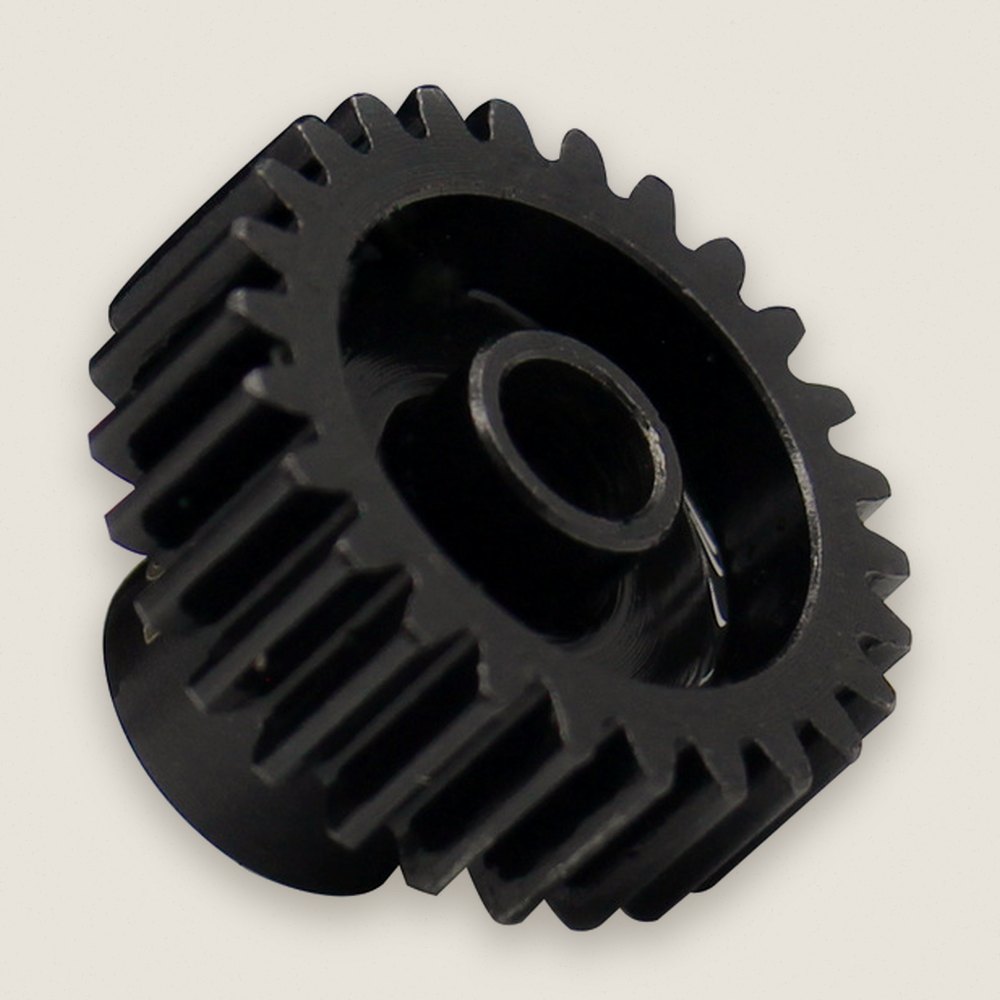

Hot Racing 26-tooth, 32 pitch hardened steel pinion for motors with a 5mm shaft. Steel that stays sharp for the Arrma 1:10 4x4 lineup.

Features

• CNC machined
• Hardened steel for wear resistance and fatigue life
• Nitrided for extra hardness and corrosion resistance
• IN THE BOX:
• One pinion gear
• One M4x4mm set screw

Requirements

• 2mm hex wrench for the set screw
• Removable thread locker (such as blue threadlocking compound) on the set screw
• Motor with a 5mm shaft
• 32 pitch spur gear

Specifications

• Tooth count: 26
• Tooth pitch: 32 pitch
• Tooth face width: 7mm, length 14.5mm
• Shaft: 5mm
• Diameter: 22.2mm

Comments

• 0.8 module is the same as 32 standard pitch
• FITS:
• Arrma 1:10 4x4 Bigrock 3S BLX
• Arrma 1:10 4x4 Bigrock V3 3S BLX
• Arrma 1:10 4x4 Granite 3S BLX
• Arrma 1:10 4X4 Kraton 4S BLX
• Arrma 1:10 4x4 OutCast 4S BLX
• Arrma 1:10 4x4 Senton 3S BLX
