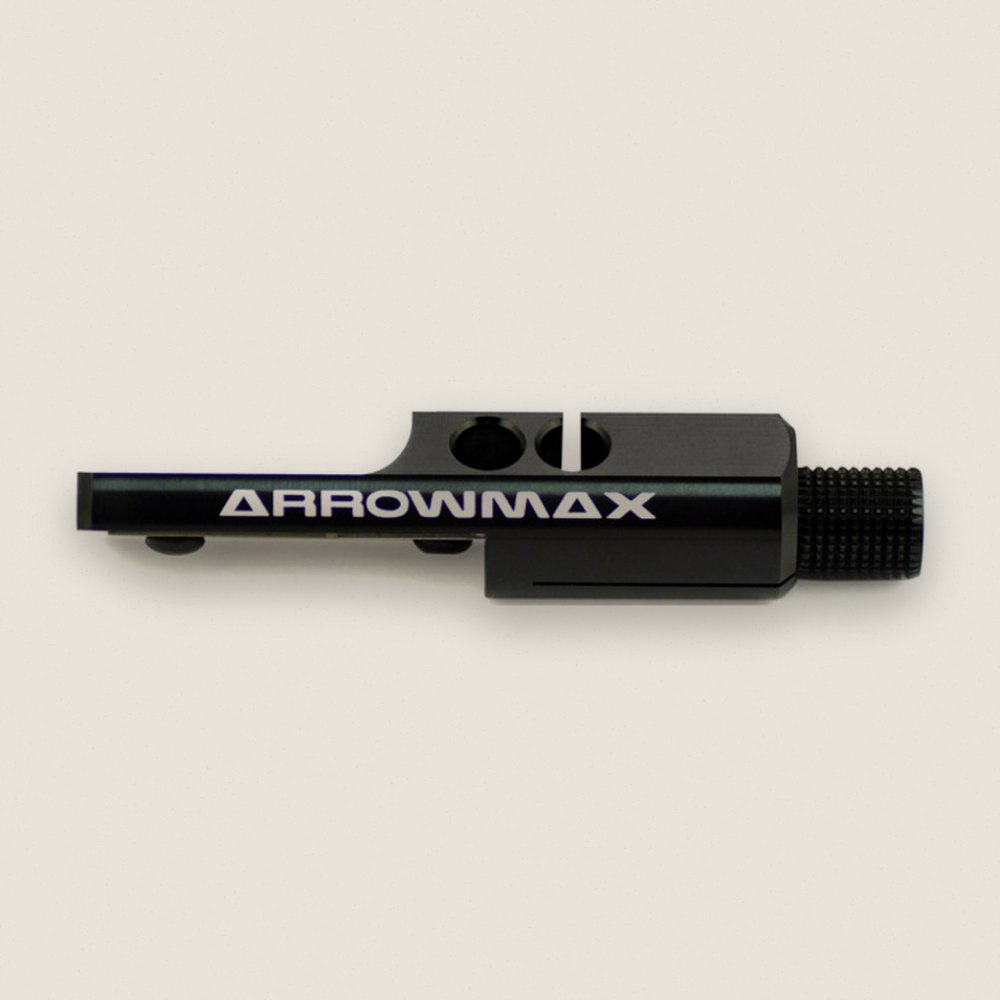

1. Set the trimmer on the first body post. Pick the 6mm or 10mm length by how you orient the tool. 2. Turn the knurled screw counterclockwise until it comes out. Insert your cutter knife or scalpel. Turn the screw clockwise until the blade hits the block at the end of the slot. 3. Lift off the cut top of the post, trimmer included. Repeat on the other posts. FINAL CUT: Seat the trimmer's stud hole on the post. Turn it about 360 degrees under light pressure for a 1mm chamfer. If the chamfer isn't right, adjust the blade gap to the aluminum body edge. It should be 0.2 to 0.5mm. Result: smooth, chamfered body posts.
