STE250Steel Spur Gear (50t 32p)(Orange) - TRA
Hot Racing Gears - Spurs
$20.99
In stock
30-day returns · Secure checkout by Stripe · We accept Visa, Mastercard, American Express, Discover, Apple Pay, Google Pay and Link
Whippy checked a few minutes ago:
it's in stock.
- Lock it in
About this part

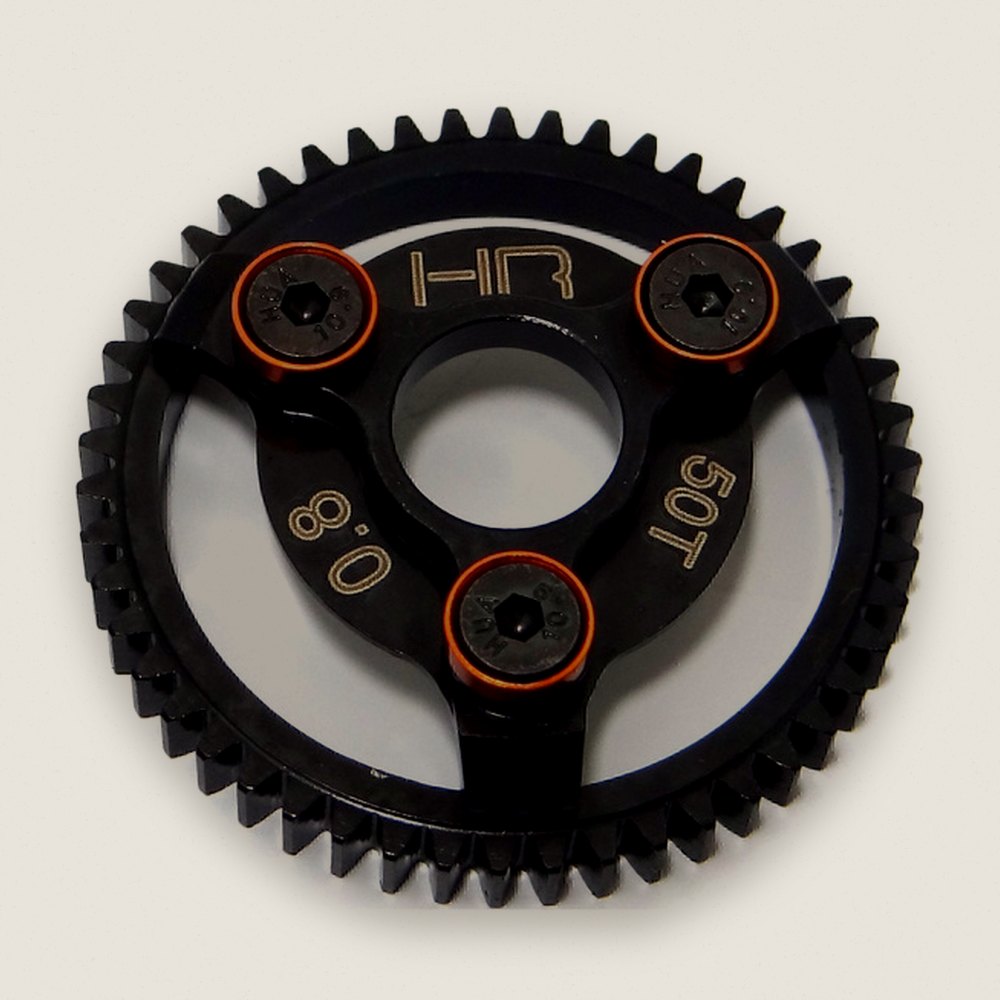

Hot Racing light weight hardened steel 50 tooth, 32 pitch (0.8 Mod) spur gear for the 1/10 TRA Bandit, Rustler, 2WD Slash, 2WD Stampede, and Telluride vehicles
Features
- CNC machined and lightened hardened steel construction
- Replaces stock nylon spur gear
- Rugged 0.8 Module/32pitch teeth for total reliability on brushless power
- Black oxide coated gear for durability and corrosion resistance
- Orange anodized countersunk aluminum washers
- High strength hardware

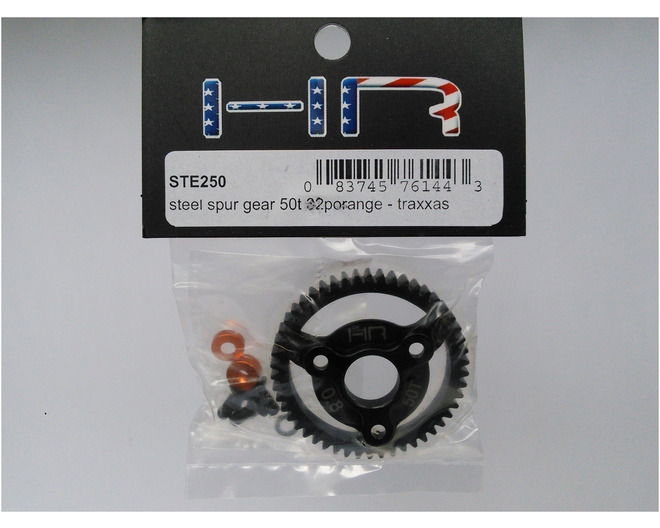

You will receive
- One (1) 50 tooth 32 pitch (0.8 Mod) spur gear
- Three (3) mounting screws
- Three (3) orange anodized countersunk washers
- Three (3) washers (use as needed underneath countersunk washers to prevent screw ends from protruding too far through spur backing plate)
Requirements
- Hardened .08 module (32 pitch) steel pinion gear
Specifications
- Number of Teeth: 50
- Gear Pitch: 32 pitch (0.8 module)
- Mounting Holes: 3
- Tooth Face width: ~5mm
Comments
- Must use with .08 module (32 pitch) pinion gear
- Consider using Hot Racing motor lock plate TE18L06 for secure motor mounting
- Motor should no way exceed 180F. ESC should not exceed 160F. Excessive temperatures will shorten the life of the motor and ESC.
