Adjustable Dampers (4), 21.5mm for Axial SCX30 - Hot Racing

About this part

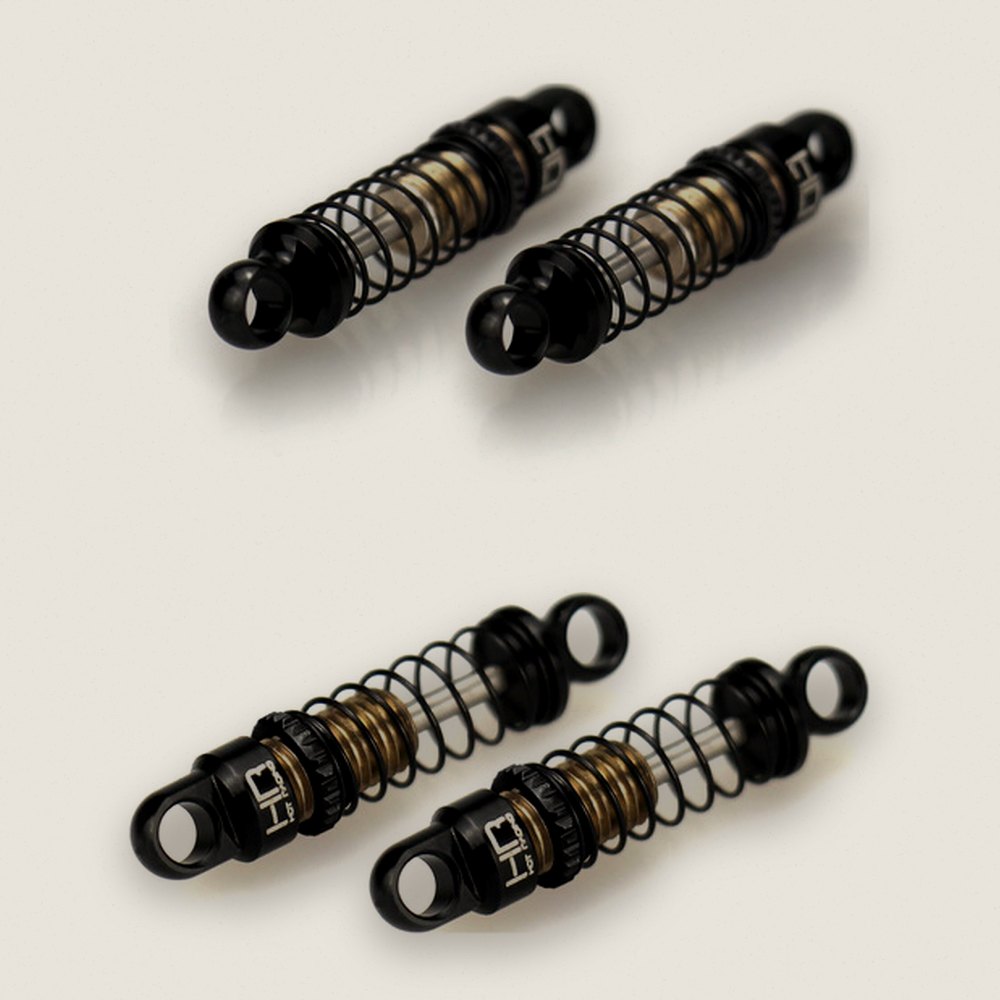

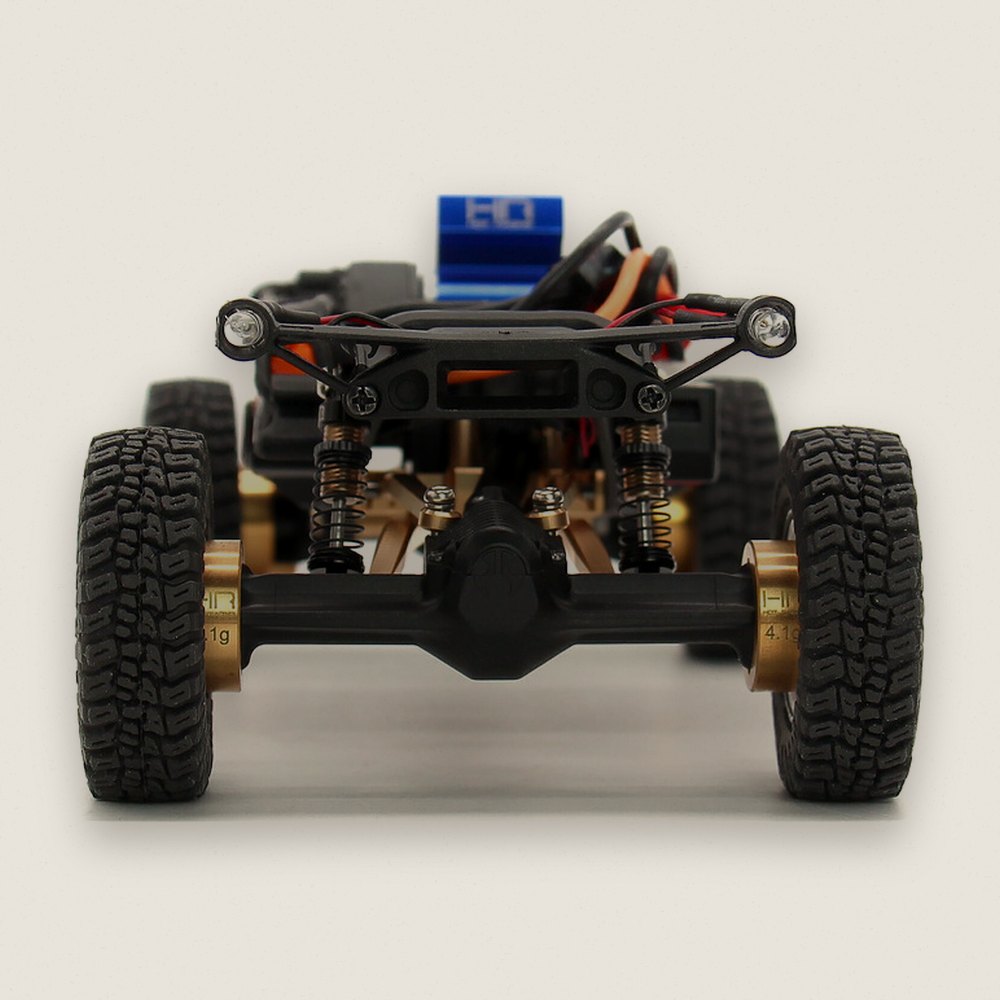

Hot Racing 21.5mm adjustable compression damper set for the Axial SCX30 and other custom rock crawler builds. Friction-type dampers, not oil-filled, with three spring rates in the box so you can tune them.

Features

• CNC machined T6 aluminum shock bodies
• Precision-machined stainless steel shock shaft for durability
• Friction damping, not oil-filled
• Three spring rates included
• Hard anodized for durability, corrosion resistance and good looks

You will receive

• Four (4) assembled shocks
• Four (4) silver springs (soft, 11T)
• Four (4) black springs (medium, 10T)
• Four (4) gold springs (firm, 9T)

Requirements

• Installation on vehicle required
• SPL10G08 recommended for smoother action

Specifications

• Extended center-to-center length: 21.5mm
• Compressed center-to-center length: 16.5mm
• Overall length: 25.5mm
• Body diameter: 3.85mm
• Shaft diameter: 1.5mm

Comments

• When swapping springs, remove the cap and spring adjuster first. That step keeps the install smooth.
• Do not try to remove the shock end for this process.
