Heavy-Duty Oil Dampers (4), 22mm for SCX30 - Hot Racing

About this part

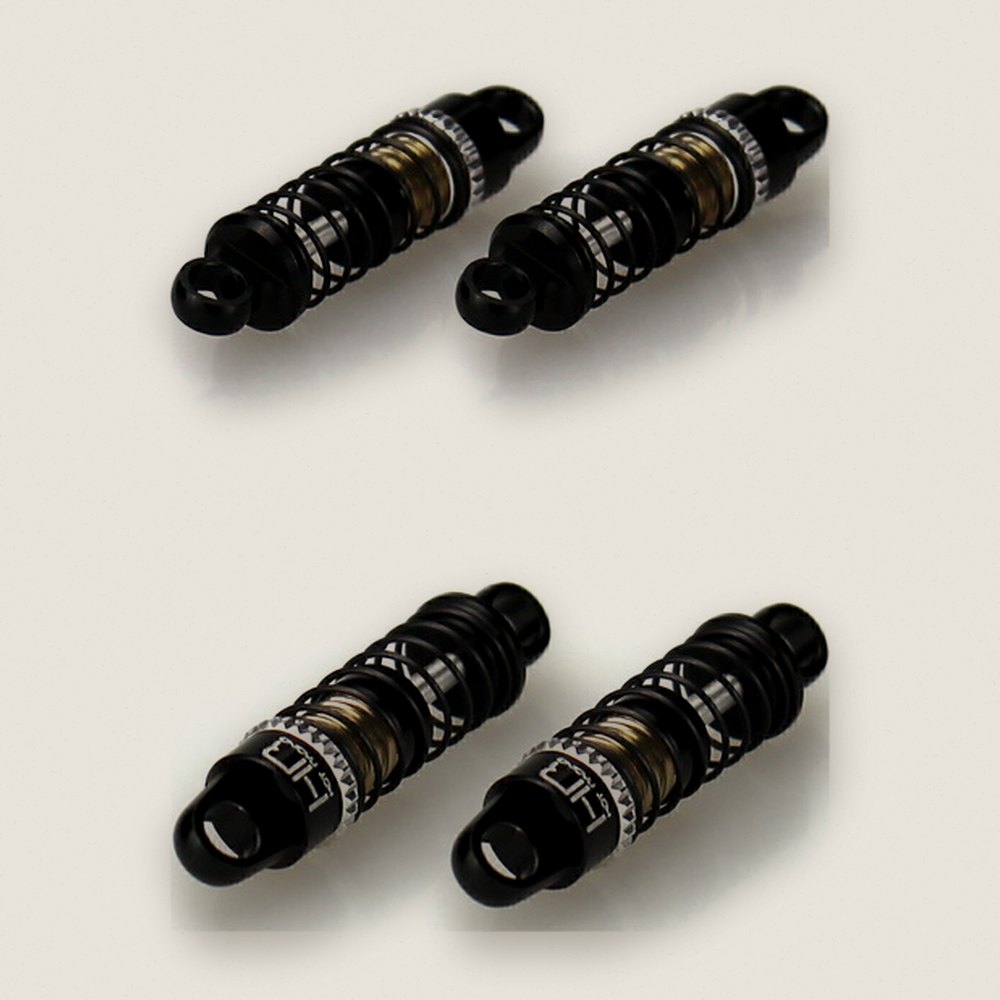

Hot Racing 22mm adjustable HD compression damper set for heavy custom SCX30 rock crawler builds. Oil-filled for real damping action, with three HD spring rates included.

Features

• CNC machined T6 aluminum shock bodies
• Precision-machined 1.5mm stainless steel HD shock shaft for durability
• Oil-filled for real damping action
• Three HD spring rates included

You will receive

• Four (4) assembled shocks
• Four (4) silver springs (medium, 0.3)
• Four (4) black springs (firm, 0.35)
• Four (4) gold springs (extra firm, 4.0)

Requirements

• Installation on vehicle required
• Silicone shock oil of your choice

Specifications

• Extended center-to-center length: 22mm
• Compressed center-to-center length: 17mm
• Overall length: 26mm
• Body diameter: 3.85mm
• Shaft diameter: 1.5mm

Comments

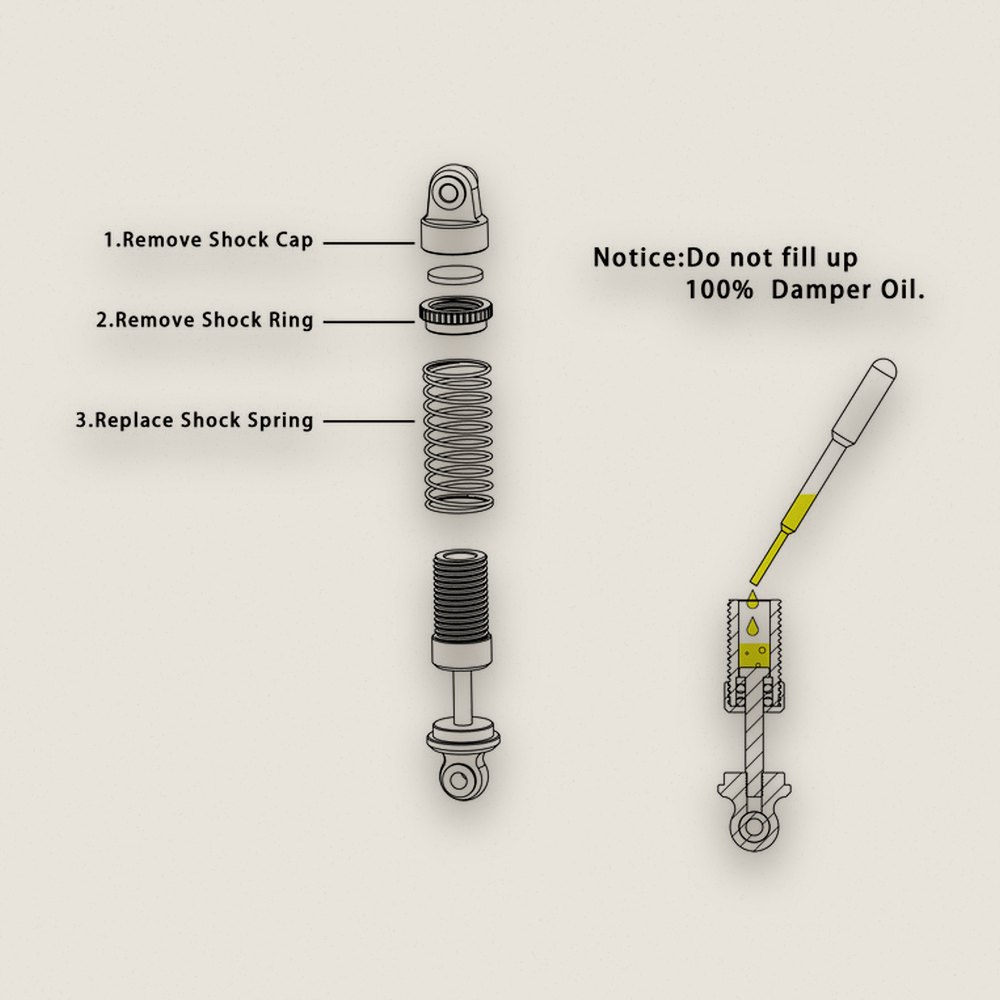

• A mini RC emulsion shock depends on a steady mix of oil and air for smooth damping. Fill with quality silicone oil, then loosen the cap to push out the extra oil while the shaft is half compressed.
• Repeatability is the whole game. Use the half-shaft rule: hold the shaft at its midpoint while you tighten the cap, so there is enough air to make up for the shaft entering the body.
• With consistency, the air and oil mix on their own.
