Home / Hot Racing / Drive-train: gearbox and gears / XMX11X06

Differential Carrier Housing, Aluminum, for TRA - Hot Racing
XMX11X06

Differential Carrier Housing, Aluminum, for TRA - Hot Racing

Hot Racing Drive-train: gearbox and gears
$33.99
In stock
Added ✓

30-day returns · Secure checkout by Stripe · We accept Visa, Mastercard, American Express, Discover, Apple Pay, Google Pay and Link

Whippy
Whippy checked a few minutes ago:
it's in stock.
- Lock it in

About this part

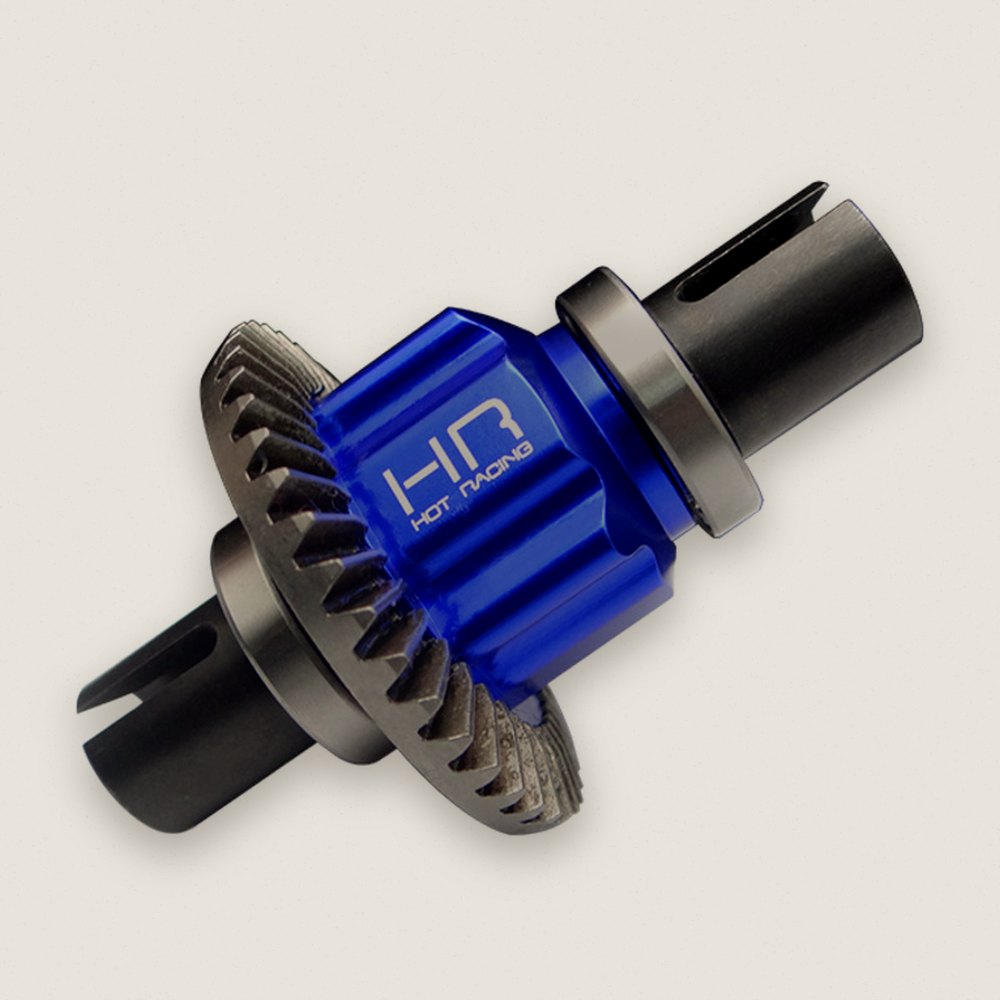

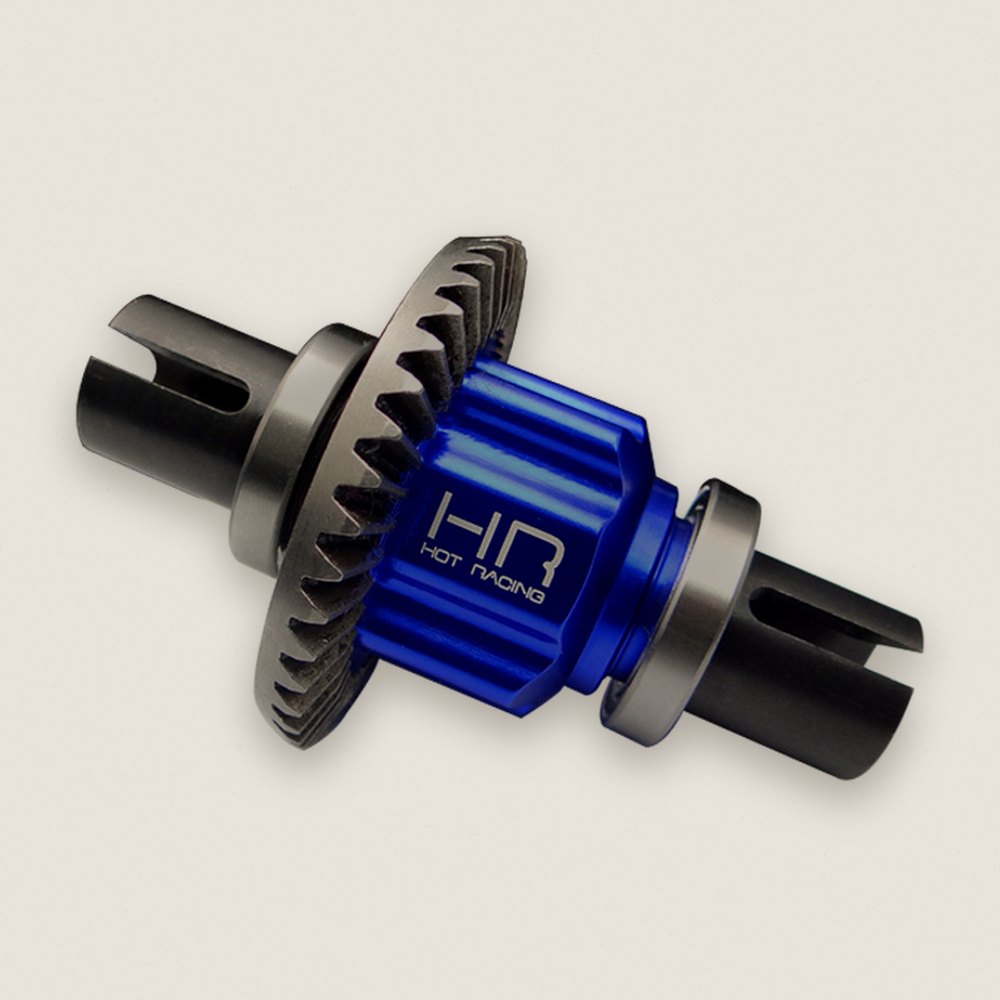

Hot Racing aluminum diff carrier housing for the front, rear and center diff on TRA 6S and 8S rigs. Ditch the plastic and bolt up something that holds.

Features

  • CNC machined aluminum
  • Blue anodized with laser etched lettering
  • Fits the front, rear and center diff

You will receive

  • One (1) aluminum diff case
  • Four (4) M3x10mm button head cap screws

Requirements

  • Spider gear shaft and spacers (TRA7783), spider gear (TRA7782), and stock gaskets from (TRA7781)
  • Removable blue threadlock on ring gear screws
  • Silicone diff lube
  • Tighten ring gear screws in a star pattern
  • Light grease on ring and pinion gears per TRA recommendations

Specifications

  • Length: ~31.7mm, diameter: ~36.7mm
  • Bearing race: 17mm
  • Weight: 14g

Notes

  • Replaces the TRA plastic carrier housing from TRA 7781 (and 7781x). Your seals get reused.

Fits

Traxxas Pro Scale 2WD Sand CarTraxxas X-MaxxTraxxas X-Maxx 8STraxxas XRT 8S

Replaces stock part

Traxxas #7781
