Straight Axle, Laydown Servo for Tamiya Clod Buster - Hot Racing

About this part

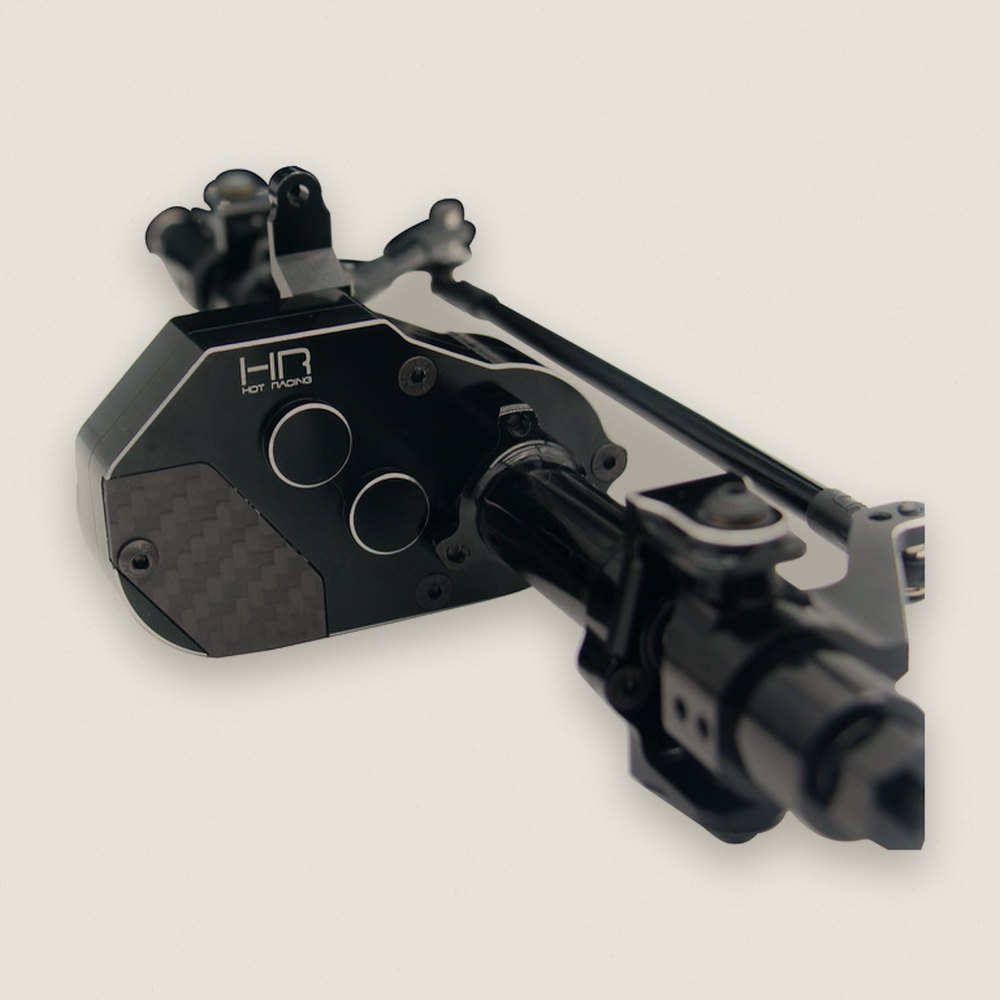

Hot Racing laydown servo axle for the Tamiya Clod Buster or your own custom R/C builds. This is a full on-board power axle, so read the specs and requirements before you commit. CNC machined 6061-T6 aluminum in black. Nitride hardened steel gears in 0.8 mod (32P), with 10.85:1 internal reduction on top of the pinion and 31T spur reduction.

Features

• CNC machined 6061-T6 aluminum, anodized black
• Laydown servo mount on straight axle
• Nitride hardened steel gears, 0.8 mod (32P) gear update
• 10.85:1 internal gear reduction, in addition to the pinion and 31T spur reduction
• Compact gear case for a low center of gravity and more ground clearance
• New graphite gear box cover, #45 steel axles with 12mm hex hubs
• Beefy 155mm wide axle tube
• Full ball bearing transmission
• Aluminum servo, shock and linkage mounts
• Supports 8T to 17T 32 pitch (0.8 mod) pinion gears

You will receive

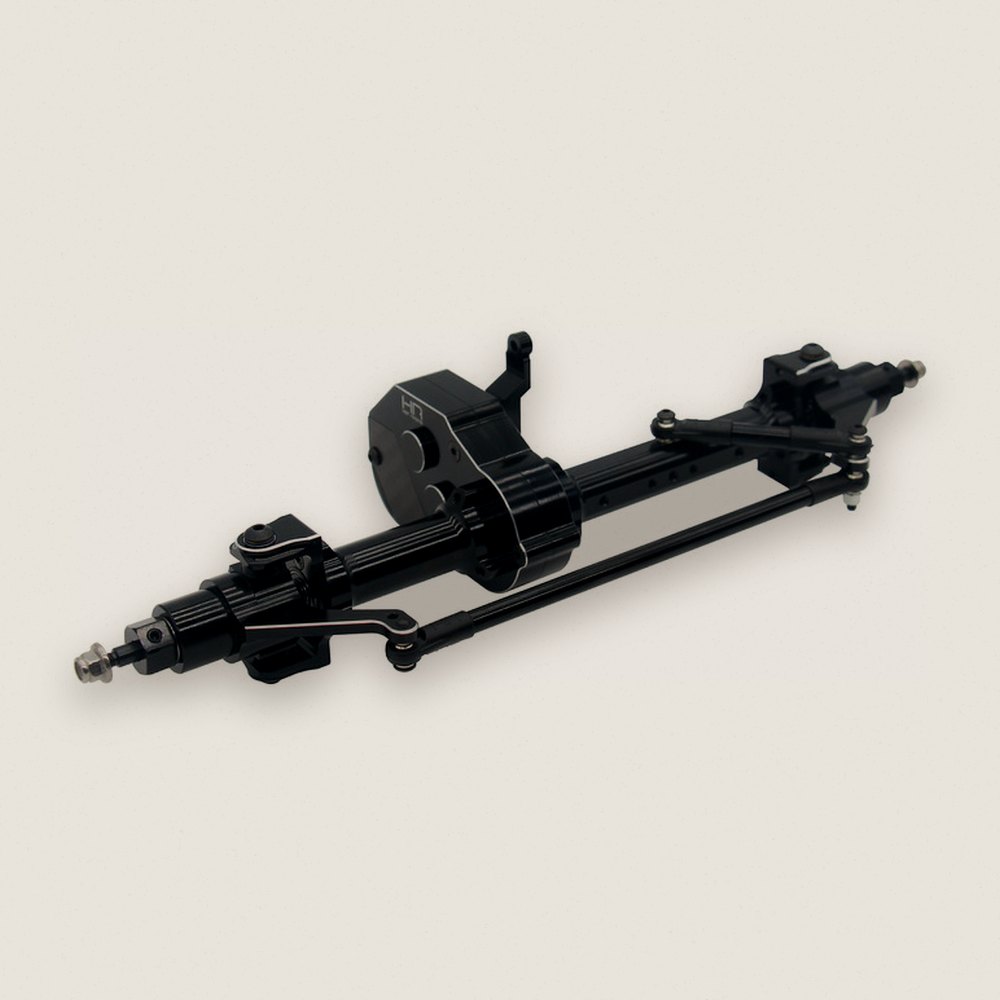

• One assembled OB power axle with servo mount, bearings, steel gears, steering tie rod knuckle, steel axles and 12mm wheel hexes

Specifications

• Wheel mounting surface to wheel mounting surface: ~250mm

Requirements

• Expert model building skills
• Needs a linked suspension. NOT compatible with the factory radius arm (ladder b

Fits
