Drive Shaft, Metal CV Splined, 1:10, for Maxx - Hot Racing

About this part

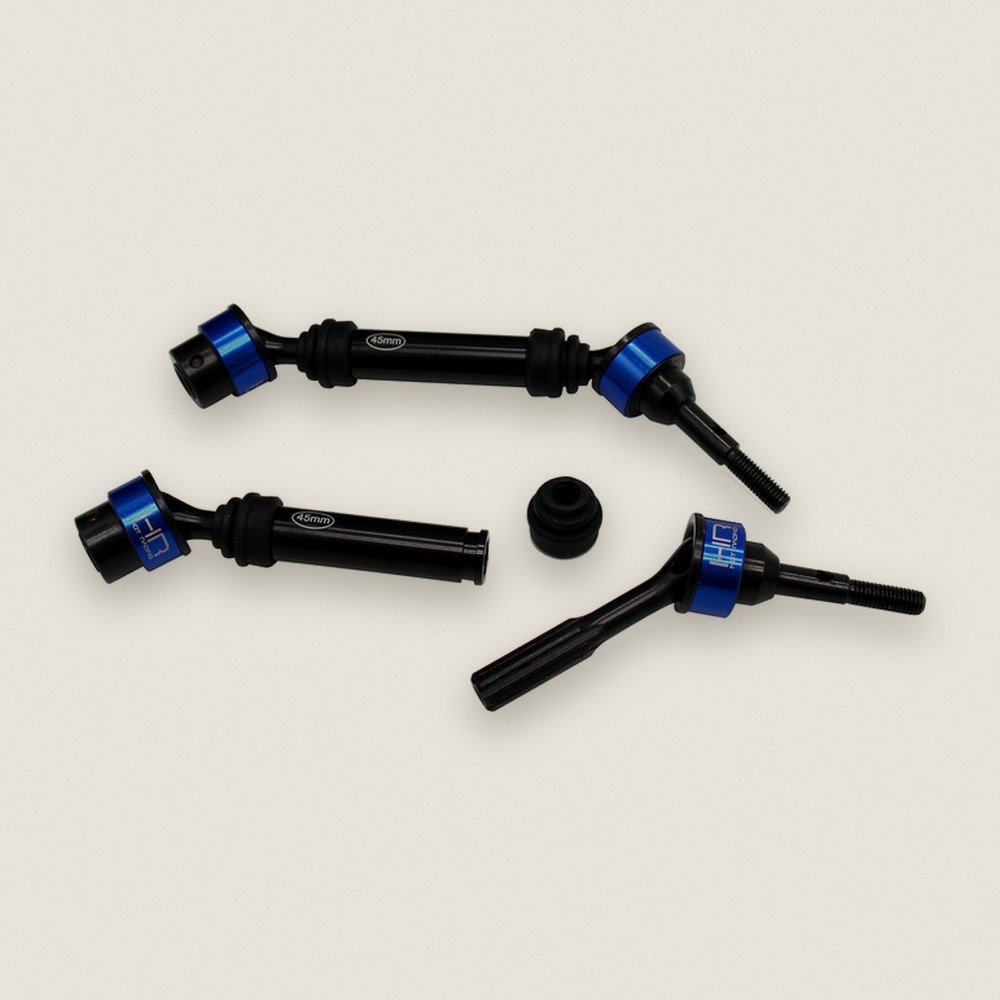

Heavy-duty splined star-drive CVD axle kit from Hot Racing for the front or rear of the 1/10 TRA Maxx. These take a beating and replace the factory axles.

Features

• CNC machined #45 hardened carbon steel CVs, drive hub, male slider spline and stub axle
• CNC machined aluminum slider tube
• Blue anodized aluminum pin capture rings with rubber o-rings to stop movement
• Rubber dust cover boots

You will receive

• Two splined axle assemblies

Requirements

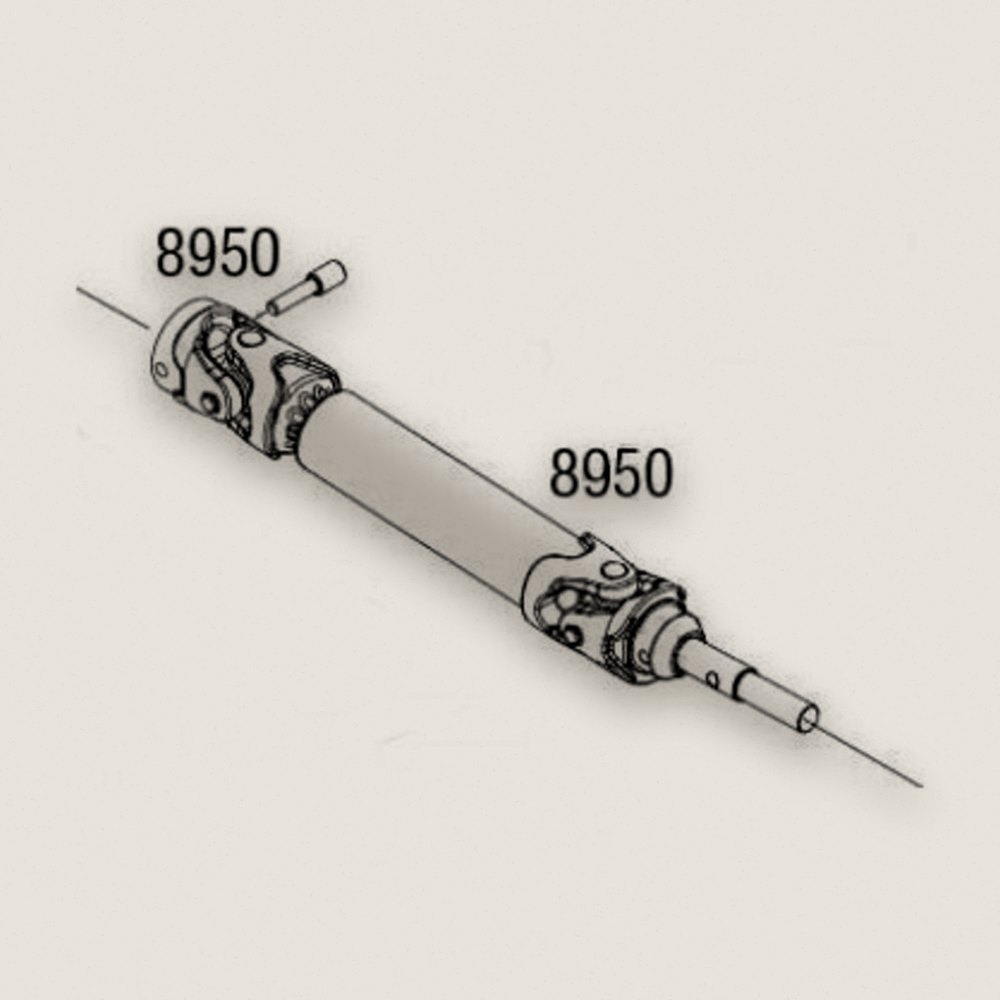

• Installs into the drive assembly
• Reuse the stock drive pin and set screw
• Grease the CV joint and shaft spline
• Medium threadlocker on screws threading into metal

Specifications

• Collapsed length, overall: 140mm
• Extended length, overall (zero shaft engagement): 156mm
• Collapsed length, wheel pin to outdrive pin: 118mm
• Extended length, wheel pin to outdrive pin (zero shaft engagement): 132mm

Notes

• Listed for the TRA Wide Maxx kit. Swap the center drive tube to 65mm (SLD65T), or order MXX288RCL06.
• TRA8995.
• FITS:
• Traxxas Maxx, Traxxas Maxx Slash
