MXX288RCL06

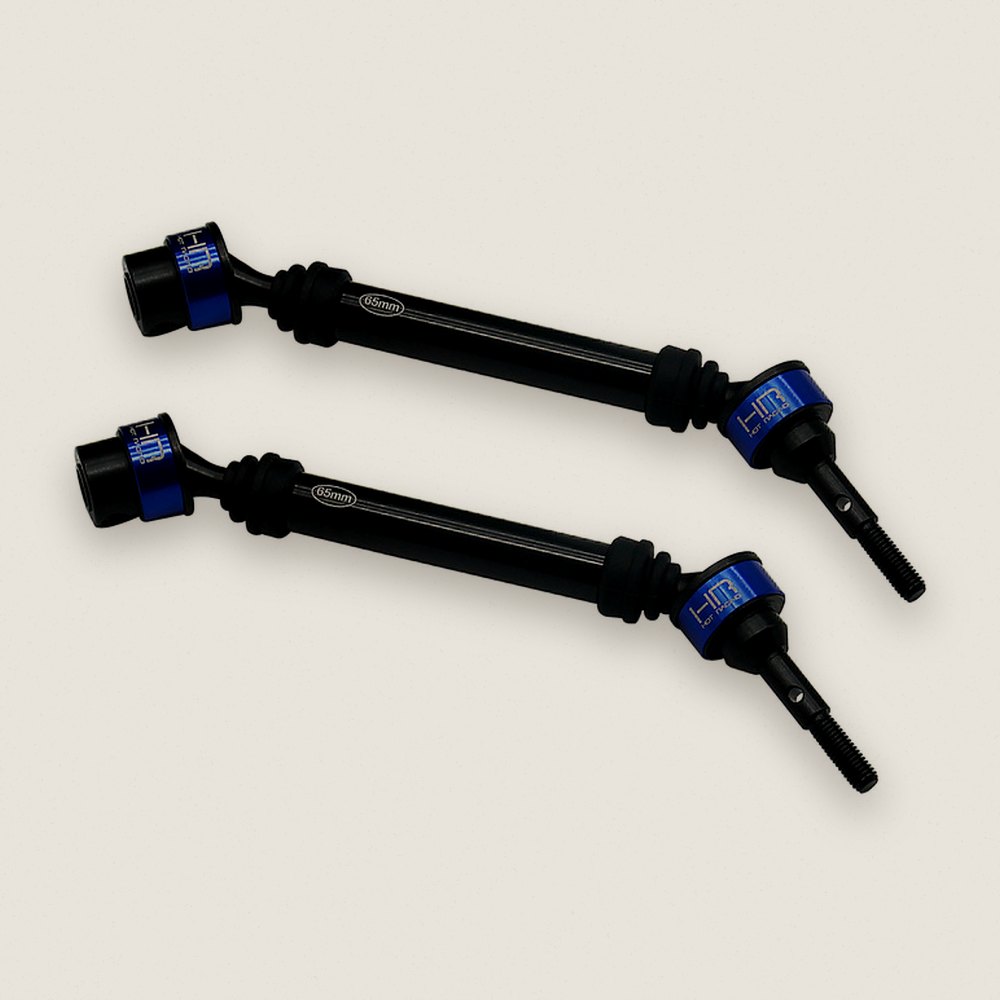

Drive Shaft, Metal CV Splined, 1:10 Wide, for Maxx - Hot Racing

Hot Racing Drive-train: shafts and axles
$68.88
In stock
Added ✓

30-day returns · Secure checkout by Stripe · We accept Visa, Mastercard, American Express, Discover, Apple Pay, Google Pay and Link

Whippy
Whippy checked a few minutes ago:
it's in stock.
- Lock it in

About this part

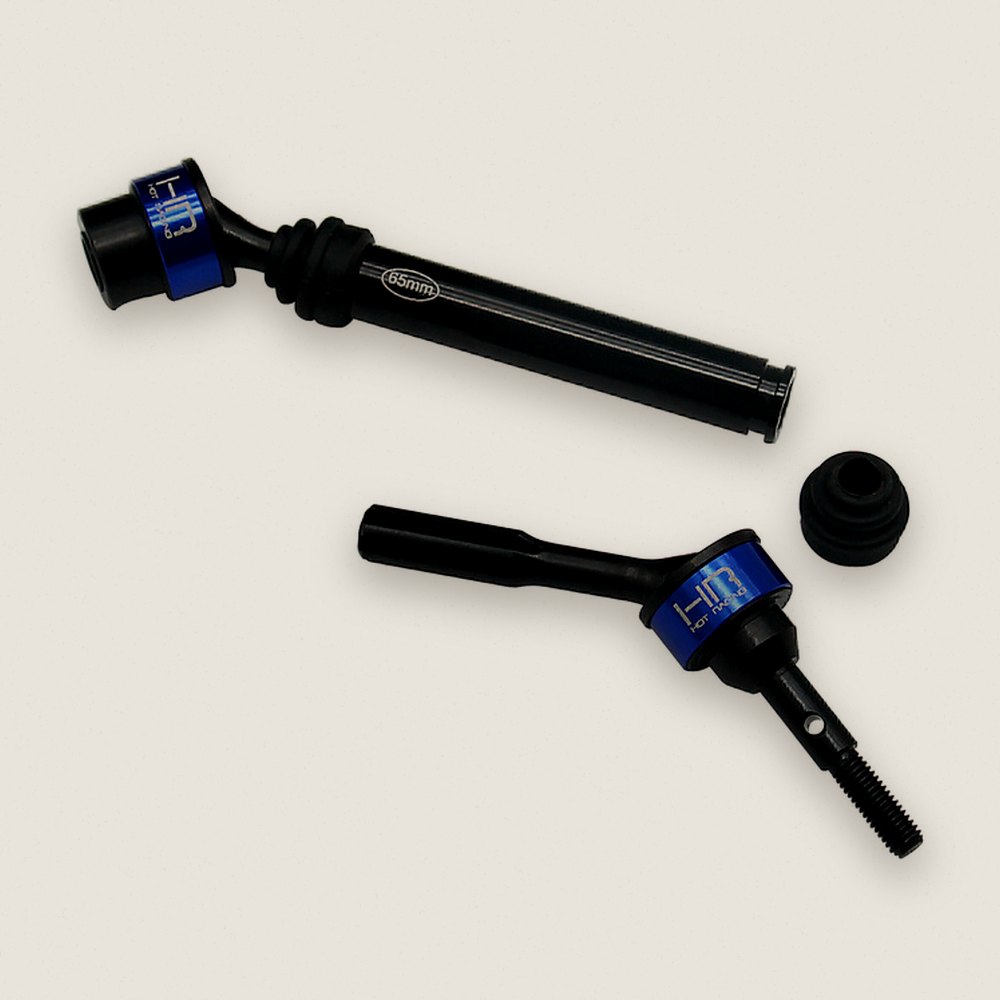

Heavy-duty splined star-drive CVD axle kit from Hot Racing for the front or rear of the new wide Maxx. It replaces the factory driveshaft axles with CNC steel that holds up.

Features

  • CNC machined #45 hardened carbon steel CVs, drive hub, male slider spline and stub axle
  • CNC machined aluminum slider tube
  • Blue anodized aluminum pin capture rings with rubber o-rings to stop movement
  • Rubber dust cover boots

You will receive

  • Two splined axle assemblies

Requirements

  • Installs into the drive assembly
  • Reuse the stock drive pin and set screw
  • Grease the CV joint and shaft spline
  • Medium threadlocker on screws threading into metal

Specifications

  • Collapsed length, overall: 160mm
  • Extended length, overall (zero shaft engagement): 176mm
  • Collapsed length, wheel pin to outdrive pin: 138mm
  • Extended length, wheel pin to outdrive pin (zero shaft engagement): 152mm

Notes

  • Listed for the TRA Wide Maxx kit. TRA8995.
  • For the older narrow Maxx, order MXX288RC06.
  • FITS:
  • Traxxas Maxx
