SCP37VMCenter Driveshaft, Steel 107-142mm (Medium) - Hot Racing
Hot Racing Drive-train: shafts and axles
$20.99
In stock
30-day returns · Secure checkout by Stripe · We accept Visa, Mastercard, American Express, Discover, Apple Pay, Google Pay and Link
Whippy checked a few minutes ago:
it's in stock.
- Lock it in
About this part

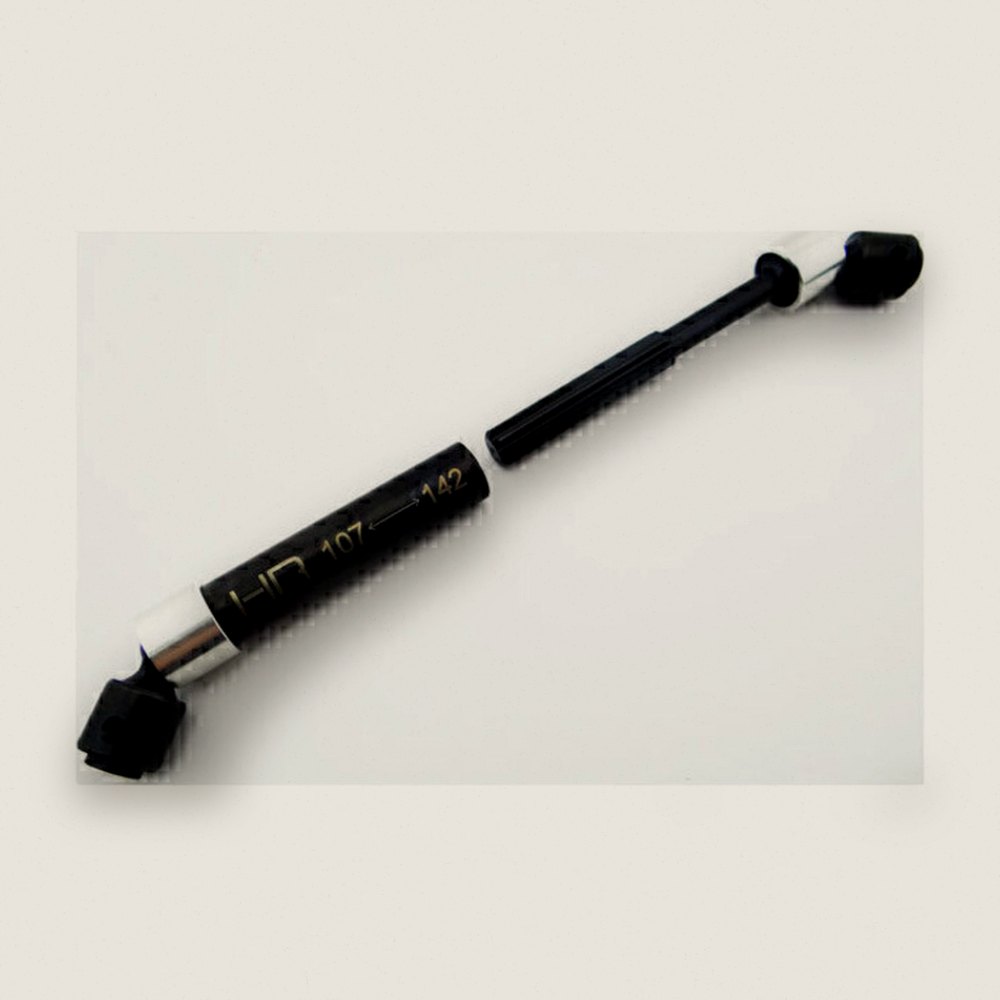

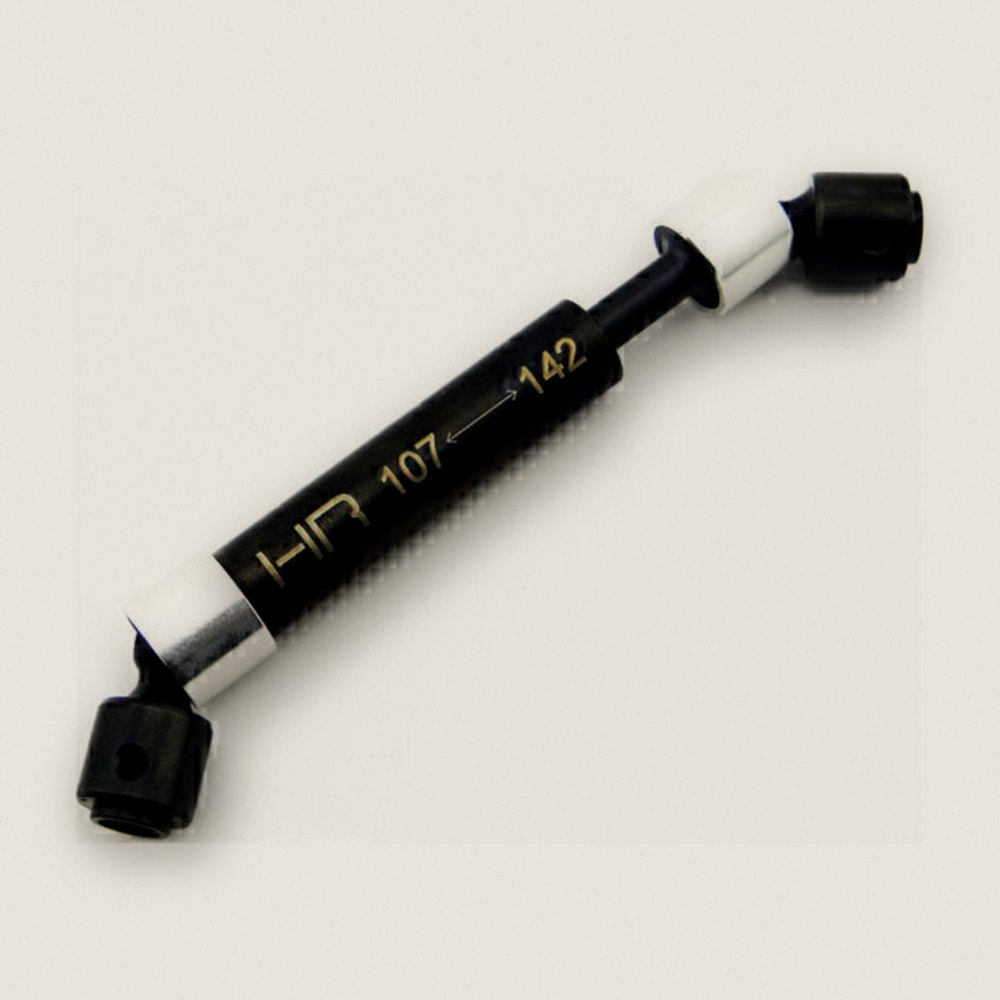

Heavy duty upgrade for the center driveshaft. This is the medium 107-142mm version, a splined star shaft from Hot Racing for the AX10, RR10 front, SCX10, Wraith, Tamiya CC01, Tamiya CR01 front, Red Cat Gen8, or a custom rig. Check the length specs before you buy.
Features
- Heavy duty CNC machined hardened carbon steel
- Aluminum pin capture rings with rubber o-rings to stop movement
- No CV pin setscrew needed
- Fits 5mm output shafts
- Black finished steel
You will receive
- One center CVD drive shaft assembly
Requirements
- Four M3 setscrews or two screw pins (such as Axial AXA0175) to attach to transmission and differentials
- Grease the CV joint and spline
- Removable locking adhesive on screws threading into metal
Specifications
- Collapsed length end to end: 104mm
- Operating length: 107-142mm end to end (97-132mm hub pin to hub pin)
- Travel: 35mm
- Spline engagement at 142mm: 7mm
- M3 threaded holes for vehicle attachment
- REPLACEMENT PARTS:
- RCV11MF (slider shaft), RCV11DH (drive hub), RCV11P (CV rebuild kit)
