Hex Hub Adapters, 12mm to 17mm with 6mm Offset - Hot Racing

About this part

Hot Racing billet aluminum hub adapters that take 12mm hex hubs up to 17mm hex wheels. You get a 6mm-per-side width bump for a wider, more planted stance. CNC machined and built to last.

Features

• CNC machined solid billet aluminum
• 12mm hex to 17mm hex conversion
• 6mm offset extension per side
• Adapters anodized silver, wheel nuts anodized black
• Wheel nuts have an internal o-ring to keep them in position, even when things get rough

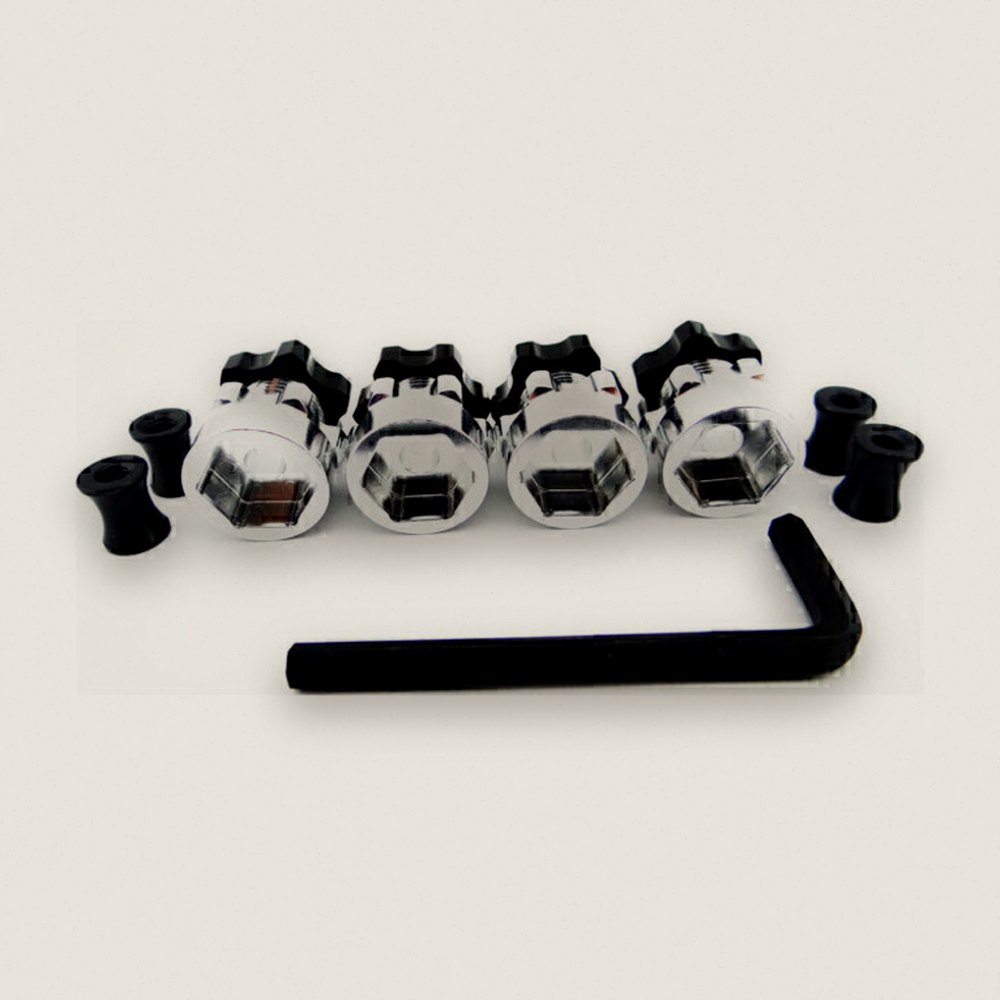

You will receive

• Four (4) wheel adapters
• Four (4) 17mm wheel nuts
• Four (4) M4 axle hub nuts

Requirements

• A removable-type locking adhesive on the axle nuts is recommended
• The vehicle needs a hex at least 5mm thick, or the adapter may bind against the hub

Specifications

• Total length: 20mm
• Max axle diameter: 5mm
• Axle thread: M4
• Hex depth: 5mm

Comments

• Spare M4 axle hub nuts: Hot Racing RSSLF117X
• O-rings are 11 x 1mm
• FITS:
• Associated ProLite 4x4
• Losi 1:10 TEN-T Nitro Truggy RTR
• Traxxas Hoss 3S
• Traxxas LCG Slash 4x4 or Rally
• Traxxas Rustler 4x4
• Traxxas Rustler 4x4 EHD
